PLC Control Automatic H Type Wire Mesh Welding Machine

Product Description

Features:
- This machine is multi head type structure, can weld multi-spot for one time.
- Control system: Microcomputer control, can store 15 sets welding schedule
- Machine body of thick steel sheet, not easy to deformation, good rigidity.
- Water cooling transformer: There is cooling water in inside, using full copper alloy core not aluminum, reducing impedance, improving the utilization of power
- Fast solenoid valve, making welding speed faster
- Cylinder adopt high accurate, anti-friction hard duralumin, without rust, lower friction, lower noise thereby reducing the weld spatter.

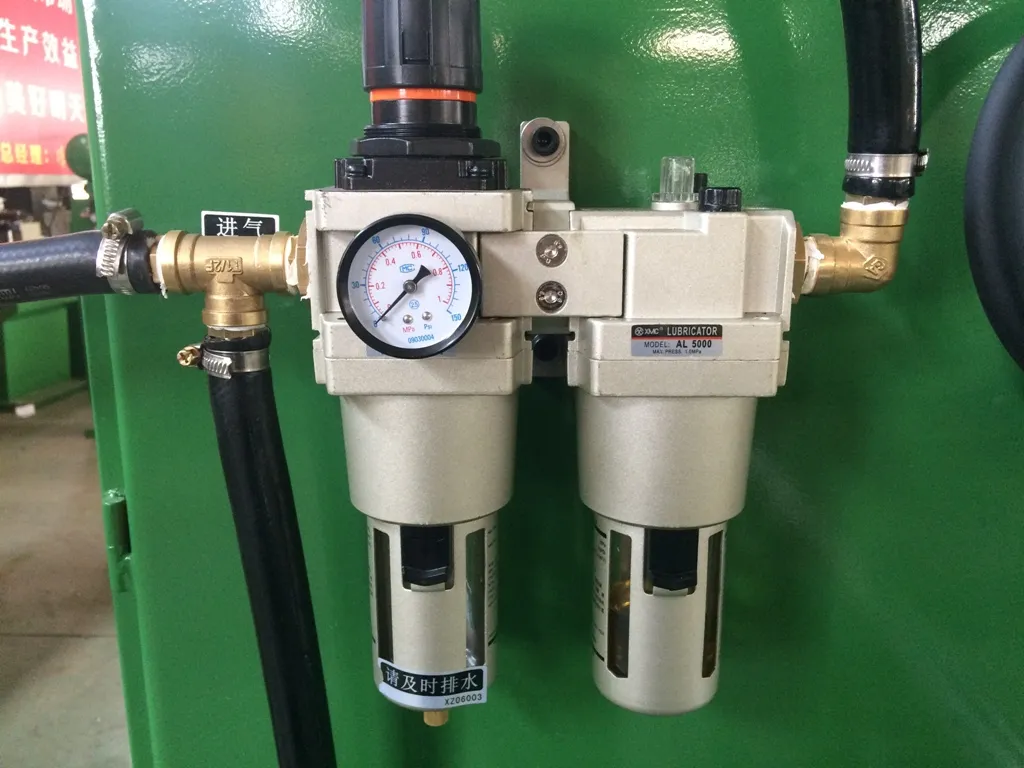

- Compressed air system: Equipment is installed air processor which is used for clean the compressed air, and with muffler to reduce the noise. Also it is with compressed air tank to stabilize the air pressure.
- Cooling water system: There are transformers cooling, up electrode cooling, lower electrode cooling and other copper block cooling.
Be widely used in wire mesh, storage rack, protecting fence etc.

Product Parameters

Model Item		DNW3-2X100-C	DNW3-2X150-C	DNW3-2X200-C
Rated capacity	kVA	2X100	2X150	2X200
Rated primary vtg.	V	380	380	380
Rated frequency	Hz	50	50	50
Max short circuit current	KA	30	36	42
Duty cycle	%	20	20	20
Max forging pressure	N	5315	5315	5315
Upper electrode stroke	mm	60	60	60
Lower electrode stroke	mm	40	40	40
Cooling water flux	L/min	6	6	6
Width of upper electrode	mm	90	90	90
Max welding width (C) " C" is stand for " Max welding width"	mm	800-4000	800-4000	800-4000

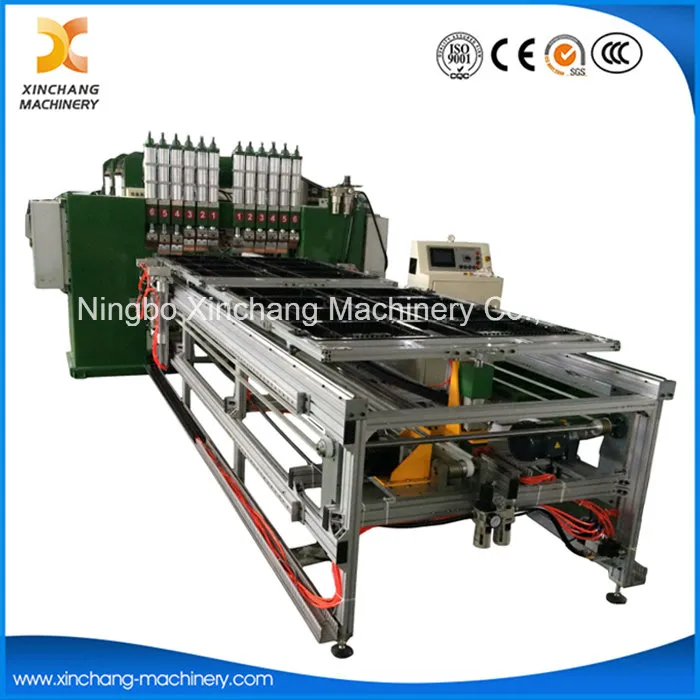

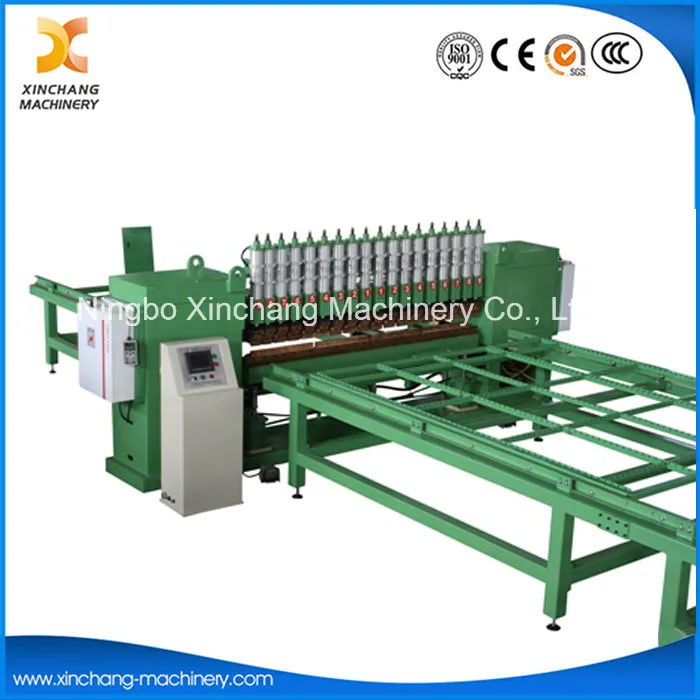

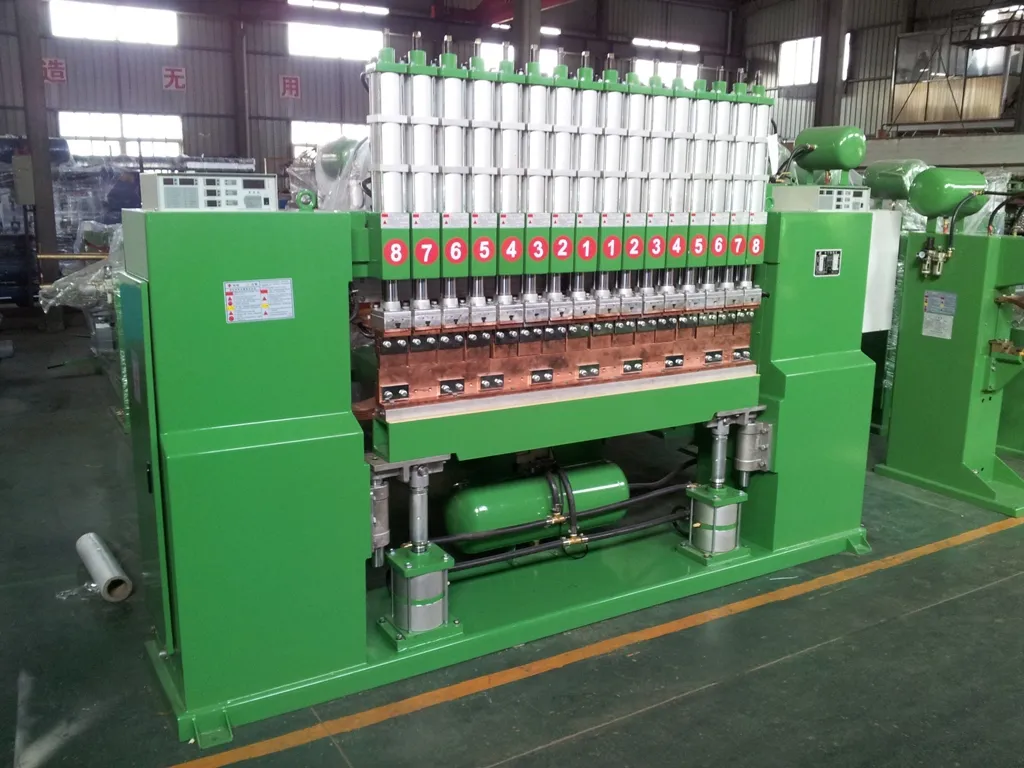

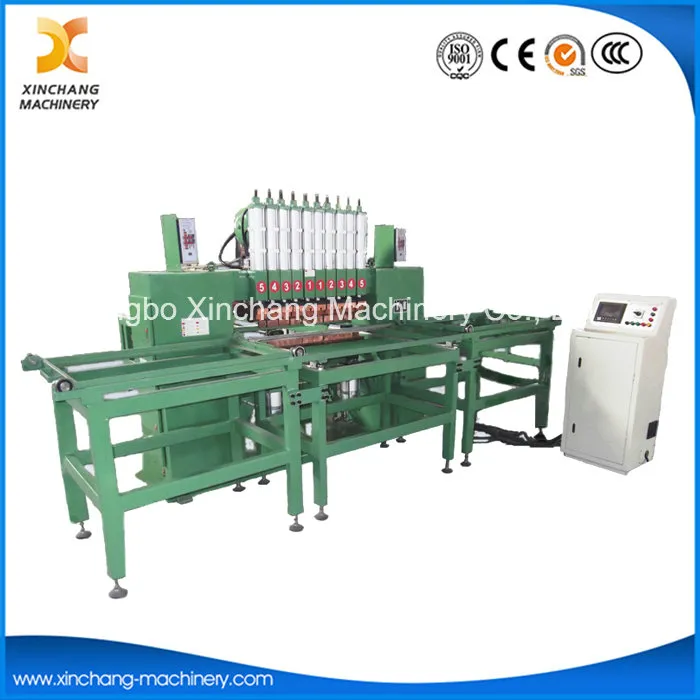

Detailed Photos

PLC Control Automatic H Type Wire Mesh Welding Machine
