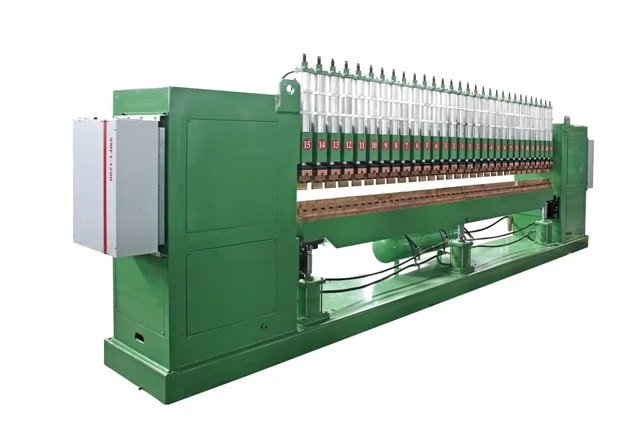

1. This machine is multi head type structure, can weld multi-spot for one time, serving as a reliable Multi-Head Wire Mesh Welder to streamline batch processing.
2. Control system: Microcomputer control, can store 15 sets welding schedule which can be adjust independently.
3. Users can set by himself action sequence, number and welding schedule of cylinder to match diverse Wire Mesh Spot Welding demands.
4. Large screen display intuitive and clear.
5. Data set and adjusted by touch switch, easy and fast.
6. Machine body of thick steel sheet, not easy to deformation, good rigidity.
7. Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up.
8. Fast solenoid valve, making welding speed faster, thereby the productivity is higher.

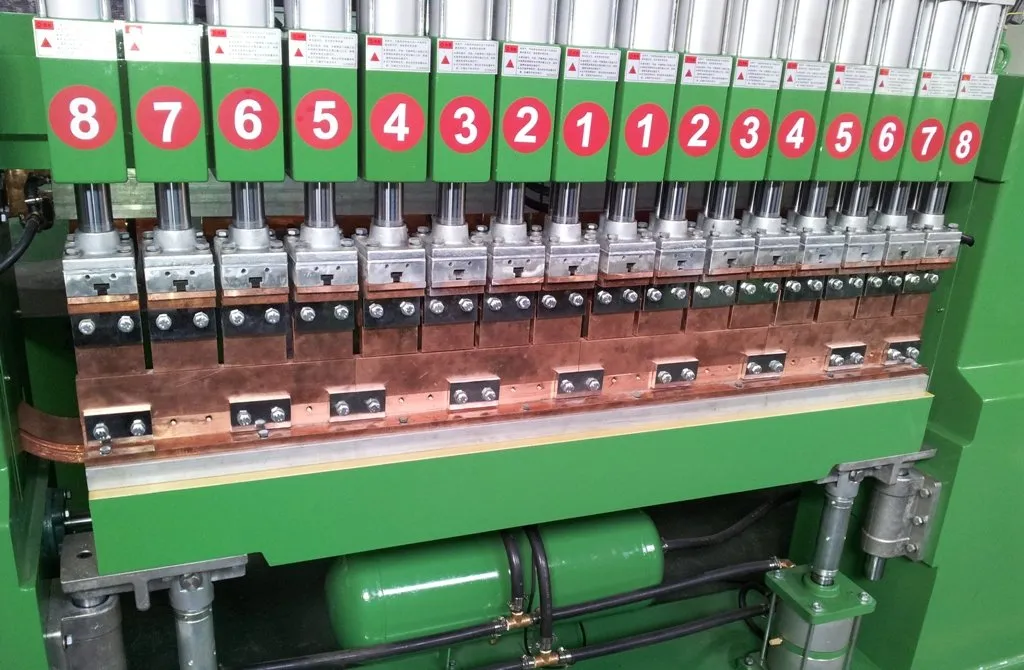

9. Cylinder adopt high accurate, anti-friction hard material, which is duralumin,.
10. Our machining equipment is more advance, fine workmanship.
11. Lower loose weld rate, less welding dregs.
12. It is easy to operate machine. Performance of machine is more steady, can be used 24 hours, lifetime 15 years, empowering stable operation of the complete Wire Mesh Spot Welding System.
13. Electrode: With CuCrZr materials, very anti-friction. By means of water cooling, longer service life.

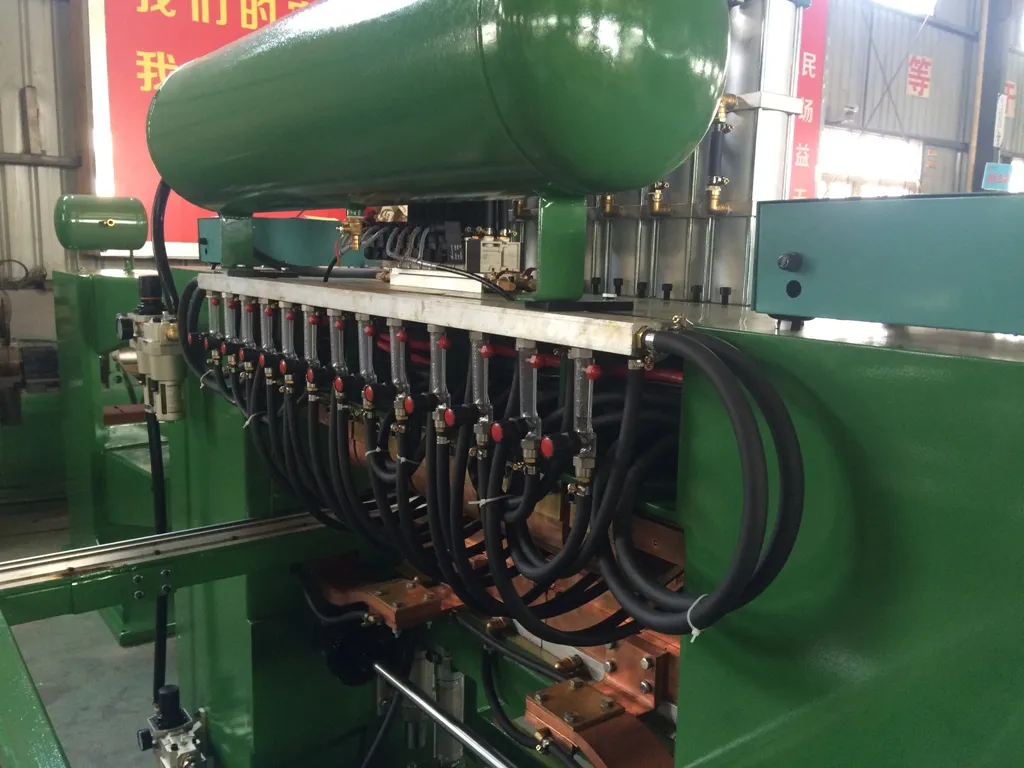

14. Compressed air system: Equipment is installed air processor , and with muffler to reduce the noise,with compressed air tank.
15. Cooling water system: There are transformers cooling, up electrode cooling, lower electrode cooling and other copper block cooling.
Function: Be widely used in wire mesh, storage rack, protecting fence etc.
Model
Item | DNW3-2x100-C | DNW3-2x150-C | DNW3-2x200-C |
| Rated capacity | KVA | 2x100 | 2x150 | 2x200 |
| Rated primary vtg. | V | 380 | 380 | 380 |
| Rated frequency | HZ | 50 | 50 | 50 |
| Max short circuit current | KA | 30 | 36 | 42 |
| Duty cycle | % | 20 | 20 | 20 |
| Max forging pressure | N | 5315 | 5315 | 5315 |
| Upper electrode stroke | mm | 60 | 60 | 60 |
| Lower electrode stroke | mm | 40 | 40 | 40 |
| Cooling water flux | L/min | 6 | 6 | 6 |
| Width of upper electrode | mm | 90 | 90 | 90 |
| Max welding width (C) " C" is stand for " Max welding width" | mm | 800-4000 | 800-4000 | 800-4000 |
