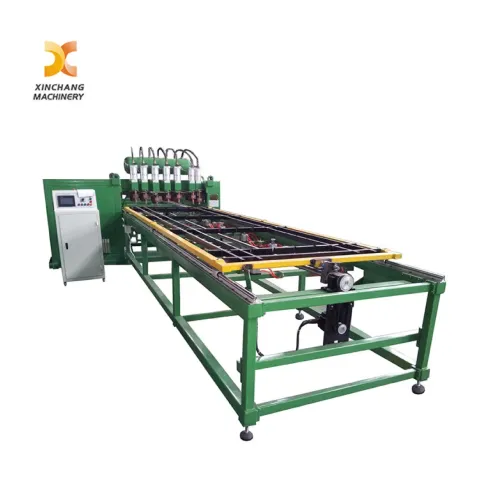

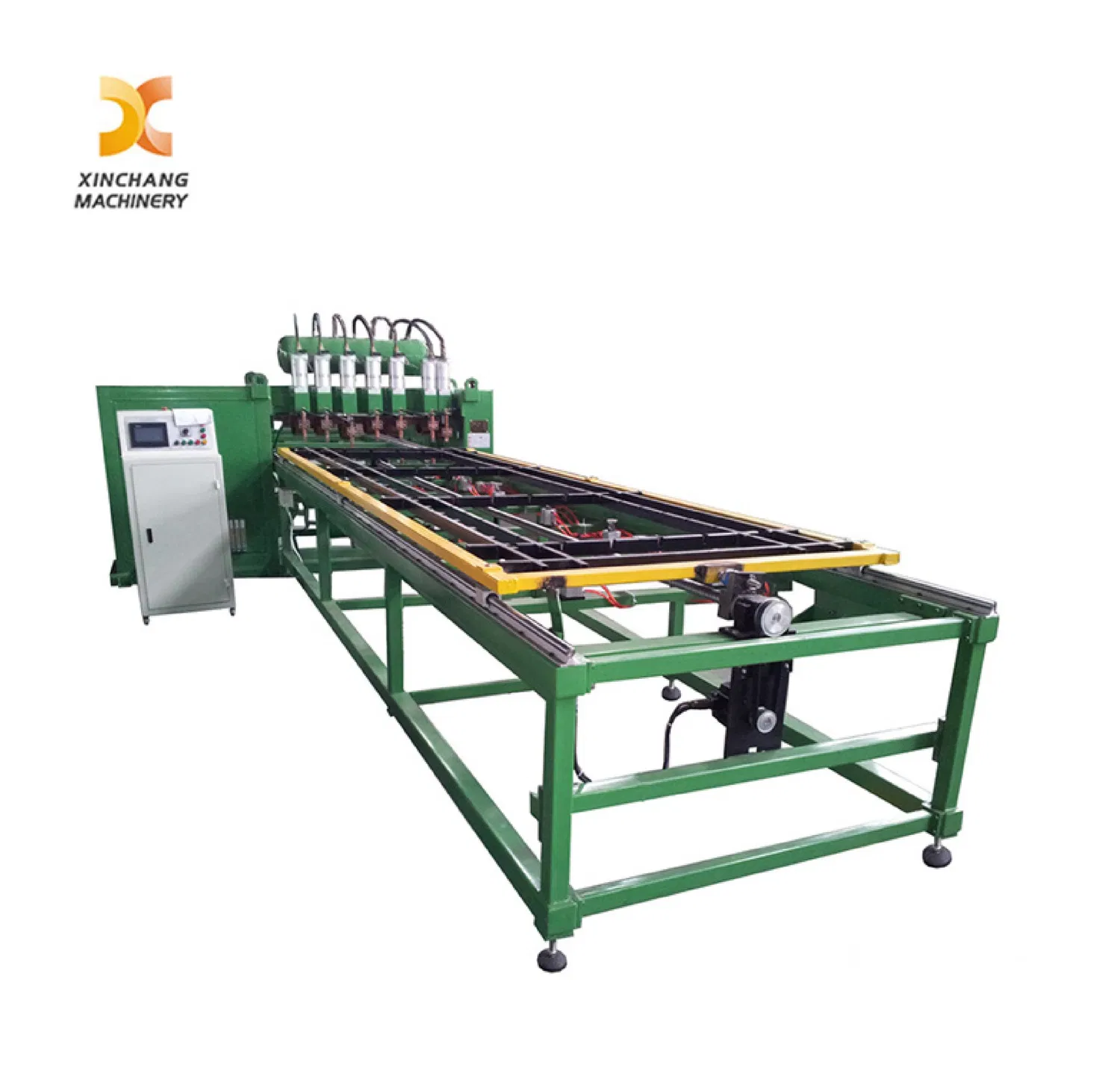

Name: Multi-Spot Wire Mesh Water Cooling Press Welder
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 5.0 (7 reviews)

Multi-Spot Wire Mesh Water Cooling Press Welder

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Style: Horizontal

Type: Press Welder

Welding Current: AC or DC

Power: 380V/50Hz

Max Forging Pressure: 5315n

Welding Width: 800-4000mm

Transport Package: at Customer's Requrest

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

HS Code: 85152190

Production Capacity: 500sets/Year

Customization: Available

Cooling Way: Water Cooling

Control: Semi-Automatic

Supply Ability & Additional Information

Supply Ability: 500sets/Year

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Features
Product Parameters
Detailed Photos
Company Profile
FAQ

Basic Info.

Style

Horizontal

Type

Press Welder

Welding Current

AC or DC

Power

380V/50Hz

Max Forging Pressure

5315n

Welding Width

800-4000mm

Transport Package

at Customer's Requrest

Specification

export standard

Trademark

xinchang

Origin

Ningbo China

HS Code

85152190

Production Capacity

500sets/Year

Product Description

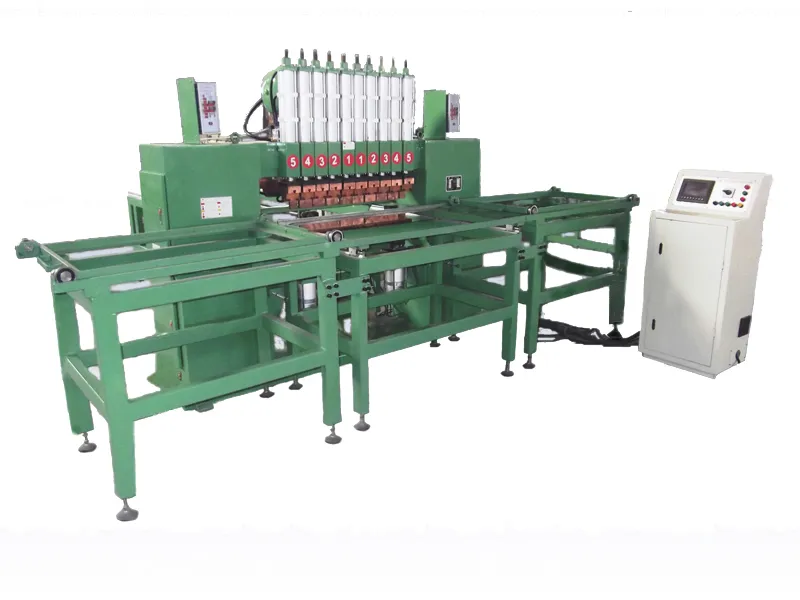

^{_{1, This machine is multi head type structure, can weld multi-spot for one time.
2, Control system: Microcomputer control, can store 15 sets welding schedule which can be adjust independently.
3, Users can set by himself action sequence, number and welding schedule of cylinder.
4, Large screen display intuitive and clear.
5, Data set and adjusted by touch switch, easy and fast.
6, Machine body of thick steel sheet, not easy to deformation, good rigidity.
7, Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up.
8, Fast solenoid valve, making welding speed faster.
9, Cylinder adopt high accurate, anti-friction hard material, which is duralumin.
10, Our machining equipment is more advance, fine workmanship.
11, Lower loose weld rate, less welding dregs.
12, It is easy to operate machine. Performance of machine is more steady, can be used 24 hours, lifetime 15 years.
13, Electrode: With CuCrZr materials, very anti-friction. By means of water cooling, longer service life.
14, Compressed air system: Equipment is installed air processor which is used for clean the compressed air, and with muffler to reduce the noise. Also it is with compressed air tank to stabilize the air pressure.
15, Cooling water system: There are transformers cooling, up electrode cooling, lower electrode cooling and other copper block cooling.

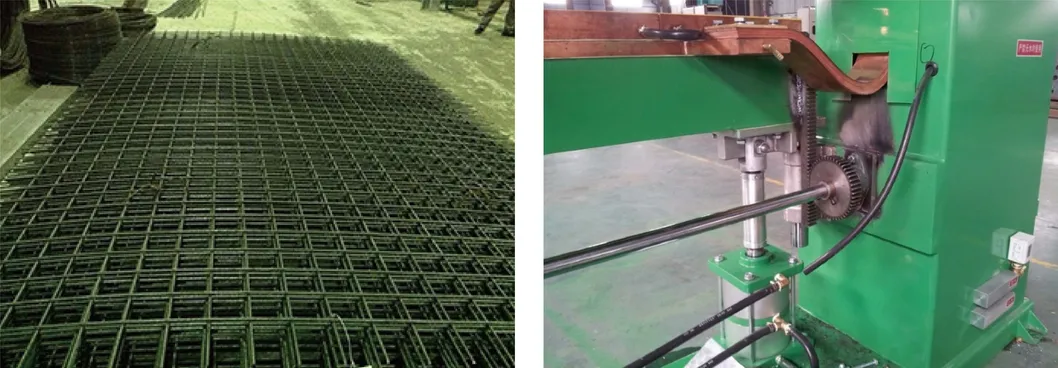

Be widely used in wire mesh, storage rack, protecting fence etc.}}

Model Item		DNW3-2x100-C	DNW3-2x150-C	DNW3-2x200-C
Rated capacity	KVA	2x100	2x150	2x200
Rated primary vtg.	V	380	380	380
Rated frequency	HZ	50	50	50
Max short circuit current	KA	30	36	42
Duty cycle	%	20	20	20
Max forging pressure	N	5315	5315	5315
Upper electrode stroke	mm	60	60	60
Lower electrode stroke	mm	40	40	40
Cooling water flux	L/min	6	6	6
Width of upper electrode	mm	90	90	90
Max welding width (C) " C" is stand for " Max welding width"	mm	800-4000	800-4000	800-4000
