Name: High-Speed Wire Mesh Welding Machine
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.8 (44 reviews)

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

Product Attributes

Style: Fixed

Electrode Stroke: Vertical

Transmission: Pneumatic

Conductive Way: Both-Sided

Welding Spot Number: Multiple

Type: Universal

Welding Current: AC or DC

Certificates: ISO, CCC

Current: Alternating Current

Name: Multi Head Welding Machine

Transport Package: at Customer's Requrest

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

Production Capacity: 500sets/Year

Customization: Available

Control: Semi-Automatic

Cooling Way: Water Cooling

Supply Ability & Additional Information

Supply Ability: 500sets/Year

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Product Description
Product Parameters
Detailed Photos
Company Profile
FAQ

Basic Info.

Style

Fixed

Electrode Stroke

Vertical

Transmission

Pneumatic

Conductive Way

Both-Sided

Welding Spot Number

Multiple

Type

Universal

Welding Current

AC or DC

Certificates

ISO, CCC

Current

Alternating Current

Name

Multi Head Welding Machine

Transport Package

at Customer's Requrest

Specification

export standard

Trademark

xinchang

Origin

Ningbo China

Production Capacity

500sets/Year

Product Description

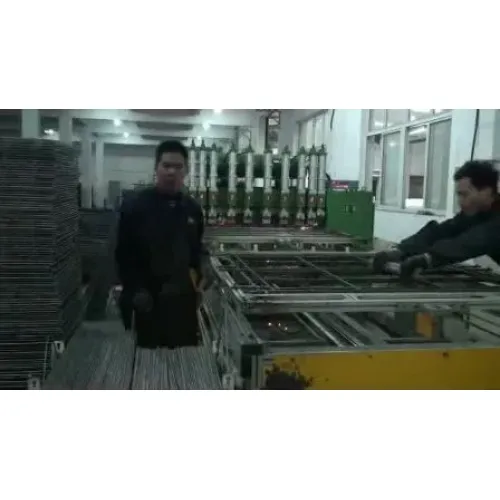

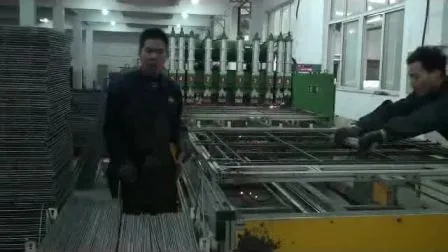

Multi-head Full Automatic High-speed Wire Mesh Welding Machine

Features:
- This machine is multi head type structure, can weld multi-spot for one time.
- Control system: Microcomputer control, can store 15 sets welding schedule which can be adjust independently, very easy to achieve one or more electrode welding parameters independently djusted so as to achieve welding requirements for different sizes, different shapes products.
- Users can set by himself action sequence, number and welding schedule of cylinder, to achieve the welding requirements on different products.
- Large screen display intuitive and clear.
- Data set and adjusted by touch switch, easy and fast.
- Machine body of thick steel sheet, not easy to deformation, good rigidity.
- Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core not aluminum, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
- Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
- Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
- Our machining equipment is more advance, fine workmanship, so welding machine's precision is higher.
- Lower loose weld rate, less welding dregs.
- It is easy to operate machine. Performance of machine is more steady, can be used 24 hours, lifetime 15 years.
- Electrode: With CuCrZr materials, very anti-friction. By means of water cooling, longer service life.
- Compressed air system: Equipment is installed air processor which is used for clean the compressed air, and with muffler to reduce the noise. Also it is with compressed air tank to stabilize the air pressure.
- Cooling water system: There are transformers cooling, up electrode cooling, lower electrode cooling and other copper block cooling. It come true the water distribution by flowmeter. Each flowmeter can be adjusted individually to make machine working normal, without damages

Be widely used in wire mesh, storage rack, protecting fence etc.

Model Item		DNW3-2x100-C	DNW3-2x150-C	DNW3-2x200-C
Rated capacity	KVA	2x100	2x150	2x200
Rated primary vtg.	V	380	380	380
Rated frequency	HZ	50	50	50
Max short circuit current	KA	30	36	42
Duty cycle	%	20	20	20
Max forging pressure	N	5315	5315	5315
Upper electrode stroke	mm	60	60	60
Lower electrode stroke	mm	40	40	40
Cooling water flux	L/min	6	6	6
Width of upper electrode	mm	90	90	90
Max welding width (C) " C" is stand for " Max welding width"	mm	800-4000	800-4000	800-4000

Multi-Head Full Automatic High-Speed Wire Mesh Welding Machine

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.

We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
Multi-Head Full Automatic High-Speed Wire Mesh Welding Machine

1.Q: What about your standard delivery date ?
A: Usually 30-60 working days. Our company provide just-in-time delivery

2.Q: How can you guarantee quality?
A: You could test samples before order,and we have professional QC and precise machining equipment; Always final Inspection before shipment;

3.Q: How long is the guarantee?
A: For one year after the custumer received the machine.

4.Q: What do we need to do if the machine fails?
A: In the guarantee time (1 year),we will send the spare parts to you for free,and provide the technical consultant for any time.

5.Q: Can I make my own design and logo on the product?
A: Yes, we do OEM.Welcome global partners.

6.Q: what is the packing mode?
A: wooden case or FCL with container.

7.Q: what is your after-sell service?
A: After-Sales
1) Training your workers how to install the machine, how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
