Name: Automatic Mechanical Multi-Head Circular Spot Welding Machine
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.5 (1 reviews)

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Style: Fixed

Electrode Stroke: Vertical

Electric Current: DC Shock Wave

Transmission: Pneumatic

Conductive Way: Both-Sided

Welding Spot Number: Multiple

Type: Spot Welders

Current: Direct Current

Application: Oil Filled Heater

Name: Automatic Seam Welding Machine

Key: Welding Machine

Transport Package: Wooden Case

Trademark: xinchang

Origin: Ningbo

Production Capacity: 20 Set / Month

Customization: Available

Control: Automatic

Cooling Way: Water Cooling

Supply Ability & Additional Information

Supply Ability: 20 Set / Month

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Product Description
Detailed Photos
Company Profile
FAQ

Basic Info.

Style

Fixed

Electrode Stroke

Vertical

Electric Current

DC Shock Wave

Transmission

Pneumatic

Conductive Way

Both-Sided

Welding Spot Number

Multiple

Type

Spot Welders

Current

Direct Current

Application

Oil Filled Heater

Name

Automatic Seam Welding Machine

Key

Welding Machine

Transport Package

Wooden Case

Trademark

xinchang

Origin

Ningbo

Production Capacity

20 Set / Month

Product Description

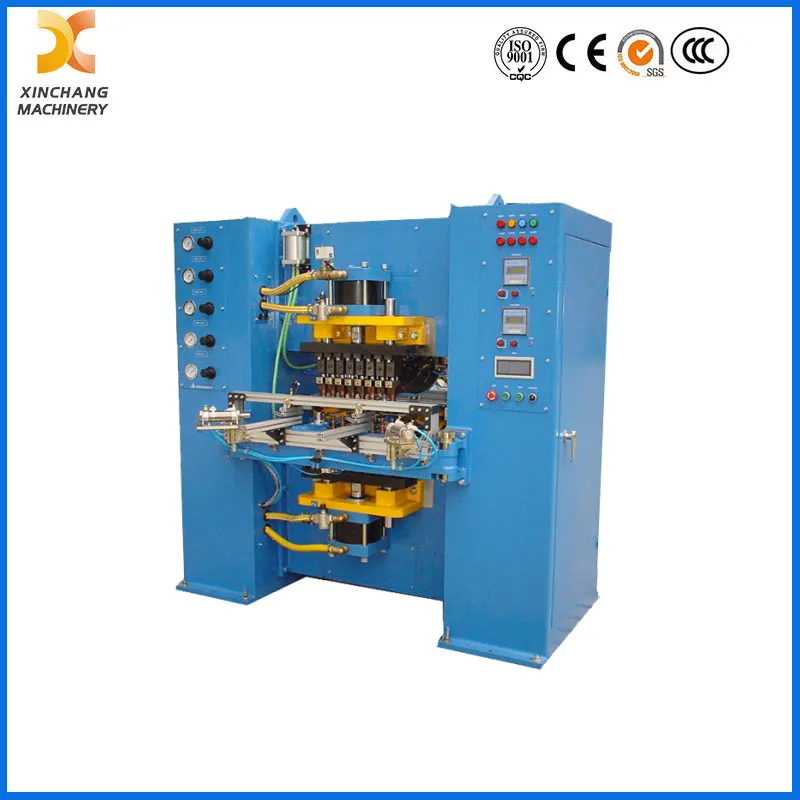

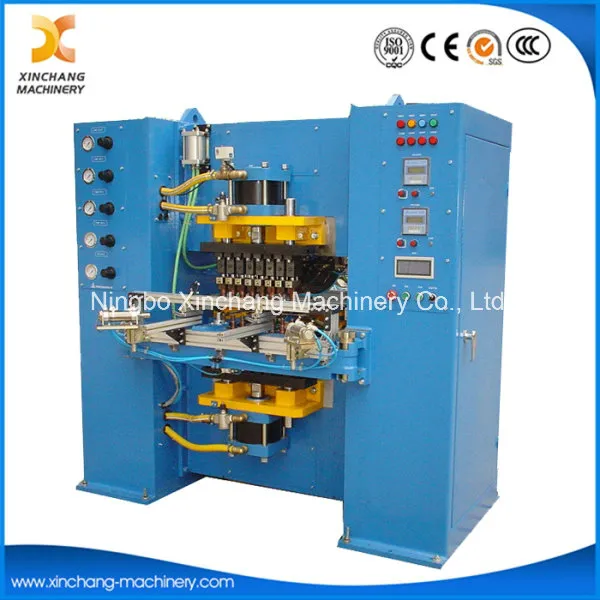

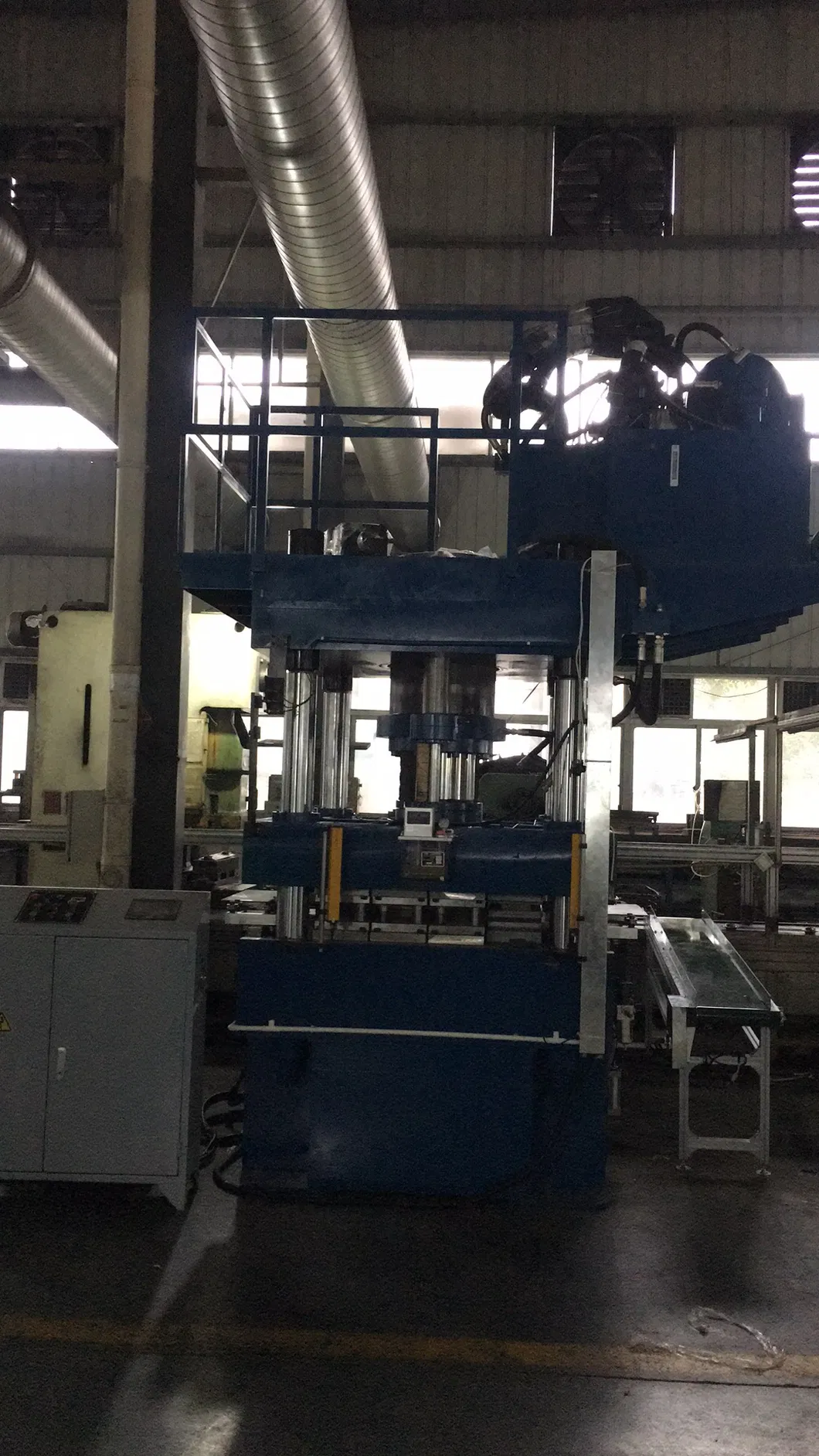

Automatic Mechanical Multi Head Circular Multiple Spot Welding Machine

Main Functions
The multiple spot welding machine for Oil filled heater is a resistance welding equipment for the welding of Oil filled heater, featuring reliable, efficient and cost-effective welding. It adopts the microcomputer control, uses the silicon controlled rectifier (SCR) as the phase switch, uses the high-performance elements, which ensures a stable welding quality, and overheating, air pressure, water pressure, operating errors and faults and other protective and warning functions are needed.
The multiple spot welding machine for Oil filled heater is composed of the mechanical unit, the pneumatic unit, the water cooling unit and the electrical unit.
The mechanical unit is the main unit of the equipment, which comprises the mainframe, the upper and lower welding heads, drive members, workpiece alignment members, unloading rack, transformers and other components.
The pneumatic unit is the air supply system of equipment action, which comprises the pneumatic FRL, pressure regulator, pressure switch, solenoid valve, flow limit valve, muffler, actuating cylinder, gas tank and other components. It mainly completes the movement of each actuating cylinder in the drive apparatus.
The water cooling system is the cooling system for welding and operating process. It is responsible for the cooling of SCR, welding transformer and welding head. The water cooling system mainly comprises the water pressure switch, water pipes, water filter, water diverter, water flow display and other components.
The electrical unit is the electrical apparatus of the equipment. It comprises the control cabinet, electrical parts, welding transformer and other components. It mainly achieves the power supply, detection, control and welding for the apparatus. The control unit acts as the command center of the equipment, which comprises PLC, touch screen, servo drive, welding controller and other main components.
Main Models and Specifications

NO.	Model Name	Material (Thickness: 0.55mm)	Dimensions/LWT (mm)	Weight/kg	Option (Tick "√")
	Oil filled heater	Cold-rolled sheet SPCE	59014540.3 (at the oil pocket)	0.815	√

Process Parameters
Fin length (A) 330 ~ 600mm
Convex hole distance (D) > 150mm
Fin width (B) < 160mm
Weldable sheet thickness (G) 0.3 ~ 0.8mm
Fin height (A) < 45mm
Spot distance (S): 35 ~ 50mm
Row distance (J): Adjustable within the width range of workpiece, weldable rows: 1~4 rows
Nugget diameter (H): Φ ± 0.5mm
Number of one-time welding spot: 8 spots * 1 row = 8 spots
Pass rate (%): ≥99 (calculated by pieces)
Technical Parameters of Equipment

Name: The Multiple Spot Welding Machine for Oil filled heater
Model: Non-standard
Rated input voltage (V): 380V ±15% 3 phases
Rated capacity (KVA): ≤128
Duty cycle (%): 50
Secondary no-load voltage (V): 3.85
Secondary max. welding current (KA): 8
Max. welding speed (seconds): ≤ 4 seconds/fin (4 rows of spot welding, 0.6mm+0.6mm, with reference to the low-carbon steel cold-rolled sheet, steel material complies with EN10130 stamping steel sheets U St grade (or no less than GB/T222 standards, carbon content: 0.05 ~ 0.12%)
Auxiliary time (S): ≤2 seconds
Acceptance norm of welding machine: Welding spot diameter is within 3.5 ~ 5.0mm, welding spot depth is < 0.06mm, welding spot burr ≤ 0.1mm;
Effective electrode stroke (mm): 20

12. Max. electrode pressure (N) (0.6Mpa): ≥2,000 (single welding head)
13. Required air pressure (Mpa): 0.5 ~ 0.6 (with the regulator valve and undervoltage warning shutdown enabled)
14. Controller: In Chinese display, constant current control/grid voltage compensation regulation; with the grid voltage/welding current display enabled, with the overcurrent warning shutdown enabled (set the fluctuation range, warning and shutdown is triggered if the input value exceeds the set value); 16 sets of parameters stored, directly execute the corresponding welding program by selection, the current rises slowly, control of 3 welding currents; multiple pulse setting; calculation of welding spots, pieces; setting of welding spots, pieces, automatic shutdown while calculating, maintenance and other functions enabled, hierarchic management of user permission
15. Cooling water
Required water flow (L/min): 60-80 (the flow meter and the flow warning shutdown system equipped at each waterpath)
Required water pressure (Mpa): 0.15-0.3 (the pressure display and the temperature display are equipped at water inlet and outlet, with the warning shutdown enabled)

16. Total resistance of secondary circuit (μΩ): ≤60

Configuration:

NO.	Name	Brand/Place of Origin	Remark
1	Main cylinder, 2 sets	SMC
2	Pneumatic components	SMC
3	Solenoid valve	SMC
4	PLC/Touchscreen	Mitsubishi
5	Controller, 2 sets	Non-standard independent development	Simple upgrading available
6	Transformer, 4 sets	Epoxy resin package
7	Proximity switch	Omron, Autonics
8	Press button switch	Omron, Autonics
9	Servo motor	Panasonic, Mitsubishi
10	Bearing	THK, NSK

Automatic Mechanical Multi Head Circular Multiple Spot Welding Machine
