Ningbo Xin Chang Machinery Co.,Ltd
Min. Order:1 Piece/Pieces
Style: Vertical
Shielding Gas: No
Electric Current: DC
Type: Diffusion Welding Machine
Transport Package: at Customer's Requrest
Specification: export standard
Trademark: xinchang
Origin: Ningbo China
HS Code: 84688000
Production Capacity: 100 Sets/Month
Customization: Available
Cooling Way: Water Cooling
Control: Semi-Automatic
Supply Ability: 100 Sets/Month
Features:

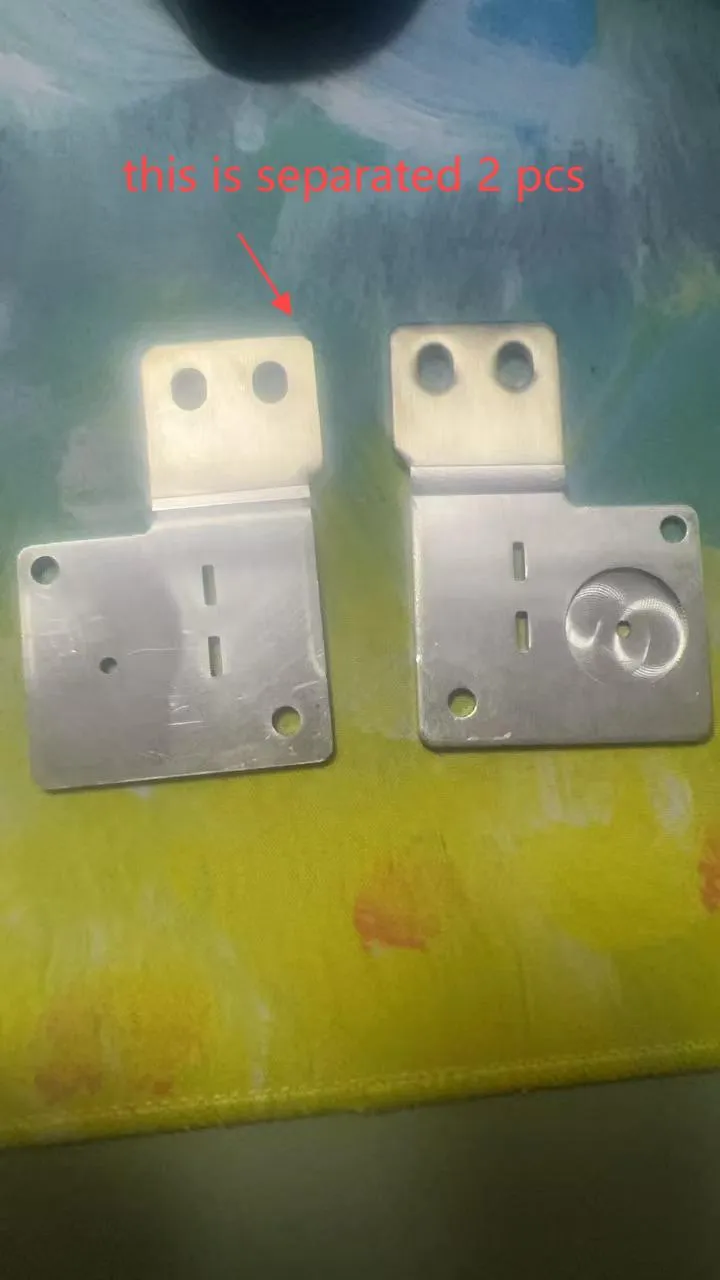

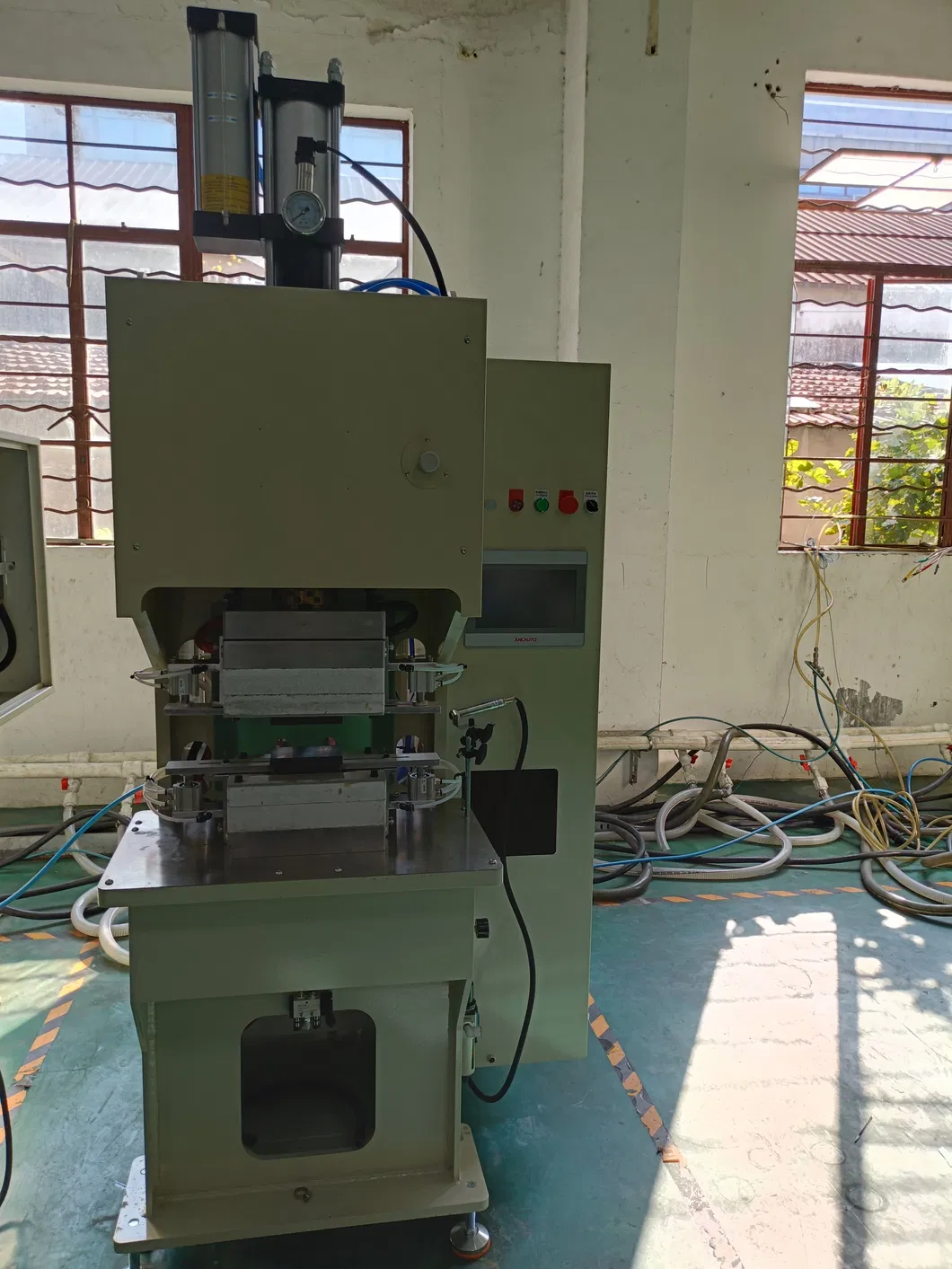

The polymer diffusion welding machine is divided into two types: copper welding machine and aluminum welding machine. It is a special welding machine for the production of new energy vehicles, power battery soft connections and power soft connections. Its advantages are no need for solder, traceless welding, and smooth appearance of the workpiece. The products are widely used in new energy vehicles, power batteries, switch cabinets, transformers, power installation and other industries. The polymer diffusion welding machine independently developed and produced by our company is at the leading level in China. The product has been used normally for many years by many companies in the industry, and has good user reviews and a good reputation among domestic welding equipment manufacturers.| 1 | Suitable for soft aluminum sheets welding, also capable of surface nickel welding, copper-aluminum welding, aluminum-aluminum welding. |
| 2 | Heating temperature:≥800ºC,Temperature measurement range:300ºC-1400ºC,Process accuracy:±3. Temperature, pressure, time, etc. can be adjusted and displayed on the touch screen . |
| 3 | The equipment mainly uses gas-liquid booster cylinders and precision pressure regulating valves to control the pressure to achieve the product welding process thickness tolerance requirements.. |
| 4 | Graphite installation area:130*80*70mm |
| 5 | Effective welding area:100*100mm (The product requirements of larger welding area can be achieved through segmented welding) |
| 5 | Electrode installation area:140mm*90mm |
| 6 | Welding material thickness:0.03mm-5mm |
| 7 | Welding product thickness:0.5mm-25mm |
| 8 | Cooling water requirements: The water flow rate requirement is 12m³/h, the head is 20 meters, or an equivalent booster pump can meet the mass production needs. Cooling water requirements:
|
| 9 | Aluminum foil meets batch single-piece peel strength≥3N/mm² |
| 10 | Digital hydraulic cylinder pressurization, max output pressure 10T,starting pressure 50KG,adjustment step unit 10Kg,set pressure accuracy within ±5% FS,welding accuracy ±0.1mm. Welding stability is determined by sir pressure. |

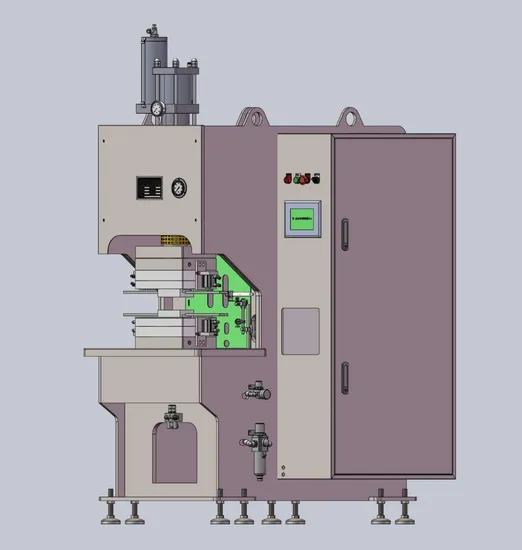

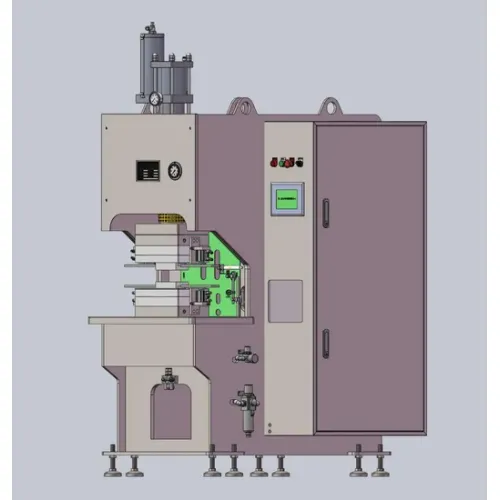

| 11 | C type vertical welding table |
| 12 | Power wiring:≥70mm2 Copper core wire, three-phase five-wire system. Incoming power requirements:
|
| 13 | High frequency heating, rated power 100KVA |
| 14 | Noise level below 65 decibels |
| 15 | Grey, close to RAL9010 paint |
| 16 | 1,The equipment is equipped with safety devices during operation, which can put the system into grounding state in any abnormal operation to ensure no high voltage load. 2,There are no obvious sharp parts on the outside of the device to prevent injuries to people during use. 3,Parts of the equipment that pose safety risks should be clearly marked, such as anti-electric shock sign and warning sign. 4,The equipment has the function of water temperature, water flow, current, voltage, and phase loss abnormal alarm and shutdown protection. |
| 17 |
3. The equipment must not misappropriate the protected patent technology of a third party. Party B shall be responsible for any disputes arising therefrom, and Party A shall not be responsible. |
| 18 | The equipment has functions such as quick release, quick change, graphite fixture, etc. |
