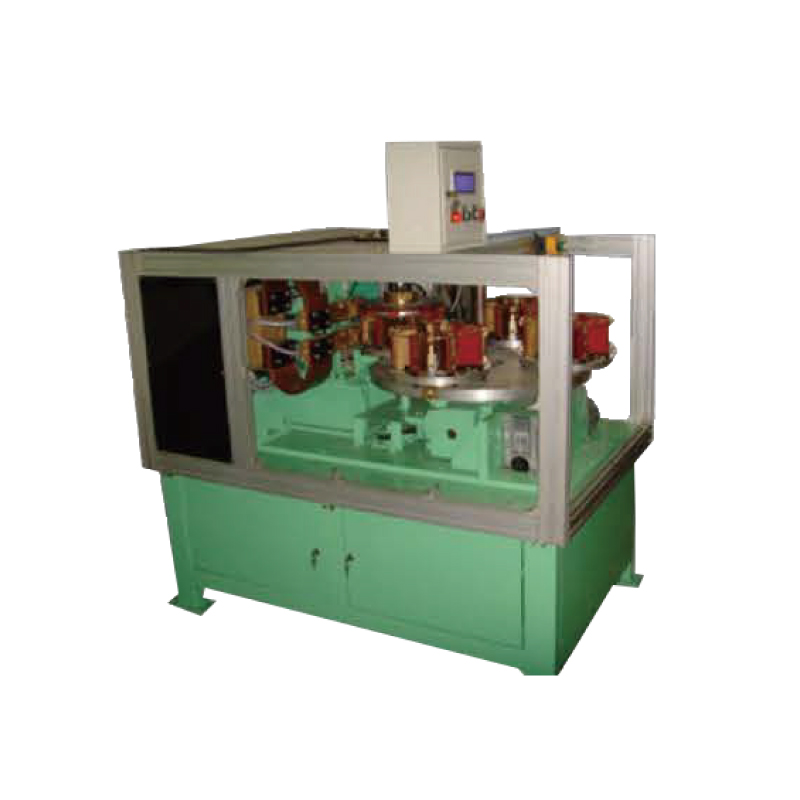

Industrial Multi-Station Oven Liner Welding Machine: An efficient integrator for oven liner welding

In the field of Industrial Oven manufacturing, the Welding quality of the oven Liner is directly related to the heat insulation, sealing and service life of the equipment. The Industrial Multi-Station Oven Liner Welding Machine, with its design of multi-station collaborative operation, Become the core equipment for enhancing production efficiency and welding accuracy. It integrates the advantages of multiple welding processes, capable of simultaneously handling the welding requirements of different parts of the inner lining. At the same time, it complements other professional welding institutions to build a comprehensive welding solution for oven inner linings.

As the core driving force of Industrial production, in the large-scale production of Oven linings, the Industrial Multi-Station Oven Liner Welding Machine has redefined the production rhythm with its integrated advantages. Through the synchronous operation of multiple independent workstations, it processes the edge sealing of the oven lining, component fixation, and connection of irregular structures in parallel, significantly shortening the welding cycle of individual products. Each workstation can be equipped with different welding modules according to task requirements, achieving diversified welding from point to line and from plane to three-dimensional, providing an efficient guarantee for the batch production of complex inner lining structures.

Compared with the Friction Welding Machine, which relies on frictional heat generation for Welding, the Industrial Multi-Station Oven Liner Welding Machine has more advantages when dealing with thin-walled metal sheets for oven linings. Although friction welding machines can achieve high-strength connections, they are prone to deformation of thin steel plates due to mechanical pressure when welding them. However, multi-station oven lining welding machines can use flexible pressure devices in combination with low-stress welding processes to ensure connection strength while maintaining the flatness of the lining to the greatest extent, avoiding the impact on the assembly accuracy of the oven due to deformation.

Spot Welding machines are often used for fixing small components of Oven linings, such as the connection between reinforcing ribs and panels, while Industrial Multi-Station oven Liner Welding machines can seamlessly integrate spot welding stations with other processes. Its spot welding module can precisely control the current and pressurization time to form uniform weld points on the surface of the steel plate. Meanwhile, other stations simultaneously carry out edge treatment or sealing welding. This parallel operation mode increases the spot welding efficiency several times and is particularly suitable for the production of oven linings with dense reinforcement structures.

When it comes to the Butt Welding of long straight edges of oven linings, the Butt Welding Machine can complete the basic straight welding, but for edges with corners or arcs, The advantages of the Industrial Multi-Station Oven Liner Welding Machine are even more obvious. Its butt welding station is equipped with an adjustable guiding device, which can adapt to edge butt welding at different angles. Through continuous wire feeding and arc tracking technology, a smooth transition weld seam is formed at the corner, which not only ensures the butt welding strength but also avoids the risk of cracking caused by stress concentration. This is a flexible welding that is difficult to achieve with traditional butt welding machines.

Seam Welding Machine is a key equipment for sealing welding of oven linings. It can form continuous and dense weld seams to prevent high-temperature gas leakage. The Industrial Multi-Station Oven Liner Welding Machine deeply integrates the seam welding process with other processes. The seam welding station can work in coordination with the positioning station. Through the visual recognition system, the welding path is corrected in real time to ensure that the weld seam is precisely positioned along the edge of the inner lining. At the same time, other stations complete the spot welding and fixation of the reinforcing ribs simultaneously, enabling the sealing and structural strengthening processes to be completed simultaneously, significantly enhancing the overall performance of the product.

Laser Welding Machine for Steel Ring is suitable for welding the annular components in the oven lining, such as the connection between the heating tube fixing ring and the panel. The Industrial Multi-Station Oven Liner Welding Machine is compatible with laser welding modules through dedicated workstations. It can integrate the laser welding of steel rings with the seam welding of panels and the spot welding of reinforcing ribs, etc. Through a unified control system, it realizes the parameter linkage of each workstation, ensuring that the annular weld seam and the heat-affected zones of other welding parts do not interfere with each other, avoiding the decline in material performance caused by local overheating.

The Stud Welding Machine is mainly used for fixing the accessories of the Oven Liner, such as hooks, brackets and other fasteners, while the Industrial Multi-Station Oven Liner Welding Machine incorporates the stud welding station into the overall production process. While edge sealing or structural welding is carried out at other stations, the stud welding station can automatically complete the positioning and welding of fasteners. Through preset programs, it ensures that the verticality and welding strength of each stud are consistent, providing a standardized interface for the subsequent assembly process of the oven and reducing the cost of manual adjustment.

To sum up, the Industrial Multi-Station Oven Liner Welding Machine has achieved a dual breakthrough in efficiency and accuracy in the field of oven liner welding with its integrated design of multi-station collaboration. It works in coordination with various professional welding machines, not only leveraging the technological expertise of a single device but also eliminating production bottlenecks through process integration. This provides solid technical support for the high-quality and large-scale production of industrial ovens and has become a core equipment for oven manufacturing enterprises to enhance their competitiveness.
