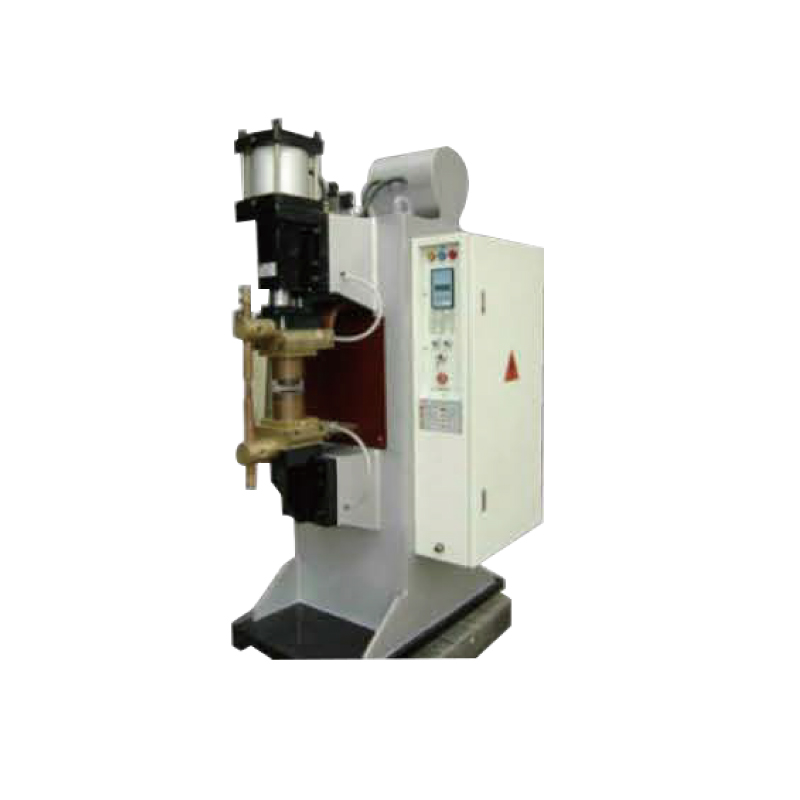

Automatic Projection Welder System for Metal Fabrication: The benchmark of automated projection welding in metal processing

In the field of metal fabrication, from the welding of precision parts to large structural components, efficiency and accuracy are the core indicators for measuring production capacity. The Automatic Projection Welder System for Metal Fabrication, with the deep integration of automation technology and projection welding process, has become the core equipment for efficient connection in metal processing. It can achieve full-process automation from workpiece positioning to welding completion, precisely handle the convex point welding of various metal parts, and at the same time form a collaborative system with other welding machines to fully meet the diverse needs of metal fabrication.

Machine, as the core carrier of Metal processing industrialization, in large-scale production, the Automatic Projection Welder System for Metal Fabrication reshapes the production mode with its intelligent advantages. This system is equipped with a visual positioning and robot handling module, which can automatically identify the prefabricated protrusions on the workpiece. Through program-controlled precise alignment of the welding torch, it enables continuous welding of multiple batches and various specifications of workpieces. From thin-walled parts with a thickness of 0.5mm to thick plates with a thickness of 10mm, from simple T-joints to complex multi-convex point structures, it can maintain stable welding quality. The single-shift production capacity is increased by more than 40% compared with traditional equipment, significantly reducing labor costs and operational errors.

Compared with the Friction Welding Machine's connection method that relies on friction to generate heat, the Automatic Projection Welder System for Metal Fabrication is more flexible when dealing with irregular-shaped metal parts. Friction welding machines are suitable for axial butt welding of rotating parts. In metal fabrication, there are a large number of asymmetric structures (such as brackets and frames). The projection welding system can form a firm weld point at any position through the preset distribution design of the convex points, without relying on the rotational symmetry of the workpiece, and the workpiece is subjected to uniform force during the welding process. It avoids the deformation problems that may be caused by friction welding and is especially suitable for the connection of precision metal components.

The Spot Welding Machine is the basic equipment for Metal point connection. However, in the synchronous processing of multiple solder points, the Automatic Projection Welder System for Metal Fabrication demonstrates significant advantages. Ordinary spot welding machines can only complete a single weld point at a time. For metal components with multiple connection points (such as car seat frames and shelf frames), multiple positioning welds are required, which is inefficient. The automatic projection welding system can complete the synchronous welding of 3 to 8 convex points at one time through the coordinated work of multiple sets of electrodes, with the error of the weld point spacing controlled within ±0.1mm. This not only ensures the consistency of the connection strength but also shortens the welding cycle by more than 60%.

When it comes to long direct seam Butt Welding of metal plates, the Butt Welding Machine can complete the basic connection, but its adaptability is limited in the mixed welding of thin-walled and thick plates. The Automatic Projection Welder System for Metal Fabrication can form solder joints of gradually changing strength on the butt surface through the stepwise distribution of convex points, balance the differences in heat conduction of materials of different thicknesses, and avoid the common problem of uneven penetration in butt welding machines. For instance, in the splicing of stainless steel cabinets, the projection welding system can set small protrusions on the thin plate side and large protrusions on the thick plate side to ensure uniform penetration on both sides and enhance the stability of the overall structure.

The Seam Welding Machine is good at forming continuous sealed welds and is mostly used for surface treatment of Metal containers, while the Automatic Projection Welder System for Metal Fabrication focuses on rigid connections of structural components. In load-bearing structures such as metal shelves and mechanical frames, where full sealing is not required but high-strength connections are needed, the discrete weld points of projection welding can not only meet the load-bearing requirements (the shear strength of a single weld point can reach over 30kN), but also reduce the consumption of welding materials, achieve structural lightweighting, and reduce the weight by 15% to 20% compared with continuous welds, which is more in line with the energy-saving demands of modern manufacturing.

Laser Welding Machine for Steel Ring is suitable for welding high-precision annular components (such as bearing sleeves, flange rings) in metal fabrication, and can achieve precise connection of tiny weld seams. The Automatic Projection Welder System for Metal Fabrication is more cost-effective in large-area multi-convex point welding. The initial investment in laser welding equipment is high, and when operating with multiple weld points, the optical path needs to be frequently adjusted, which limits the efficiency. The equipment cost of the automatic projection welding system is lower, and standardized welding can be achieved through mold-based production. A single device can complete over 5,000 weld points per day on average, making it more suitable for the batch manufacturing of metal components.

Stud Welding Machine is mainly used for stud fixation of Metal components, such as installation studs of equipment bases, and forms process synergy with Automatic Projection Welder System for Metal Fabrication. In the manufacturing of metal machine tool housings, the stud welding machine is responsible for fixing the installation studs on the surface of the shell, while the projection welding system completes the structural welding of the shell frame. The two have clear divisions of labor: stud welding ensures the convenience of subsequent assembly, while projection welding guarantees the overall rigidity of the frame, jointly enhancing the manufacturing efficiency and performance of the product.

To sum up, the Automatic Projection Welder System for Metal Fabrication, with the dual advantages of automation technology and projection welding process, has set a new benchmark of high efficiency and accuracy in the field of metal processing. It works in coordination with various welding machines, covering the connection requirements from precision parts to large structural components. It provides comprehensive support for metal fabrication enterprises to enhance production efficiency, reduce costs and ensure quality, and has become a key equipment for promoting the intelligent upgrade of the metal manufacturing industry.
