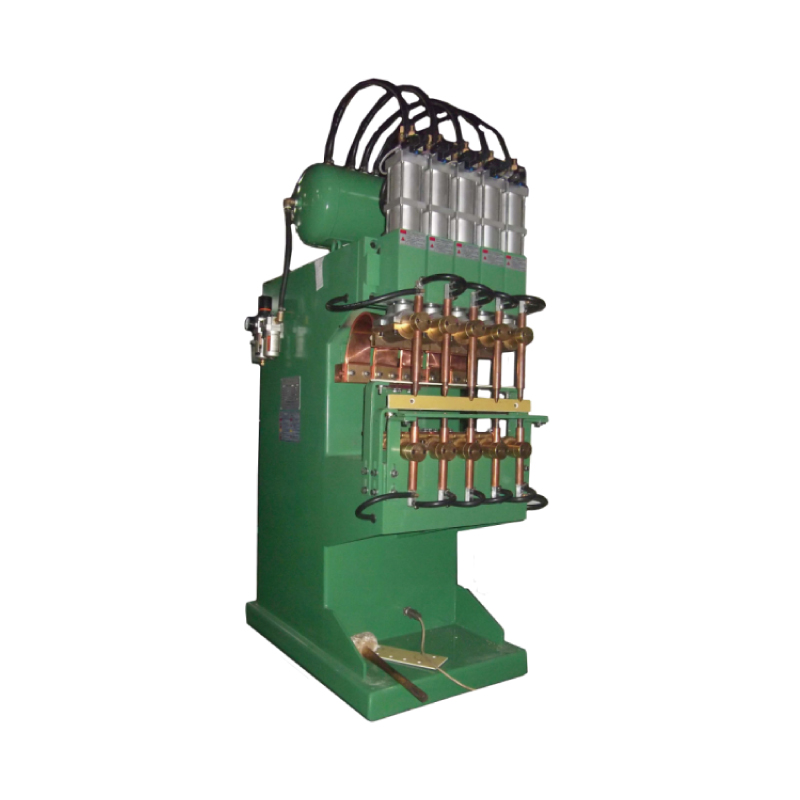

5-Tip Spot Welding Machine

5-Tip Spot Welding Machine: A high-performance spot welding equipment with multiple welding heads working together

In the field of metal processing that requires dense weld points, the 5-Tip Spot Welding Machine, with its collaborative operation design of five welding heads, has become the core equipment for improving the efficiency and accuracy of spot welding. It can simultaneously complete the welding of multiple points, significantly reducing the welding time of a single product. At the same time, it forms a complementary system with other welding mechanisms to meet diverse welding requirements. ​

As an important Welding equipment in industrial production, the 5-Tip Spot Welding Machine redefines the spot welding rhythm with the advantage of multiple welding heads. Whether it is the frame connection of automotive parts or the multi-point fixation of home appliance shells, its five welding heads can act synchronously or at different times according to the preset program. One welding can complete the number of welding points that traditional equipment operates multiple times, and the single-batch welding efficiency is increased by 4 to 6 times. It is especially suitable for scenarios with strict efficiency requirements in mass production. ​

Compared with the Friction Welding Machine, which relies on friction to generate heat for Welding, the 5-Tip Spot Welding Machine has more advantages when dealing with thin-walled or precision components. Friction welding machines are suitable for axial butt welding of thick-walled components, but they are prone to deformation of thin and light parts. In contrast, 5-head spot welding machines use local resistance heat welding, with a small heat-affected zone. They can precisely control the size and depth of each weld point, preventing the workpiece from being damaged due to excessive heating and ensuring the dimensional accuracy of the product. ​

The Spot Welding Machine is the basic equipment for Spot Welding, but the 5-Tip Spot Welding Machine has achieved a qualitative leap in multi-weld point scenarios. Traditional spot welding machines operate with a single head. When facing dense welding points, they need to be repeatedly positioned, which is prone to cumulative errors. The multiple welding heads of the 5-head spot welding machine can work synchronously along the preset trajectory, with the error of the weld point spacing controlled within ±0.1mm. This not only ensures the consistency of connection strength but also reduces positioning time, making the welding of complex structural components more efficient. ​

When dealing with the Butt Welding of long straight workpieces, the Butt Welding Machine excels at continuous straight-line connections. However, for irregular structures that require multiple points of fixation, the 5-Tip Spot Welding Machine is more flexible. The weld seam form of the butt welding machine is single, while the 5-head spot welding machine can form uniform weld points at complex positions such as corners and crossings through the combination of different welding heads, taking into account both structural stability and design diversity, and making up for the limitations of the butt welding machine in the welding of irregular parts. ​

The Seam Welding Machine focuses on continuous sealing welds and is suitable for leak-proof Welding of container products, while the 5-Tip Spot Welding Machine emphasizes multi-point fixation of structures. In metal frames, brackets and other components, there is no need for sealing but high-strength connection is required. The discrete weld points formed by the five welding heads can not only disperse stress but also reduce the weight of the workpiece, creating a synergistic effect of "structural fixation + sealing guarantee" with the sealing function of the seam welding machine. ​

The Laser Welding Machine for Steel Ring is suitable for Welding annular precision components and can achieve high-precision connection of micro-weld seams, while the 5-Tip Spot Welding Machine has more cost and efficiency advantages in large-area multi-point welding. Laser welding equipment is costly and time-consuming to switch between multiple weld points. In contrast, a 5-head spot welding machine can achieve rapid batch welding with lower investment, which better meets the economic requirements of industrial production. ​

The Stud Welding Machine is mainly used for Welding fasteners such as studs and has a clear division of labor with the 5-Tip Spot Welding Machine. In equipment assembly, the stud welding machine is responsible for fixing the accessories, while the 5-head spot welding machine completes the multi-point connection of the main structure. The two work in coordination, ensuring not only the installation stability of the components but also the load-bearing capacity of the main structure, thereby enhancing the overall quality and reliability of the product. ​

To sum up, the 5-Tip Spot Welding Machine, with its unique design of multi-head collaboration, demonstrates the core advantages of high efficiency and accuracy in the field of dense spot welding. It works in coordination with various welding machines, covering multiple links from structural fixation to sealed welding, providing strong support for efficient production and quality improvement in the metal processing industry. ​
