Safe Box Spot Welding Machine

Min. Order:1

Product Attributes
Packaging & Delivery
Other information

Product Attributes

Brand: xinchang

Packaging & Delivery

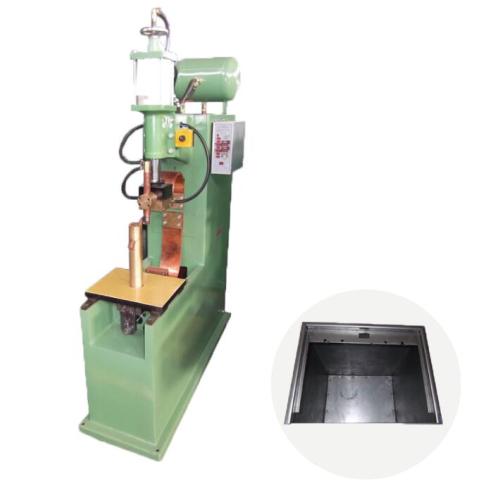

This dedicated Spot Welding Machine is tailor-made for safe box manufacturing, delivering stable and high-precision welding performance for metal cabinet frames and panels. Built as an Industry Special Machine, it fully adapts to the material thickness and structural characteristics of safe boxes, producing firm, neat weld spots with no deformation or cracks, which effectively guarantees the overall rigidity and safety performance of finished products.

Adopting Automatic Type operation design, the equipment realizes automatic positioning, pressure applying and welding cycles. Optimized control system enables flexible adjustment of current, time and pressure parameters, greatly cutting manual operation errors and boosting production efficiency. It runs steadily for long hours with low failure rates, well suited for mass production lines.

Beyond core welding tasks for safe boxes, it also supports processing of metal cabinet parts and similar sheet metal work. Such versatile performance makes it a practical choice to handle Others conventional metal welding demands in daily production. With reliable structure, simple maintenance and outstanding cost performance, it is an ideal welding solution for safe box manufacturers and related metal processing enterprises.

Method named for welders:
Spot(projection) welders series: DTN-P-1(2)-L
DTN: Pneumatic AC mains frequency spot(projection) welders
P: Rated capacity
1: Lower arm can not be adjustable; 2: Lower arm can be adjustable
L: Throat depth, namely arms length

Advantage & Feature:
1, Machine body of thick steel sheet, not easy to deformation
2, Secondary electric conduction parts is style of upper insulation, to avoid short current accident caused by Scrap iron or workpiece.
3, The electrodes of speed can be adjusted at random, to decrease strike or workpiece and noise.
4, Microcomputer control, accuracy and steady, Can store 15 sets welding schedules, to suit different specification products
5, Controller can automatically compensate current, to make welding steady. Some material can be preheat or temper.
6, Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
7, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
8, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
9, Quality is stable, failure rate is low, therefore machine life is longer
10, It is suitable for metal wire, electrical appliances manufacturing, metal plate process, micro-electron etc.
