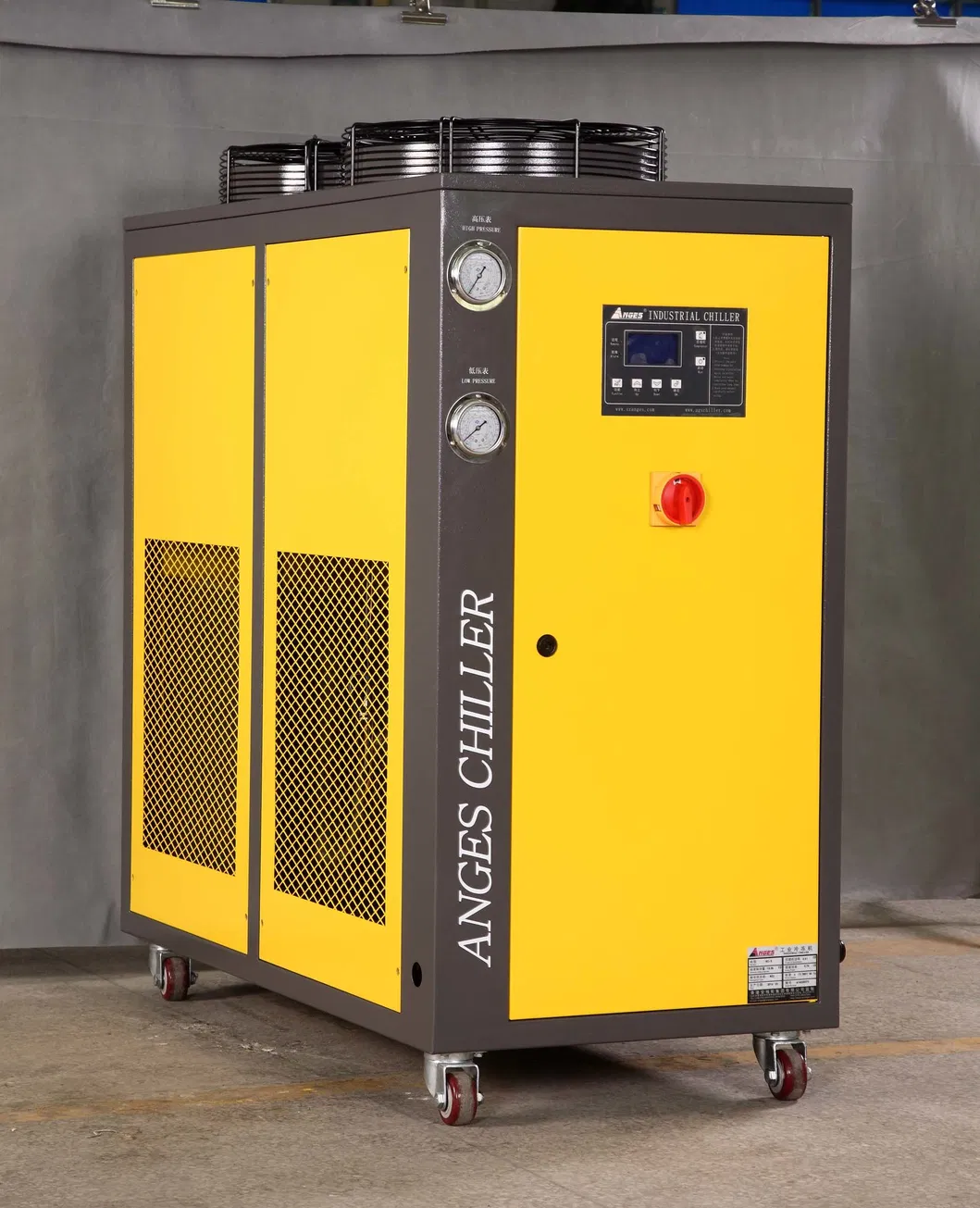

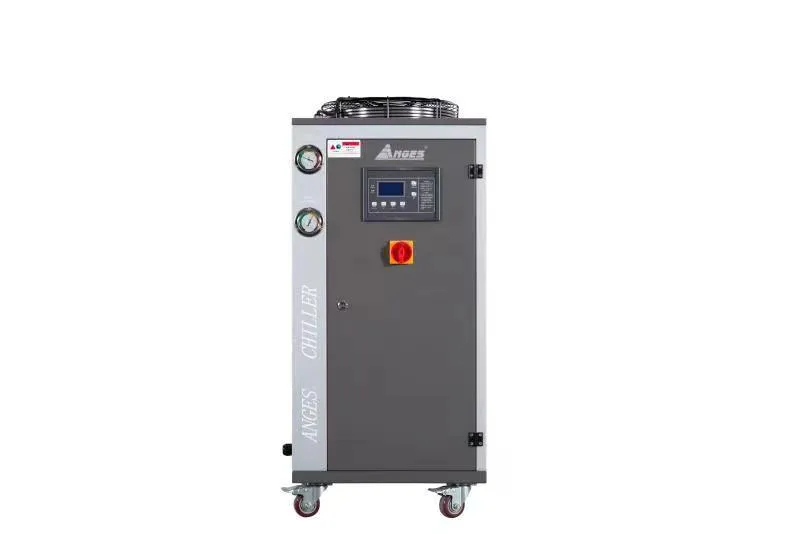

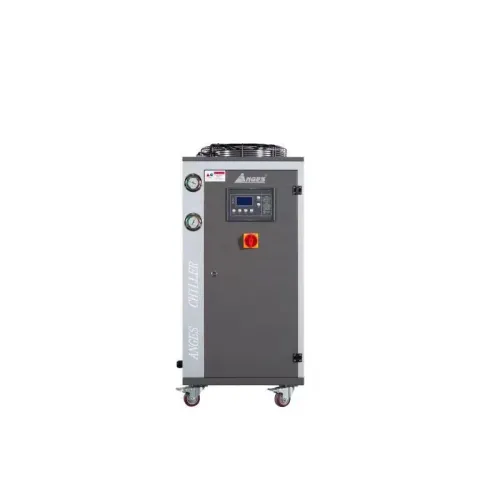

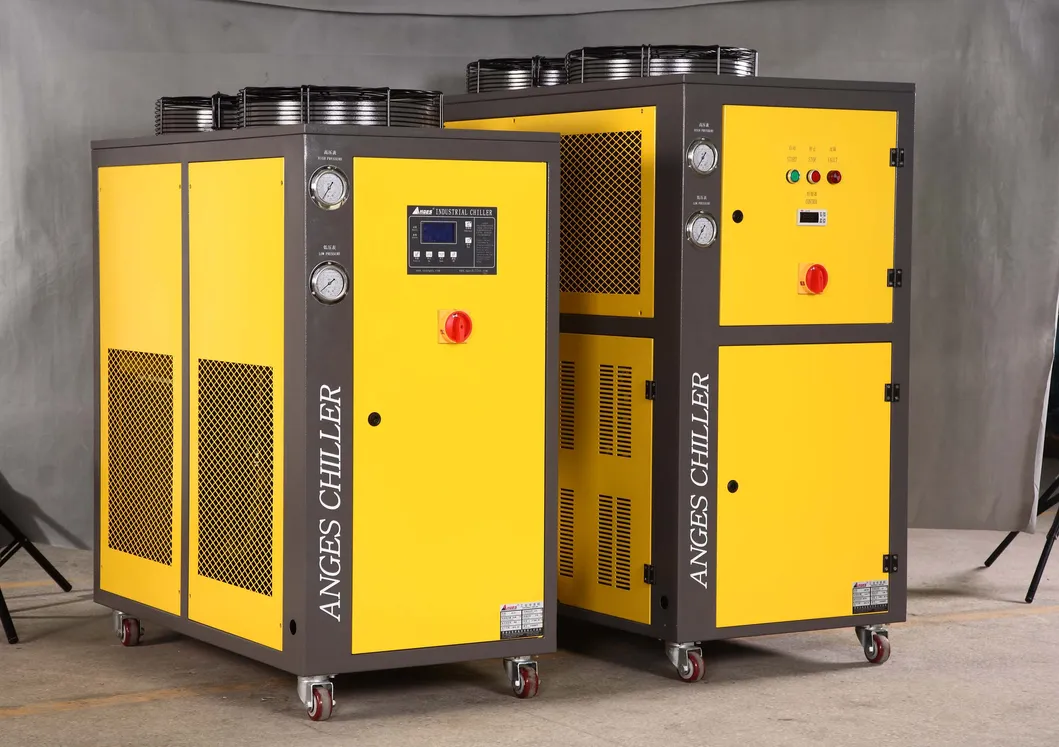

This high-efficiency air cooled water chiller delivers stable and precise temperature control for diverse industrial cooling scenarios. Adopting optimized air heat dissipation structure, it features easy installation, low energy consumption and reliable continuous operation, perfectly matching the cooling demands of various production processes. Designed with mature operational logic, it comes as
Automatic Type to realize intelligent temperature regulation and unattended running, greatly saving manual management costs. It works well as core supporting equipment for
Industry Special Machine, ensuring steady working state of main units. Apart from mainstream industrial matching usage, it is also applicable to
Others different commercial and processing fields, with strong compatibility and wide application range.
Model
Item | AC-05 |
| Cooling Capacity | kcal/h | 13046 |
| KW | 15.17 |
| Input power | KW | 5.23 |
| Power Supply | 3PH~440V/50HZ |
| Refrigerant | Model | R22 |
| Control type | Expansion valve |
| Compressor | Type | Hermetic scroll type |
| Power | kw | 4.1 |
| Condenser | Type | High effective copper pipes lovered into aluminllm fins+low noise rotor fan |
| Power | kw | 0.38 |
| Cooling air Flow | m3/h | 5000 |
| Evaporator | Type | Water tank with coil |
| Refrigerated Water Flow | m3/h | 2.62 |
| Water Tank Capacity(L) | 60 |
| Inlet and Outlet pipe caliber | 1″ |
| Water Pump | Power (KW) | 0.75 |
| Lift(M) | 20 |
| Safety Protection | Compressor superheating protection, Overcurrent protection, High and low pressure protection, Over temperature protection, Phase sequence/ Phase-lacking protection, Exhaust over heating protection |
| Weight of the Machine | KG | 175 |
| MEAS. | MM | 1140*560*1040 |
Note: 1. The cooling capacity is according to:
Refrigerated water inlet and outlet temperature 17ºC/12ºC; Cooling water inlet and outlet temperature 30ºC/35ºC
2. Working Range:
The temperature range of Refrigerated water is from 5ºC to 35ºC; The inlet and outlet temperature difference is from 3ºC to 8ºC.
The temperature range of cooling water is from 18ºC to 35ºC; The inlet and outlet temperature difference of cooled water is from 3.5ºC to 10ºC.
We reserve the right to change the above dimensions or parameters without further notice.
