our factory is the professional manufacturers work at different types of Wire Drawing Machines since 1974 year! Till now, we already have more 40 years old for this industry. The following items are the related products of the Wire Drawing Machines, kindly pls view the details as follow. If any query you have for Wire Drawing Machines, pls don't hesitate to contact with us at any time and we are willing to further assist you!
Feature:

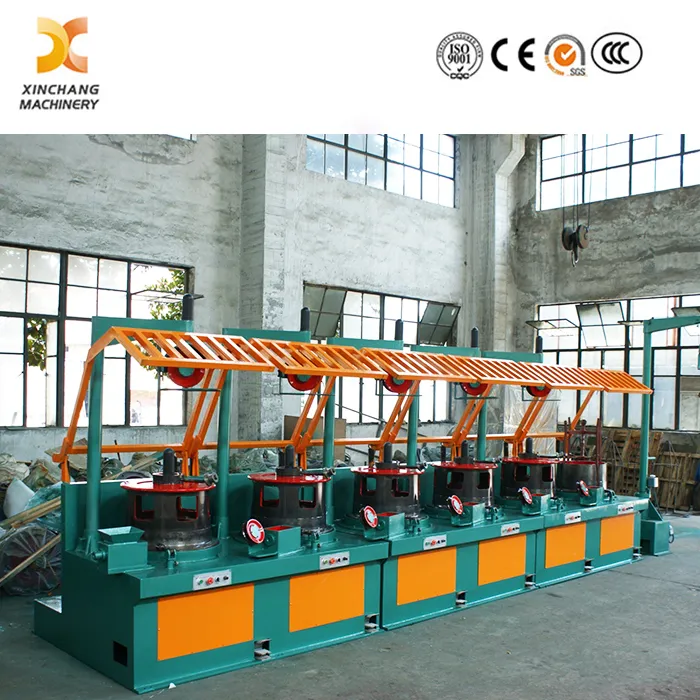

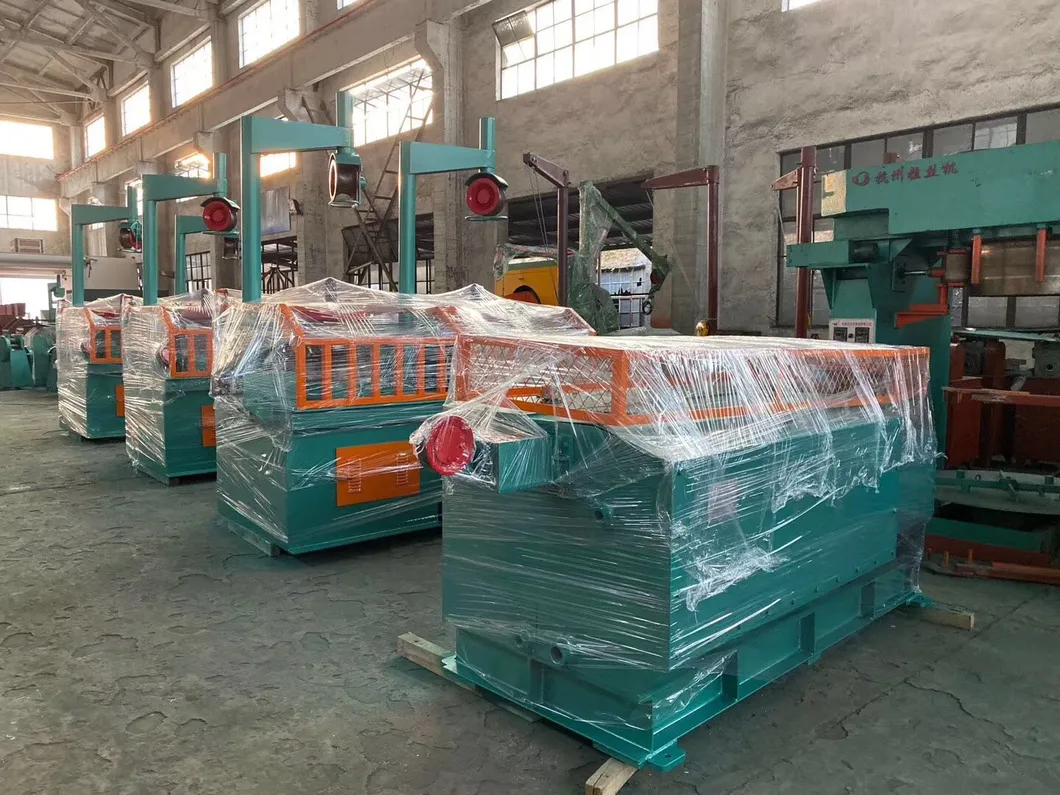

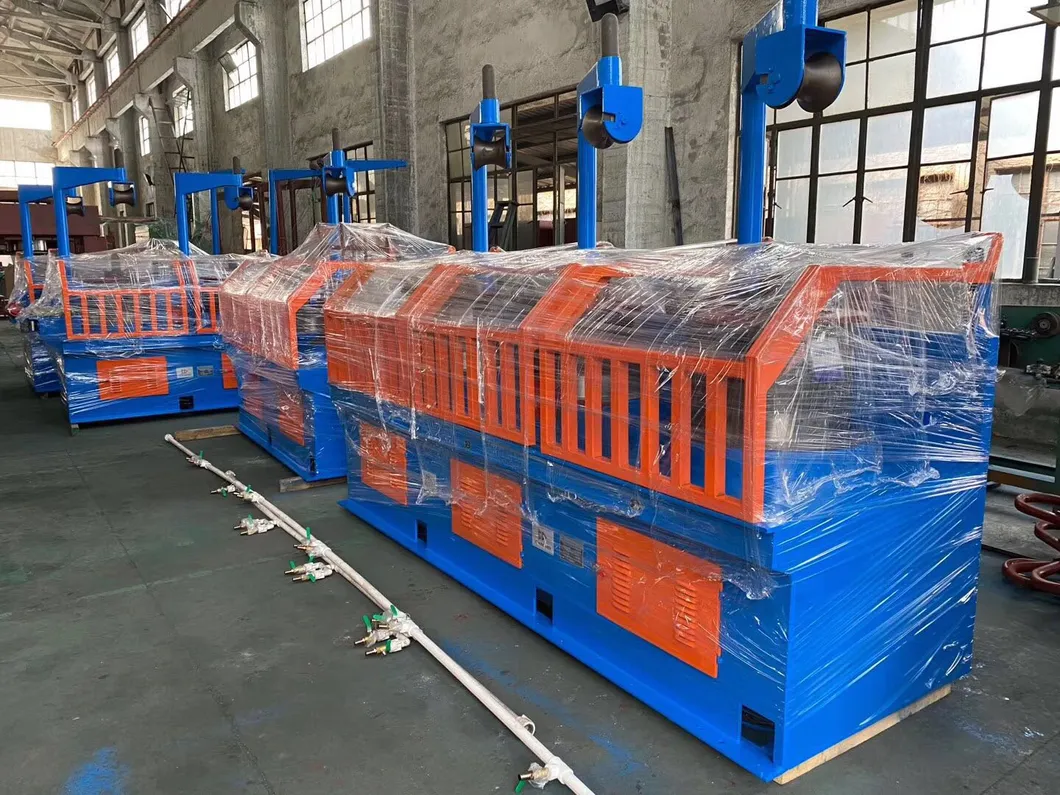

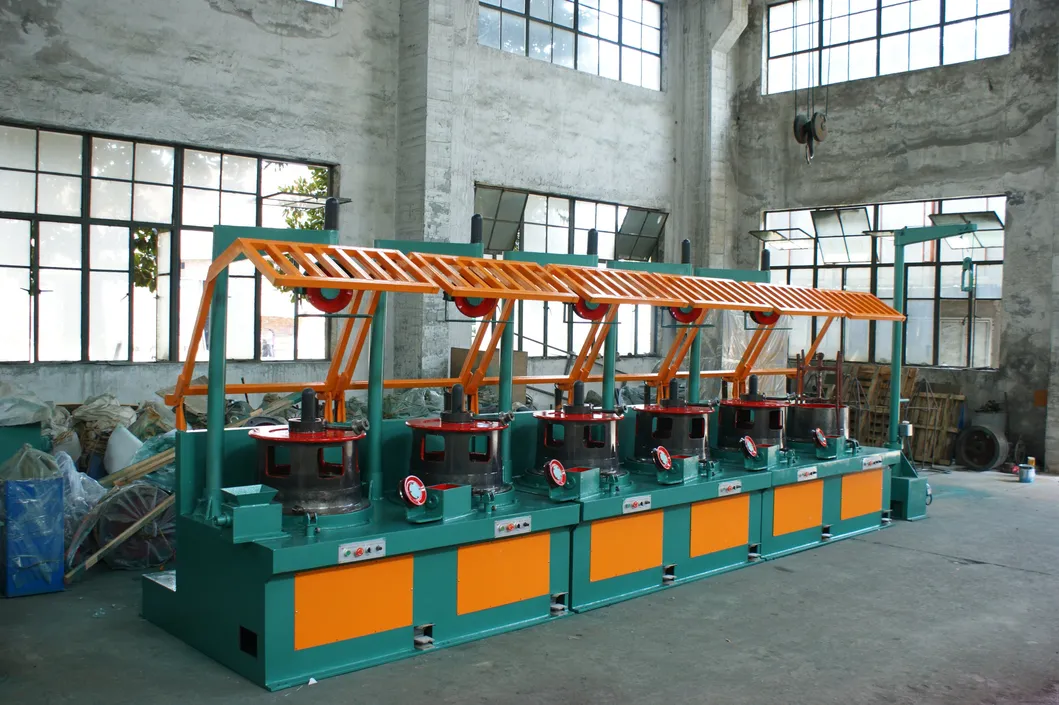

High Speed & Low Noise Pulley-type Wire Drawing Machines are with the simple structure, easy operation, economy cost and low noise but with fast wire drawing speed machineries. It is with frequency control, energy saving, steady production. Suitable for drawing detailed specifications in a variety of metal wire, especially suitable for drawing low carbon steel wire, galvanized wire, stainless steel wire, aluminum wire rod and copper wire, etc | Model | LWX1-6/560 | LWX1-6/550 | LWX1-6/450 | LWX1-6/350 |
| Roller Dia | 560mm | 550mm | 450mm | 350mm |
| Max. inlet wire | 8-6.5mm | 6.5-5.5mm | 4-3mm | 3-2mm |
| Min. outlet wire | 3-2.5mm | 2.5-2.2mm | 1.6-1.2mm | 1.4-0.95mm |
| Finished wire speed | 300m/min | 320m/min | 360m/min | 400m/min |
| Power | 22-37kw | 15-18.5kw | 11-15kw | 4-7.5kw |
| Overall size | 6.6x1.7x2.55 m | 6.6x1.55x2.35m | 6x1.5x2.35m | 4.8x1.2x2.05m |
| Weight | 2000kg | 1400kg | 1100kg | 700kg |
We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.
Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.
Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.
We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use
