CNC Pipe Flaring, Reducing & Hairpin Bending Machine

CNC Pipe Flaring, Reducing & Hairpin Bending Machine: The precision process leader for pipe shaping

Among the diverse demands for pipe processing, the precise shaping of irregular structures is the core to enhancing product compatibility. The CNC Pipe Flaring, Reducing & Hairpin Bending Machine, with its integrated processing capabilities of flaring, reducing and hairpin bending, has become a key equipment for pipe shaping. Working in coordination with various welding machines, it provides strong support for the efficient construction of complex pipe systems.

Welding equipment demonstrates its strengths in various scenarios of pipe connection: The Friction Welding Machine achieves high-strength bonding of pipes through frictional energy, and is particularly suitable for the connection of dissimilar pipes that need to withstand heavy loads. The Spot Welding Machine can quickly form weld points at the junctions of pipes and plates, and is widely used in the fixation of automotive chassis pipelines. The Butt Welding Machine focuses on the end butt welding of pipes of the same material and is the core connection equipment for long-distance pipeline laying. The Seam Welding Machine can form a continuous and sealed weld seam at the joint of the pipe material, providing safety guarantee for chemical transportation pipelines. The Laser Welding Machine for Steel Ring completes the welding of steel rings and pipes with micron-level accuracy, meeting the sealing requirements of precision instruments. The Stud Welding Machine can firmly weld the studs onto the surface of the pipe, providing a convenient interface for the installation of pipe fittings.

The CNC Pipe Flaring, Reducing & Hairpin Bending Machine demonstrates outstanding technological advantages in the pipe shaping process. The flaring function can process the end of the pipe into a trumpet shape, facilitating nested connection with other pipe fittings. The necking function can precisely reduce the diameter of the pipe, enabling the transition and connection of pipes of different specifications. Hairpin bending processing can bend pipes into compact U-shaped structures, playing a key role in heat exchange equipment such as air conditioning evaporators and condensers. Its numerical control system, through parametric programming, ensures that the dimensional error of each processing is controlled within 0.1mm, providing a precise structural foundation for the subsequent welding process.

In the actual production process, the cooperation between CNC Pipe Flaring, Reducing & Hairpin Bending machines and various types of welding machines is simply perfect. When the flaring pipe is joined with another pipe through a Butt Welding Machine, a larger welding contact surface can be formed, enhancing the connection strength. The end of the pipe after the mouth reduction is combined with the Friction Welding Machine, which can reduce the stress concentration during the welding of dissimilar metals. When the pipe formed by bending the hairpin is connected to the Steel Ring, the Laser Welding Machine for Steel Ring can achieve uniform welding by taking advantage of its regular bending arc. In addition, the surface of the pipes processed by this equipment is smooth, providing a stable working base surface for the Spot Welding Machine and Stud Welding Machine, and reducing the welding defect rate. It has formed a complete processing chain from shaping to connection with various welding mechanisms, providing efficient and precise pipe solutions for industries such as refrigeration, aviation, and shipping, and promoting the quality upgrade of high-end pipe products.

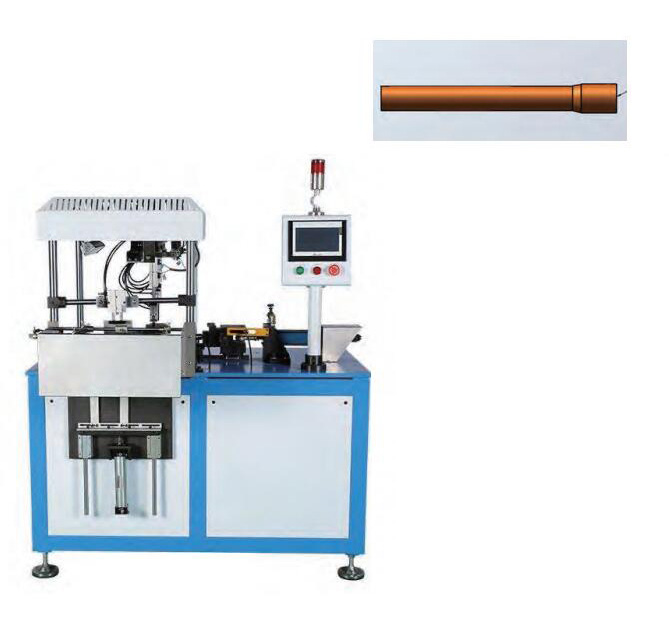

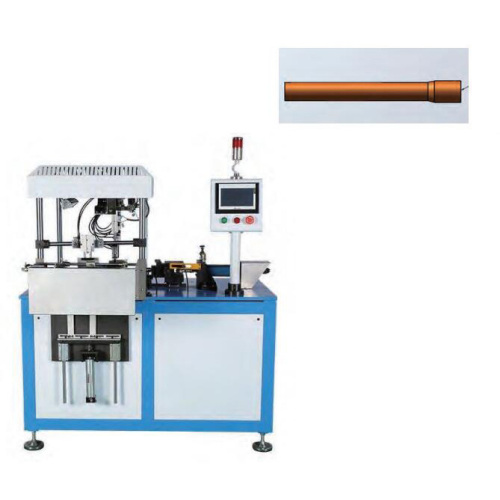

It is a special equipment for Shrinkage and Flaring mouth of Bundy pipe , red copper pipe and Alumium pipe. It has 1-6 working positions, and use pneumatic transmission. Using PLC control, high efficiency

Technical Parameters
