CNC Exhaust Pipe Flaring & Forming Machine

CNC Exhaust Pipe Flaring & Forming Machine: The performance shaper of exhaust pipe processing

In the manufacturing of automotive exhaust systems, the morphological accuracy of exhaust pipes directly affects exhaust efficiency and the overall performance of the vehicle. The CNC Exhaust Pipe Flaring & Forming Machine, with its precise flaring and forming processes, has become the core equipment for exhaust pipe processing. Working in coordination with various welding machines, it provides a solid guarantee for the production of high-performance exhaust systems.

Welding equipment plays its own role in the connection and assembly of exhaust pipes: The Friction Welding Machine can achieve high-strength connections of different material components of exhaust pipes, ensuring stability in high-temperature exhaust environments; The Spot Welding Machine is used for fixing the exhaust pipe bracket to the pipe body. The firmness of the welding point is directly related to the vibration resistance during driving. The Butt Welding Machine is responsible for the connection of exhaust pipe sections. A flat interface is the basis for ensuring smooth exhaust. The Seam Welding Machine forms continuous welds at the sealing part of the exhaust pipe to prevent exhaust leakage from affecting engine performance. The Laser Welding Machine for Steel Ring provides high-precision guarantee for the connection of the steel ring at the end of the exhaust pipe, meeting the sealing and installation requirements. Stud Welding Machine can quickly fix studs on the surface of the exhaust pipe, providing convenience for the subsequent installation of accessories.

CNC Exhaust Pipe Flaring & Forming Machine focuses on the shaping of exhaust pipes. Its flaring function can precisely process the end shape that meets the butt connection requirements, ensuring a tight connection with other pipe fittings. The forming process can process the pipe into complex bending and variable diameter structures, which are suitable for the spatial layout of the car chassis and optimize the exhaust airflow path at the same time. The precise control of the numerical control system keeps the dimensional error of each exhaust pipe within an extremely small range, laying a perfect foundation for the subsequent welding process.

In the actual production process, the CNC Exhaust Pipe Flaring & Forming Machine works in perfect harmony with various types of welding machines. The exhaust pipe formed by its flaring can achieve seamless bonding when joined by the Butt Welding Machine, reducing exhaust resistance. When processing the sealing section in combination with the Seam Welding Machine, the regular shape of the pipe body makes the weld seam more uniform and improves the sealing performance. When it is necessary to install the Steel Ring, the Laser Welding Machine for Steel Ring, with its precise end forming, can achieve higher-precision welding. Furthermore, the surface of the pipe body processed by this equipment is smooth, providing a stable working base surface for the Spot Welding Machine and Stud Welding Machine, ensuring the welding quality. It, together with various welding mechanisms, forms a complete exhaust pipe processing system, providing efficient and precise processing solutions for the automotive manufacturing industry and helping to enhance the power performance and environmental protection indicators of the entire vehicle.

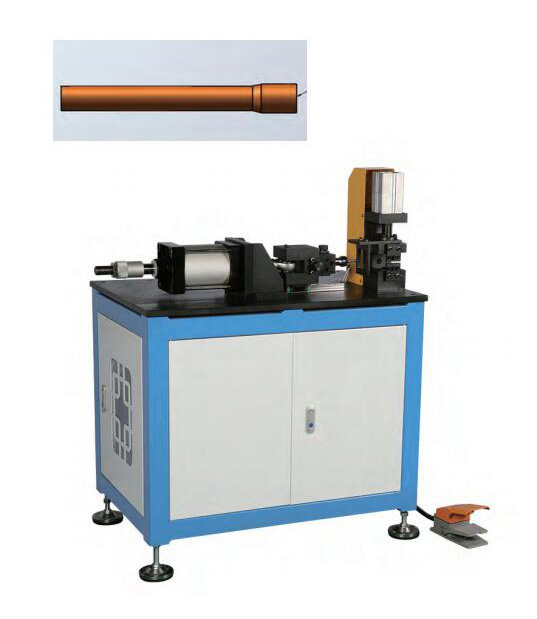

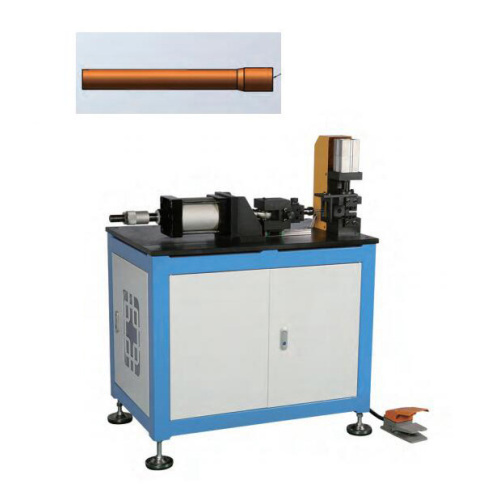

It is a special equipment for Shrinkage and Flaring mouth of Bundy pipe , red copper pipe and Alumium pipe. It has 1-6 working positions, and use pneumatic transmission. Using PLC control, high efficiency

Technical Parameters
