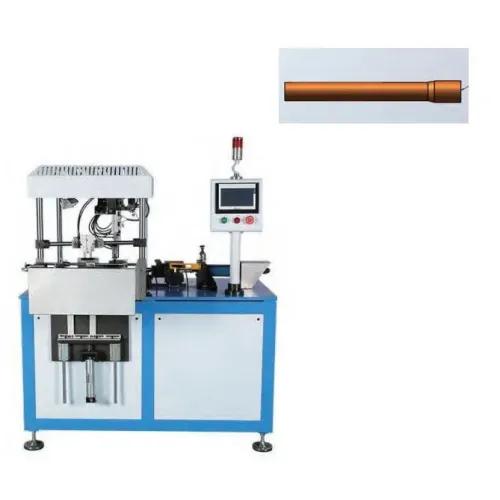

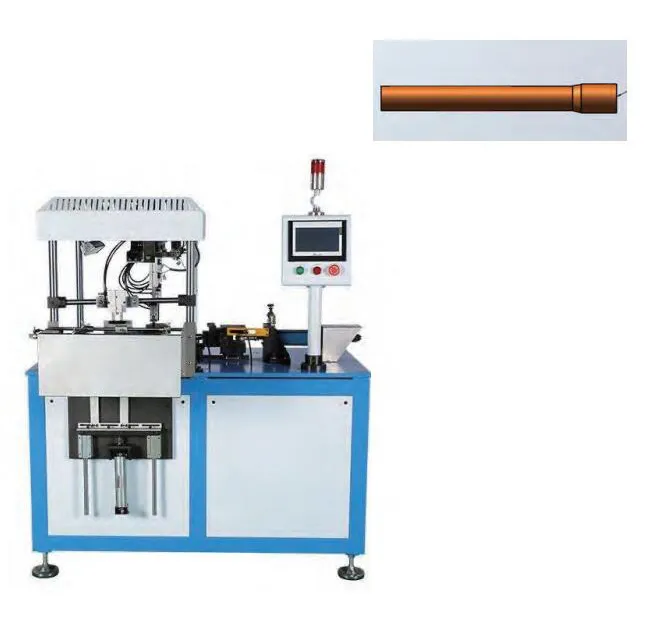

The Pipe Flaring Equipment Reducing Machine is a specialized automated device tailored for the shrinkage and flaring processing of condenser pipes, focusing on Bundy pipes, red copper pipes, and aluminum pipes. As a core processing equipment in refrigeration and air conditioning manufacturing industries, it is engineered to meet the high-precision, high-efficiency requirements of condenser pipe end forming, ensuring tight fit and stable performance of pipes in subsequent assembly, thus laying a solid foundation for the overall heat exchange efficiency of condensers.
The machine adopts a multi-station design, offering 1 to 6 optional working positions to flexibly match different production needs. Whether it is small-batch trial production or large-scale mass production, users can adjust the number of working positions to optimize processing rhythm. Powered by pneumatic transmission, it features fast response speed, stable and uniform force output, and smooth operation—effectively avoiding pipe deformation or damage caused by unstable manual operation, while ensuring consistent forming quality of each pipe’s flaring and shrinkage mouth.
Equipped with advanced PLC control system, the machine realizes intelligent and automated operation. The intuitive control interface allows operators to easily set and adjust processing parameters such as flaring size, shrinkage diameter, and processing speed, and monitor the working status in real time. The PLC control ensures high processing precision, reduces manual intervention and operational errors, shortens the production preparation cycle, and greatly improves overall processing efficiency, making it ideal for high-throughput condenser production lines.
In terms of material adaptability, the machine is specially optimized for copper and aluminum pipes—two core materials widely used in condensers. It perfectly matches the physical properties of these materials, such as ductility and thermal conductivity, ensuring smooth forming without cracks or burrs. The equipment supports pipes with an outer diameter (OD) ranging from 2mm to 25mm and a length of 70mm to 350mm, covering most common condenser pipe specifications, with strong versatility to meet the processing needs of different types and models of condensers.
With excellent production efficiency, the machine can process 700 to 1000 pieces per hour, far exceeding the efficiency of traditional manual or semi-automatic equipment, and effectively meeting the large-batch production demands of condenser manufacturers. It is equipped with a 1.5KW power system, which achieves efficient energy conversion—ensuring stable operation of the pneumatic transmission and control system while controlling energy consumption, conforming to modern energy-saving production concepts.
The machine also features a robust structural design and high-quality core components, ensuring stable performance during long-term continuous operation, low failure rate, and easy maintenance. The compact layout occupies a small footprint, facilitating integration into existing condenser production lines. Whether for new production line configuration or old equipment upgrading, this pipe flaring and reducing machine provides a reliable, efficient, and precise solution for condenser pipe processing, helping enterprises improve product consistency, reduce production costs, and enhance market competitiveness.
