Automatic Pipe Decoiling Straightener with End Cutter

Min. Order:1

Product Attributes
Packaging & Delivery
Other information

Product Attributes

Brand: xinchang

Packaging & Delivery



2+2 Type CNC Pipe Straightening and Cutting Machine



Automatic Pipe Decoiling Straightener with End Cutter

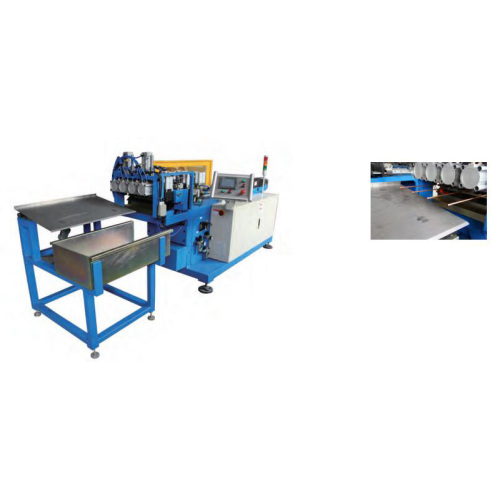

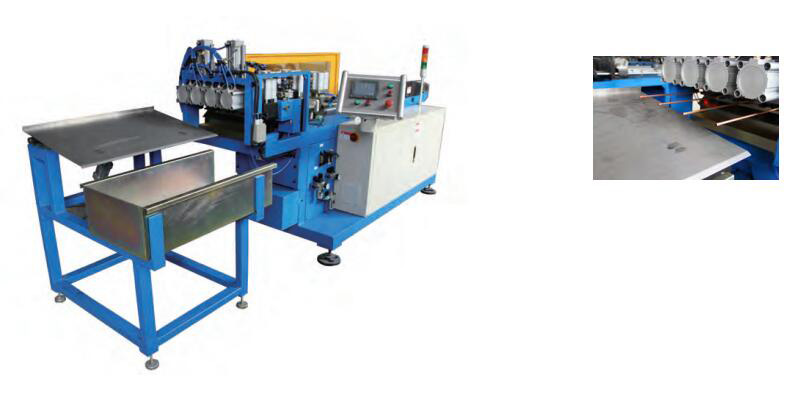

This is a CNC 4 head Pipe Straightening and Cutting Machine, a high-efficiency integrated Pipe Straightening and Cutting Machine tailored for efficient coil pipe processing. It integrates automatic uncoiling, high-precision straightening and fixed-length cutting, realizing one-stop forming of coiled pipes to meet standardized blanking demands.

As a compact CNC Tube Straightening-Cutting Combo Equipment, it adopts a stable four-head straightening structure to effectively eliminate pipe bending and deformation, ensuring uniform pipe straightness and high dimensional accuracy. Adopting advanced tube chipless cutting technology, it cuts pipes smoothly without burrs and chips, avoiding material damage and subsequent polishing procedures.

Driven by high-performance servo system, this Servo-Driven Tube Straightening & Flying Cut Machine runs stably with fast response and precise fixed-length control, perfectly adapting to continuous batch production. It is widely used in the cutting and blanking of copper pipes, aluminum pipes and other metal pipes for air conditioners, water heaters and other refrigeration and heating equipment, with high automation degree, reliable operation and remarkable production efficiency improvement, which is an ideal equipment for pipe precision processing.

3. Main parameters

Item		Parameter and specifications	Note
Processing materials	Material	Soft state, semi-hard, copper tube ,Al tube and steel tube	Or equivalent standard products
	pipe outside diameter and wall thickness	Ф1.8~Ф20,Wall thickness0.2~1mm	customized at needs
	Coil dimensions	Ф900-1100
Processing capacity	Tube Cutting Number	4 pcs
	Cutting length	Min: 120 mm , Max: unlimited.	No pretensioning if <100
	Feeding Stroke	Continuous feed, unlimited length
	Productivity	8 times /min(L=1000)
Precision	Repeat length error	L≤1000 mm≤0.3mm L≥1000 mm ≤0.6mm
	The necking rate of inner diameter	f < 20% (Original inside diameter - after-cutting internal diameter) / wall thickness
	Flatness	≤0.5mm (L=1000)
	Surface	No significant pull, draw, crushed marks/scratch; No burrs
Environment	Power supply	3 phase 4 wire 380V \ 50Hz \ 3Kw	Isolation transformer
Environment	Air pressure	0.5--0.7MPa

Main parts:

CNC or PLC	ICM CNC or Mitsubishi PLC
Frequency converter	Mitsubishi
Touch screen(HMI)	Mitsubishi
Encoder	Nemicon
Solenoid	AirTac
Proximity switch and sensor	Autonics
Low-volt electric parts	Siemens or IDEC
Relay	IDEC
Lead screw	TBI or NSK
Guide rail	THK

Pipe decoiling and end processing machine

Technical Parameters

*CNC control , precise positioning , operation easy

*Chipless cutting mode

*It includes decoiler , straightening unit , pipe end processing and pre-cut unit

*Efficiency: 6 times / min（L=1000 , small shrink rate)
