PNEUMATIC BUTT WELDING MACHINE 2



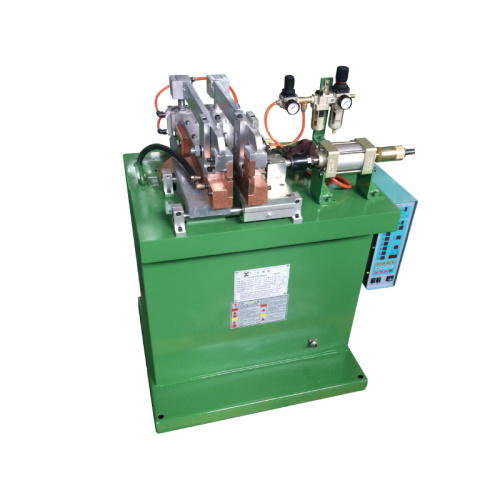

Custom Pneumatic AC Flash Butt Welding Machine

This equipment is classified into two structural designs for different working scenarios:

1: Direct pressing type

2: Type of pressing by lever

Characteristic

Direct pressing type: As it is pressed by 2 cylinders directly and left & right electrode bases are installed on one linear guide rail, so its axisality is better than Type of pressing by lever. This Pneumatic Butt Welder is more suitable for smaller diameter workpiece.

Type of pressing by lever: Press by lever, pressure is bigger than direct pressing type, it is more suitable for bigger diameter workpiece. The Butt Welding Machine delivers a max welding area of 160 square mm.

Feature

Adopt the air-powered vertical pressure or air-powered lever pressure system, workpiece clamp steady which make welding tie-in nice, steady, less dregs.

Novel structure, special design, good rigidity. Adopt the high definition guidance institution, high staying quality, high speed welding, pressure steady.

Microcomputer constant pressure control system, twice section discharge, multi-group memory programs, precise control of the welding time and welding current, easy to adjust. Can control clamping, welding, upset, off in welding process.

High conduction magnetism silicon sheet steel, secondary whole structure, output current is high, energy-saving and protection environmental.

Water cooling transformer, water cooling controlled silicon, and water cooling electrode head what can improve the use life of equipment.

Featuring strong universal adaptability, the Butt Fusion Machine is used to high quality welding wide range of wire type, plate type, heteromorphosis type copper\aluminum\iron\stainless steel metal etc.

Feature:

*Adopt the air-powered vertical pressure or air-powered lever pressure system, work piece clamp steady which make welding tie-in nice,steady, less dregs.

*Novel structure, special design, good rigidity. Adopt the high definition guidance institution, high staying quality, high speed welding,pressure steady.

*Microcomputer constant pressure control system, twice section discharge, multi- group memory programs, precise control of the welding time and welding current, easy to adjust. Can control clamping, welding, upset, off in welding process.

*High conduction magnetism silicon sheet steel, secondary whole structure, output current is high, energy-saving and protection environmental.

*Water cooling transformer, water cooling controlled silicon, and water cooling electrode head what can improve the use life of equip-ment.

*It is used to high quality welding wide range of wire type, plate type, heteromorphosis type copper\aluminum\iron\stainless steel metaletc.
