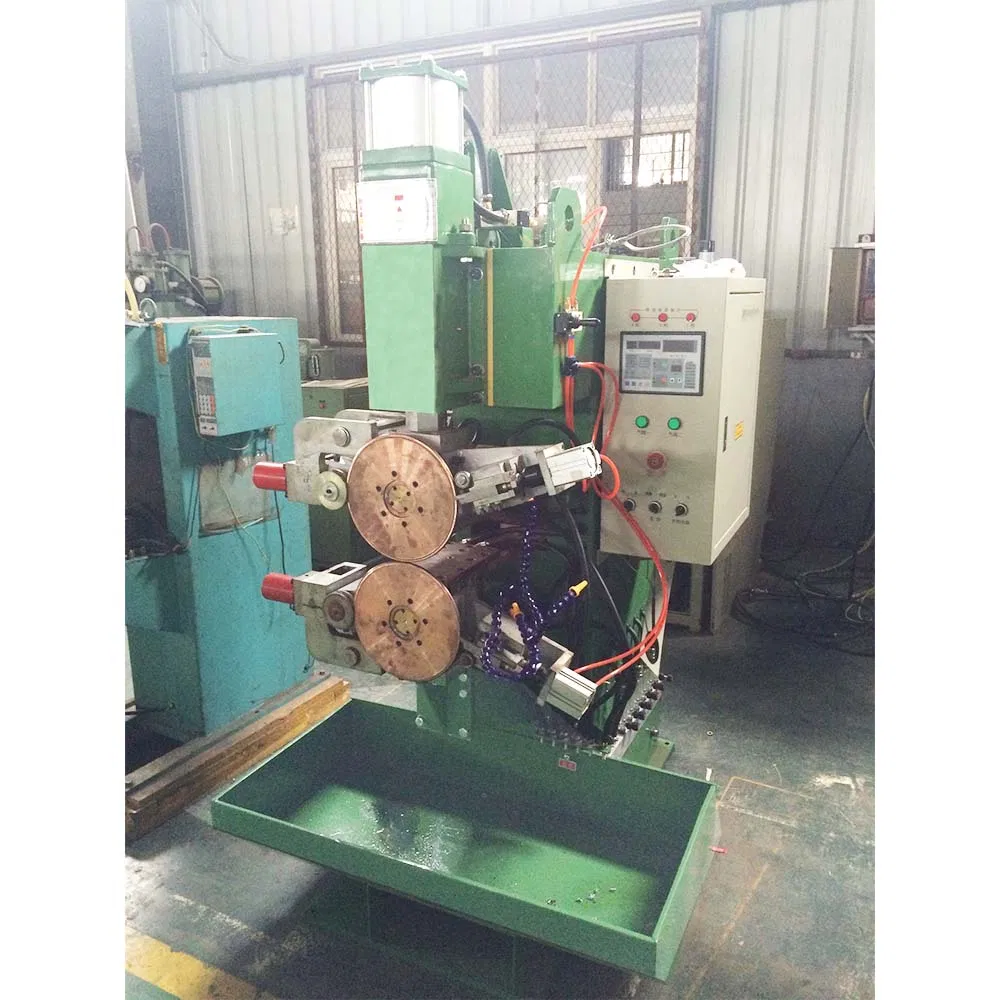

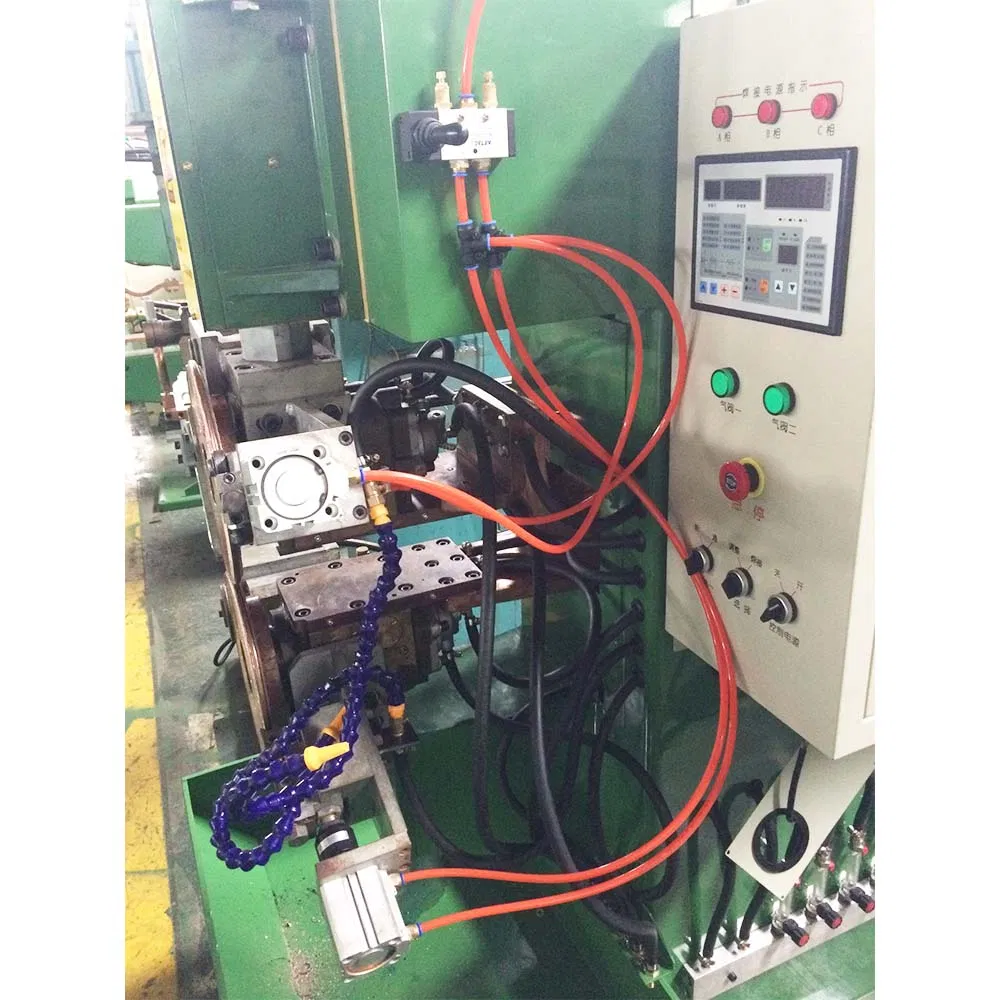

1, Roller Seam Welding Machine adopt 3-phase variable frequency motor, Automated Seam Welding System
2, welding circuit loop is by means of internal water cooling, welding wheel (electrode) are by means of external water cooling.
3, the parts of electric conduction turning on Seam Welder are designed to be embedded silver bushings structure, the base of electric conduction is lubricated by hermetic oil and be cooled down by water.
| 1, Machine body | Use vertical reinforcing structure, adopt good quality thickness steel plate to weld. |
| 2, Transformer | Use silicon sheets of 15000 gauss permeability to pile up. |
| 3, Solenoid | From NORGREN England. |
| 4, Cylinder | Adopt high accurate, anti-friction hard material, which is duralumin |
| 5, Welding wheels | With CuCrZr materials and water cooling. |
| 6, Electric conduction base | Silver bushings structure |
| 7, Controller | Chinese Top brand, from sunke |
| 8, Motor | Mitsubishi Japan |
| 9, Switches |
| 10, Air source processor |
| 11, Cooling water system |
| 12, Compressed air system |
| 13, Monitor & alarm system |
| Rated capacity | 150kVA |
| Primary voltage | 380v/50Hz |
| Max. Short circuit current | 28KA |
| Secondary unloading volt | 11.8V |
| Electrode stoke | 60 mm |
| Duty cycle | 50% |
| Max available welding length | 1300mm |
| Welding speed | 0.8-3.0 M/min |
| Electrode pressure | 6000N |
| Welding capacity(stainless steel) | 1.2+1.2 mm |
| Cooling water flux | 10L/min |
