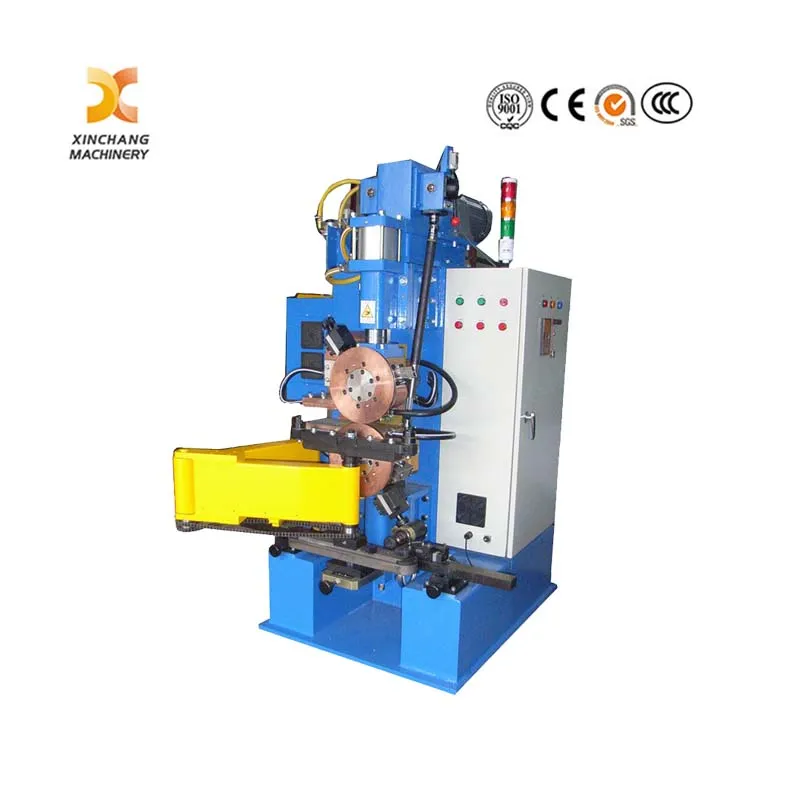

Longitudinal Straight Seam Welding Machine

Min. Order:1 Piece/Pieces

Supply Ability & Additional Information

Supply Ability: 20set/Month

Packaging & Delivery

Selling Units:

Piece/Pieces

Basic Info.

Style: Vertical

Frequency Range: Intermediate Frequency

Electric Current: DC

Type: Seam Welders

Current: Direct Current

Application: Radiators

Phase: 3

Frequency: 50Hz

Transport Package: Wooden Case

Trademark: xinchang

Origin: Ningbo China

Production Capacity: 20set/Month

Longitudinal Straight Seam Welding Machine for Thin-wall Tank Welder

Features:

Automatic speed and weld current regulation at corner

radius and overlap areas

Most reliable process safety

Clean, water and oil tight weld seams

Quick change over to different element sizes;

Low electric energy consumption

Long electrode life of weld rolls

Integrated electrode roll profiling device at the machine

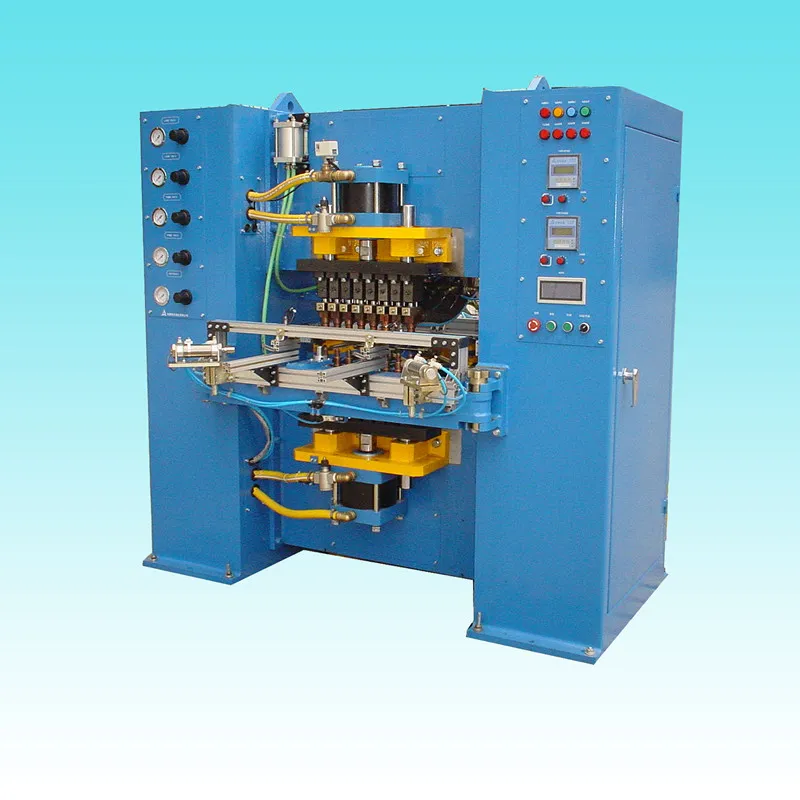

We also have the Radiator multispot welding machine and Boss stitch welding machine.

Model		FN-80-H(L)	FN-100-H(L)	FN-160-H(L)
Rated capacity	KVA	80	100	160
Primary voltage	V/PHASE	380/1	380/1	380/1
Frequency	HZ	50	50	50
Max. short circuit current	KA	26	30	40
Electrode stroke	mm	100	100	100
Welding speed	m/min	0.7-3.9	0.7-3.9	0.7-3.9
Electrode pressure	N	6000	6000	7800
Welding capacity(low carbon steel)	mm	1.2+1.2	1.5+1.5	2.0+2.0
Voltage of motor	V/PHASE	380/3	380/3	380/3
Power of motor	W	550	750	750
Cooling water flux	L/min	8	8	10
weight	Kg	380	510	630

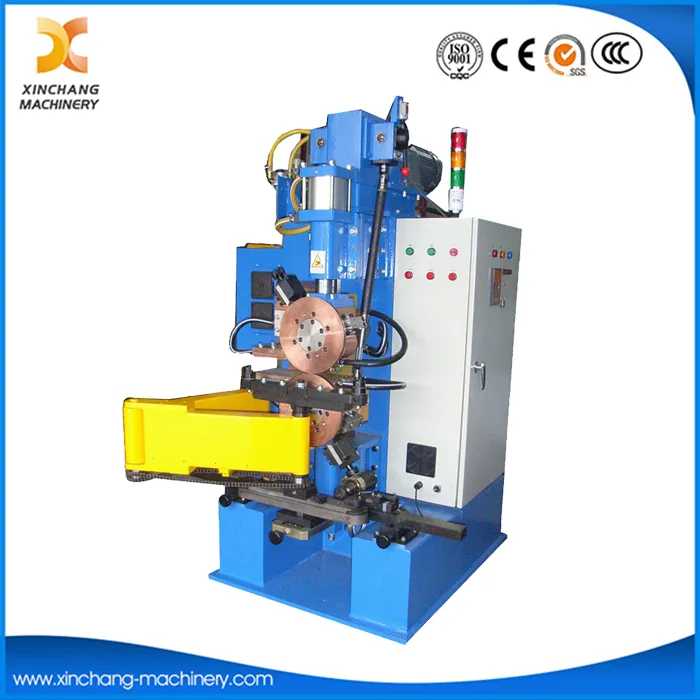

Longitudinal Straight Seam Welding Machine for Thin-Wall Tank Welder
