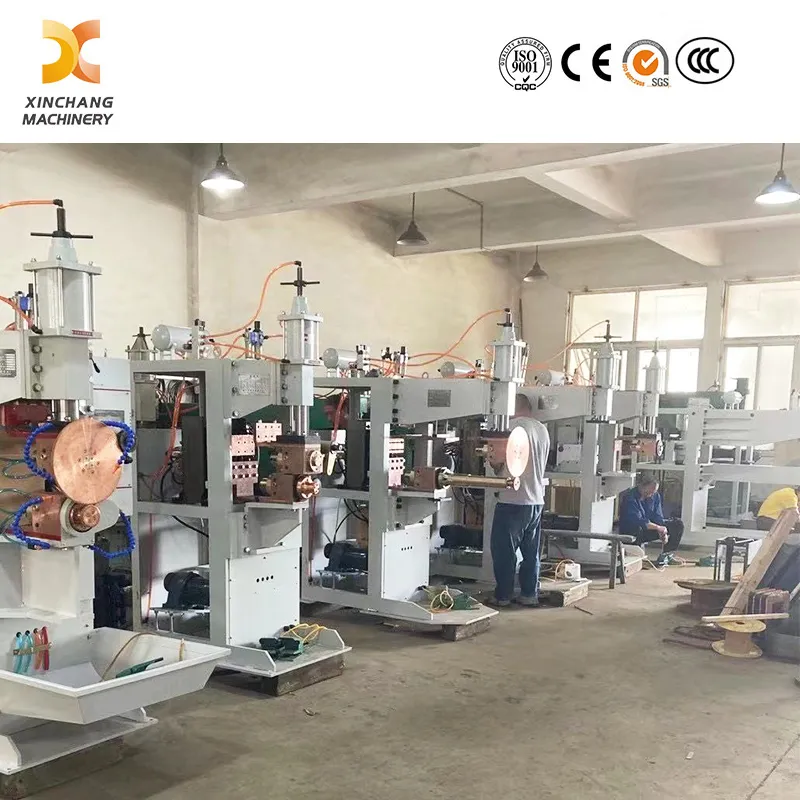

# Classification
This series is categorized by power supply into AC and inverter DC types; by welding wheel orientation into horizontal and longitudinal types; and by performance grade into premium and standard versions, representing a professional
Seam Welding Machine solution.
# Features
1. A 3-phase variable-frequency drive motor is employed, providing steady welding speed, simple parameter tuning, and consistent operational stability.
2. The welding circuit loop is cooled via internal water circulation, while the welding wheels (electrodes) use external water cooling.
3. Conductive rotating components are designed with embedded silver bushings. The conductive base is sealed oil-lubricated and water-cooled to maintain flexible rotation and prevent seizure.

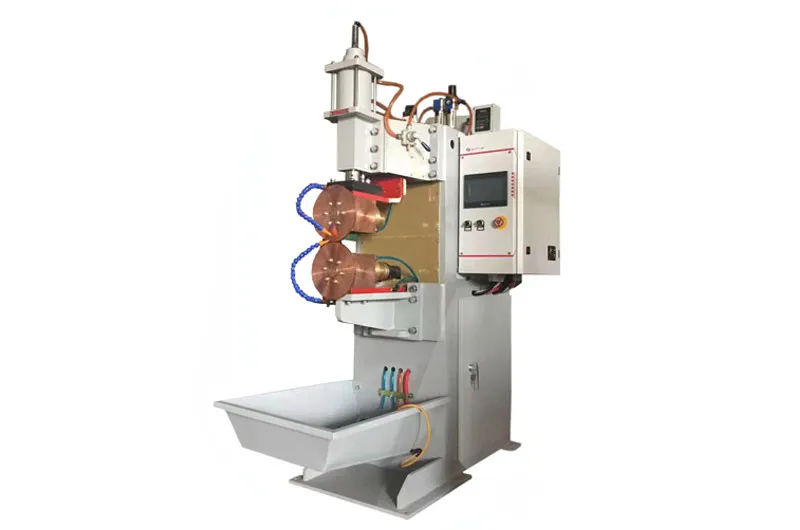

4. Offered in both horizontal and longitudinal configurations, this
Automated Seam Welding System is marked as H for horizontal and L for longitudinal.
# Key Competitive Strengths
1. The embedded silver bushing structure for conductive rotating parts, paired with sealed oil lubrication and water cooling, ensures smooth and reliable rotation without locking.
2. The rotating shaft inside the conductive base features nanometer ceramic spraying, delivering superior wear resistance over conventional nylon materials and extending service life.
3. Square cylinder guide bars are used instead of round ones, minimizing welding wheel deflection and resulting in higher and more consistent welding quality.
# Machine Components
1. Machine body: Constructed with vertical reinforcement and welded from heavy-duty high-quality steel plates.
2. Transformer: Built with 15000 gauss high-permeability silicon steel sheets, internally water-cooled, with a full copper alloy core to lower impedance and enhance power efficiency. It supports 50% duty cycle for continuous welding, offers high output, long service life, low noise, and a compact layout.
3. Solenoid: Sourced from Taiwan, featuring high speed and reliable performance.
4. Cylinder: Made of high-precision wear-resistant hard duralumin, rust-free, low friction, low noise, and rapid pressure response, effectively reducing welding spatter.
5. Welding wheels: Manufactured from CuCrZr alloy with high wear resistance, water-cooled for extended durability.
6. Switches
7. Air source processor
8. Conductive base with silver bushing structure
9. Controller: Sunke, a leading Chinese brand
10. Motor: Mitsubishi, Japan
11. Cooling water system
12. Compressed air system
13. Monitoring and alarm system
# Applications
This
Continuous Seam Welding Equipment is widely applied in metal fabrication, electrical appliances, fuel tanks, water tanks and related industries. It is especially suitable for seam welding basins, barrels, tanks and other sealed thin-walled containers made of low-carbon steel or stainless steel.
| Model | FN-80-H(L) | FN-100-H(L) | FN-160-H(L) |
| Rated capacity | KVA | 80 | 100 | 160 |
| Primary voltage | V/PHASE | 380/1 | 380/1 | 380/1 |
| Frequency | HZ | 50 | 50 | 50 |
| Max. short circuit current | KA | 26 | 30 | 40 |
| Electrode stoke | mm | 100 | 100 | 100 |
| Welding speed | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
| Electrode pressure | N | 6000 | 6000 | 7800 |
| Welding capacity(low carbon steel) | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 |
| Voltage of motor | V/PHASE | 380/3 | 380/3 | 380/3 |
| Power of motor | W | 550 | 750 | 750 |
| Cooling water flux | L/min | 8 | 8 | 10 |
| weight | Kg | 380 | 510 | 630 |
