Name: Automatic Resistance Seam Welding Machine
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.8 (3 reviews)

Automatic Resistance Seam Welding Machine

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Style: Vertical

Frequency Range: Intermediate Frequency

Electric Current: AC

Type: Seam Welders

Current: Alternating Current

Application: Radiators

Phase: 3

Frequency: 50HZ

Transport Package: at Customer's Requrest

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

HS Code: 85152900

Production Capacity: 100sets/Year

Customization: Available

Cooling Way: Water Cooling

Control: Semi-Automatic

Shipping Cost: Contact the supplier about freight and estimated delivery time.

Supply Ability & Additional Information

Supply Ability: 100sets/Year

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Product Description
Product Parameters
Detailed Photos
Company Profile
FAQ

Basic Info.

Style

Vertical

Frequency Range

Intermediate Frequency

Electric Current

Type

Seam Welders

Current

Alternating Current

Application

Radiators

Phase

Frequency

50Hz

Transport Package

at Customer's Requrest

Specification

export standard

Trademark

xinchang

Origin

Ningbo China

HS Code

85152900

Production Capacity

100sets/Year

Packaging & Delivery

Package Size

200.00cm * 160.00cm * 150.00cm

Package Gross Weight

1000.000kg

Product Description

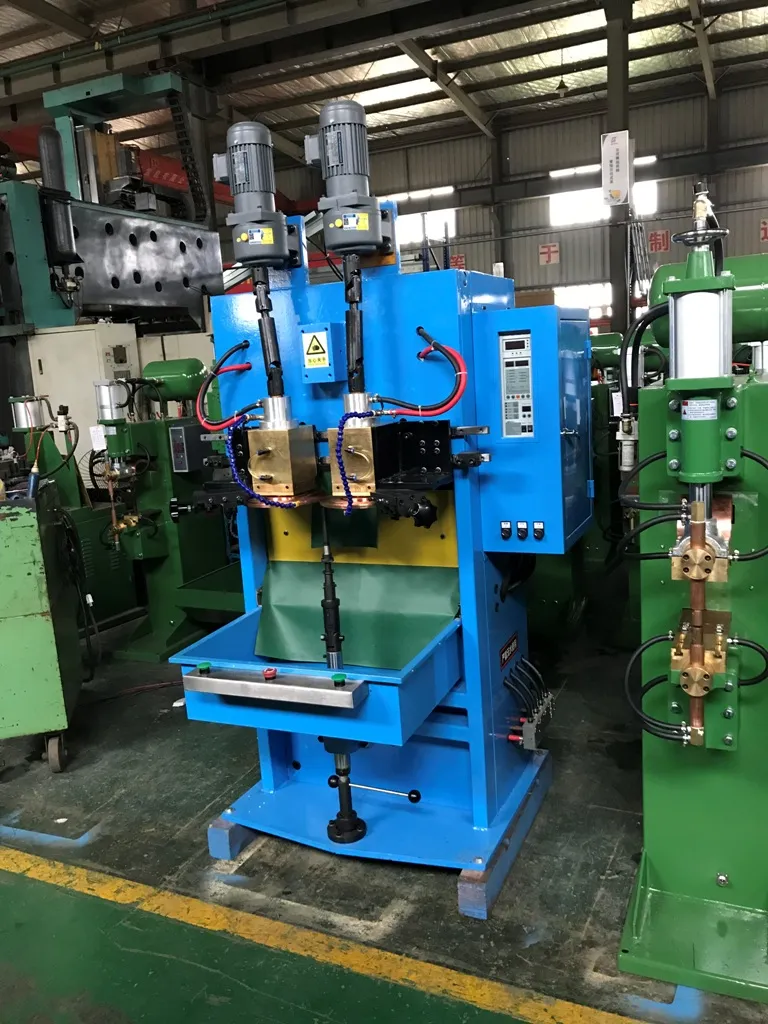

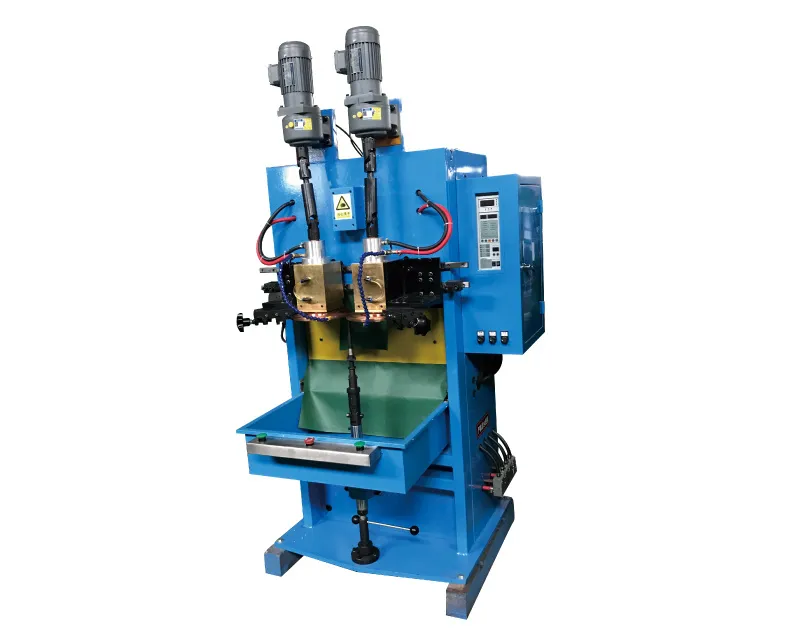

Automatic resistance Seam Welding Machine

Classification:
As per power source: AC and inverter DC
As per welding wheel direction: Horizontal and longitudinal
As per qualiy grade: Top quality and simple type

Features:
1. Adopt 3-phase motor which is variable frequency, average welding speed, easy to adjust, and stability.
2. Welding circuit loop is by means of internal water cooling, welding wheel (electrode) are by means of external water cooling.
3. The parts of electric conduction turning on welding machine are designed to be embedded silver bushings structure, the base of electric conduction is lubricated by hermetic oil and be cooled down by water so as to silver bushings turn flexibly not to lock.

Machine constitute:
1. Machine body: Use vertical reinforcing structure, use good quality thickness steel plate to weld
2. Transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 50% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
3. Solenoid: From Taiwan, High speed and quality
4. Cylinder: Adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and adding pressure is faster, thereby reducing the weld spatter.
5. Welding wheels: With CuCrZr materials, very anti-friction. By means of water cooling, longer service life.
6. Switches
7. Air source processor
8. Electric conduction base-- silver bushings structure
9. Controller: Chinese Top brand, from sunke
10. Motor: Mitsubishi Japan
11. Cooling water system
12. Compressed air system
13. Monitor & alarm system

Model		FN-80-H(L)	FN-100-H(L)	FN-160-H(L)
Rated capacity	KVA	80	100	160
Primary voltage	V/PHASE	380/1	380/1	380/1
Frequency	HZ	50	50	50
Max. short circuit current	KA	26	30	40
Electrode stoke	mm	100	100	100
Welding speed	m/min	0.7-3.9	0.7-3.9	0.7-3.9
Electrode pressure	N	6000	6000	7800
Welding capacity(low carbon steel)	mm	1.2+1.2	1.5+1.5	2.0+2.0
Voltage of motor	V/PHASE	380/3	380/3	380/3
Power of motor	W	550	750	750
Cooling water flux	L/min	8	8	10
weight	Kg	380	510	630

Automatic Resistance Seam Welding Machine

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, Spot Welding Machine, Projection Welding Machine, Butt Welding Machine, seam welding machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.

We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
