Classification:
As per power source: AC and inverter DC
As per welding wheel direction: Horizontal and longitudinal
As per quality grade: Top quality and simple type
Features:

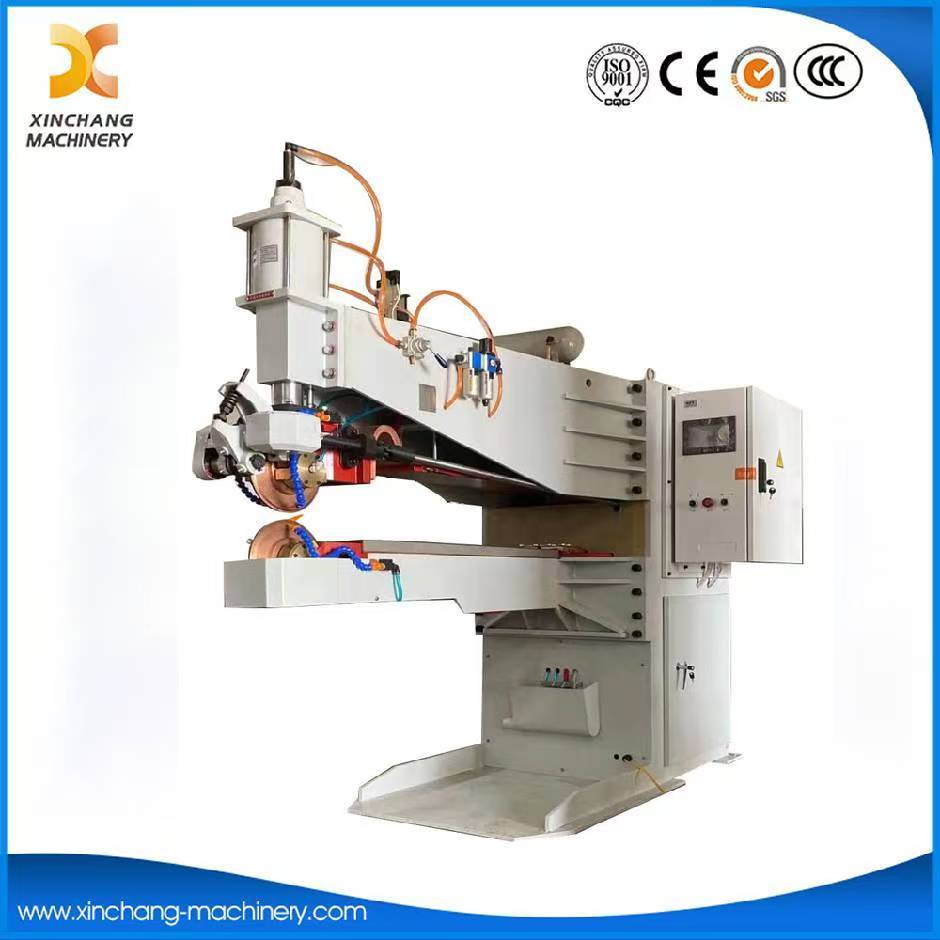

This
Seam Welding Machine adopts 3-phase variable frequency motor, delivering steady welding speed with simple adjustment and reliable operation.
Welding circuit loop is by means of internal water cooling, welding wheel (electrode) are by means of external water cooling.
The parts of electric conduction turning on welding machine are designed to be embedded silver bushings structure, the base of electric conduction is lubricated by hermetic oil and be cooled down by water so as to silver bushings turn flexibly not to lock.
Two structural styles are available for the equipment, covering both horizontal and longitudinal working modes. H stands for Horizontal, and L stands for Longitudinal seam welder.
Main advantage different than other ones:
The parts of electric conduction turning on welding machine are designed to be embedded silver bushings structure, the base of electric conduction is lubricated by hermetic oil and be cooled down by water so as to silver bushings turn flexibly not to lock.
The rotation axis within base of electric conduction adopt nanometer ceramic spraying different other factor's nylon, it is more anti-friction, thereby, machine life is longer.
Cylinder guidance bar is square different other's round, then, the welding wheel is not easy to skewed. Therefore, welding quality are better than round guidance bar ones.
Machine constitute:
Machine body: Use vertical reinforcing structure, use good quality thickness steel plate to weld
Transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 50% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
Solenoid: From Taiwan, High speed and quality
Cylinder: Adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and adding pressure is faster, thereby reducing the weld spatter.
Welding wheels: With CuCrZr materials, very anti-friction. By means of water cooling, longer service life.
Switches
Air source processor
Electric conduction base-- silver bushings structure
Controller: Chinese Top brand, from sunke
Motor: Mitsubishi Japan
Cooling water system
Compressed air system
Monitor & alarm system
As a complete
Automated Seam Welding System, it is widely used in metal products, electrical appliances, fuel tanks, water tanks and other workpieces. It is most suitable for welding low carbon steel and stainless steel basins, barrels, tanks and other sealed thin-walled containers.
