Welding method and available range:
Use GMAW MIG, workpiece fixed, guns straight move.
Available range: aluminum alloy or steel tank straight welding, diameter 300≤φ≤500mm, length L≤1000mm, thickness 2≤δ≤4mm.
Welding workpiece requirement: no burr, oil stain
Main structure

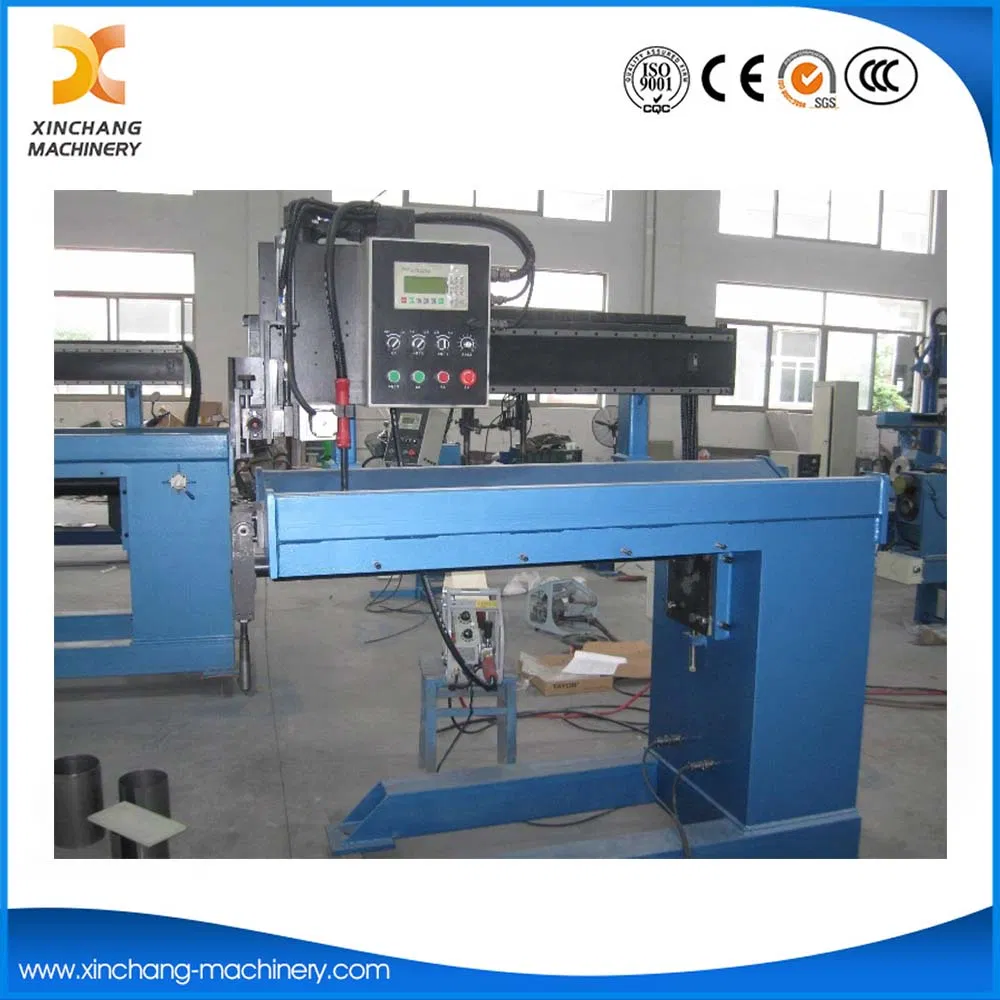

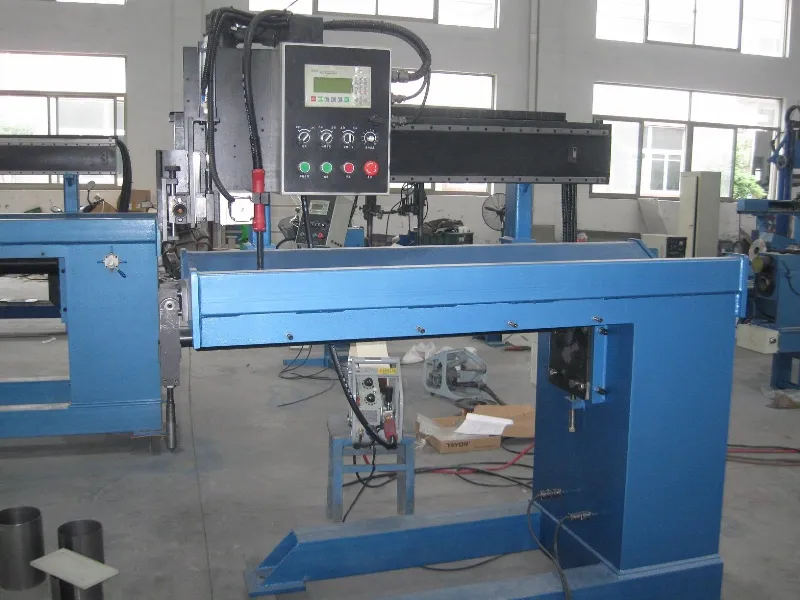

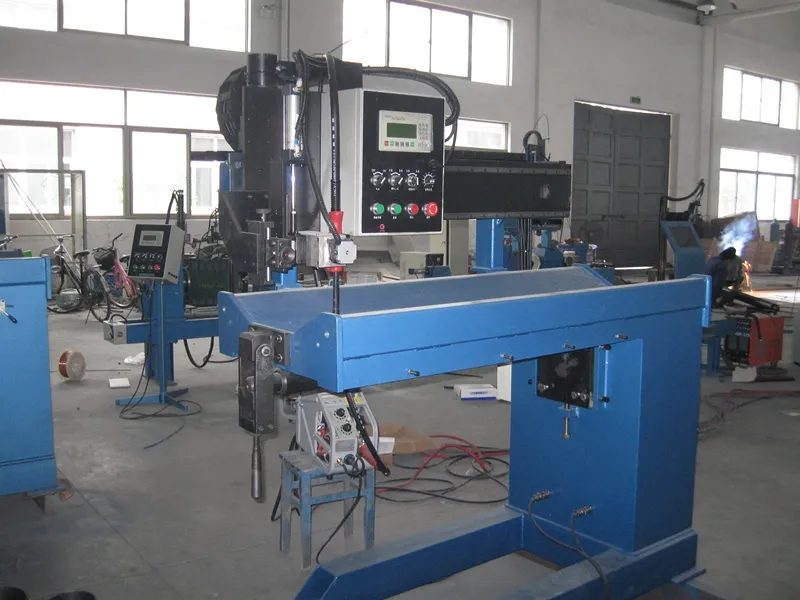

As a professional Automatic Welding Machine, this equipment body (ZF-1000 straight welding machine body) adopts cantilever upright structure. It consists of body, piano clamp structure, beam, central spindle, hook, welding elevator, welding guns micro-adjustment device, control system etc.
Features:
Beam is drove by DC gear motor.
The elevator device of guns is used pneumatic drive, to guide by linear rail, to ensure the accuracy.
This Seam Welding Machine is equipped with piano clamp fixture and copper pad, to ensure workpiece's uniform pressure and the form of back side seam weld. Distance of piano clamp is adjustable, to suit for different thick workpiece.
Electrical controller system:
PLC controller
Welding linear speed digital display, welding lap-joint pre-set.
This complete Automated Seam Welding System is configured with two functions of manual adjustment and automatic welding. The manual adjustment function achieves rotation speed of rotation handpiece, position adjustment of guns movement, elevator and welding guns. Main data:
| Control power | Single phase 50Hz AC 200V |
| Welding power | 3 phase 50Hz AC 380V |
| Tank thickness | 2~4.0mm |
| Tank diameter | 300≤φ≤500mm |
| Max tank length | ≤1000mm |
| Moving speed range | 100~1000mm/min(stepless) |
| Elevator stroke | 100mm |
| Micro-adjustment by manual for welding guns | Y,Z ±30mm |
| Compressed air | 0.3~0.5MPa |
