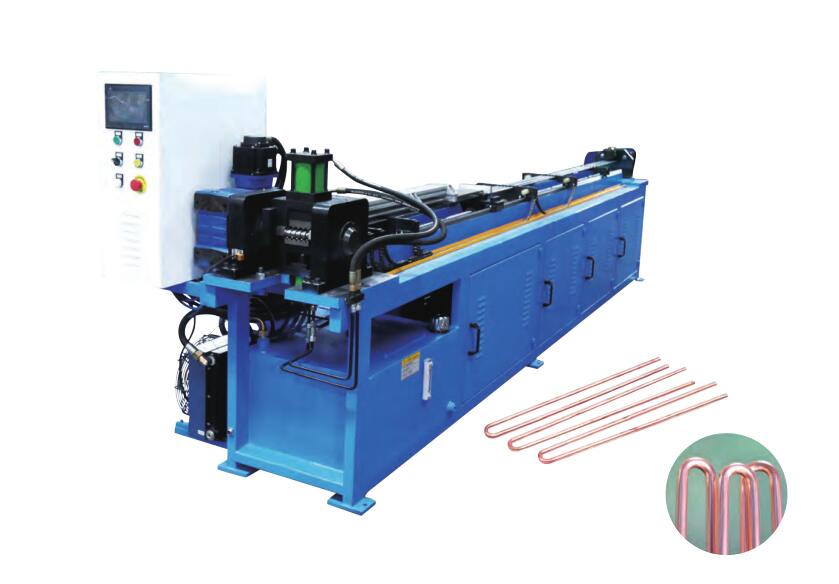

Semi-automatic Hairpin Bender-Precision Tube Bending Machine: A flexible choice for precise tube bendingIn the industrial chain of pipe processing and manufacturing, various types of equipment work in concert to jointly ensure the quality and efficiency of the products. The
Friction Welding Machine, with its powerful friction connection capability, provides a stable guarantee for the butt connection of thick-walled pipe fittings. The
Spot Welding Machine can quickly fix pipe fittings and accessories through efficient spot welding. The
Butt Welding Machine focuses on the flush butt of pipes to ensure smooth fluid transportation. The
Seam Welding Machine creates continuous and sealed welds, which is a key guarantee for the sealing performance of products such as pressure vessels. The
Laser Welding Machine for Steel Ring achieves the perfect formation of steel ring welding with the high precision of laser. The
Stud Welding Machine efficiently completes the connection between studs and pipe fittings, laying a solid foundation for subsequent assembly. The Semi-Automatic Hairpin Bend-Precision Tube Bending Machine, as a device that combines semi-automatic operation and precise tube bending performance, demonstrates unique flexibility and accuracy in the field of hairpin tube processing.
This semi-automatic hairpin pipe bender not only retains the flexibility of manual operation but also integrates precise mechanical control, achieving high-precision hairpin pipe bending. It can control the bending Angle error within ±0.2° and maintain the bending radius accuracy at the 0.1mm level, meeting the strict requirements for dimensional accuracy of hairpin tubes in various heat exchangers and refrigeration equipment. Compared with fully automatic equipment, it is more suitable for the production of small-batch and multi-specification hairpin tubes. Operators can flexibly adjust parameters according to actual needs and quickly switch between different tube bending specifications, greatly enhancing the adaptability of production.
From the perspective of coordination with various welding equipment, the Hairpin tubes processed by the Semi-Automatic Hairpin Bender-Precision Tube Bending Machine are closely coordinated with them in production. For example, in the manufacturing of small heat exchangers, the hairpin tubes bent and formed by this equipment are connected to the joints welded by the Friction Welding Machine. The precise bending size of the hairpin tubes ensures a good fit during welding, reducing the welding difficulty and defect rate. In the production of refrigeration equipment, the bent hairpin tubes are combined with the fixed brackets welded by the Spot Welding Machine. The regular shape of the bent tubes ensures the stability of installation and avoids the impact on equipment operation due to tube body shaking.
In addition, the semi-automatic feature of this equipment enables it to be flexibly matched with the production rhythm of various welding equipment. For production lines that use Butt Welding machines or Seam Welding machines for pipe welding, it can adjust the pipe bending speed according to the welding progress to avoid the situation of poor process connection. Meanwhile, its stable pipe bending quality echoes the precise Welding quality of the
Laser Welding Machine for Steel Ring, jointly enhancing the overall reliability of the product.
Not only that, the Semi-Automatic Hairpin benders -Precision Tube Bending Machine is easy to operate. Operators can be on duty after simple training, reducing the reliance on professional technicians. This is in line with the concept of easy operation pursued by equipment such as Stud Welding Machine, saving labor costs for enterprises.
In conclusion, the Semi-Automatic Hairpin Bender-Precision Tube Bending Machine, with its precise tube bending performance and flexible semi-automatic operation, Working in coordination with various Welding equipment such as Friction Welding Machine and Spot Welding Machine, it provides strong support for the efficient processing of hairpin tubes and the smooth connection of subsequent production links, making it an ideal choice for small and medium-sized manufacturing enterprises.
Technical Parameters
*Pipe No. bending at one time: 1-5 pcs
*Hairpin pipe length: Min 200-Max 1250 / 1650 / 2150 / 2650 / 3150 / 5000
*Bending mode: by servo motors
*Positioning & unloading mode: by servo motors
*Available copper pipe diameter: ∮ 5 - ∮ 16
*Bending center: 16-60mm
