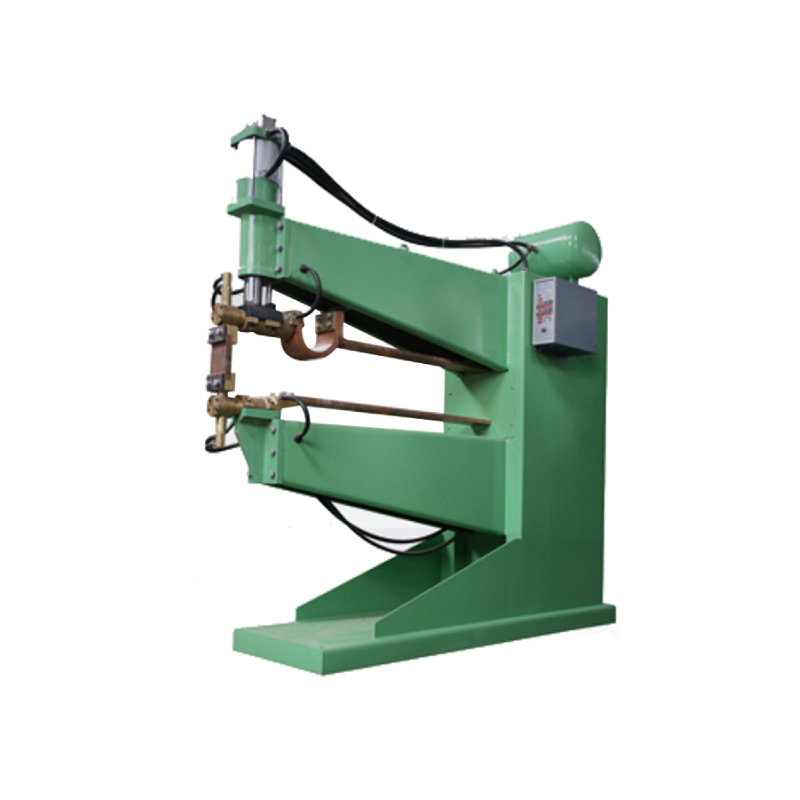

Professional Single Head Wire Mesh Spot Welding MachineMethod named for welders: Row welder series: DNW1/DNW2-P-L
DNW1: Pneumatic AC row welder with only upper cylinder
DNW2: Pneumatic AC row welder with Upper cylinder and lower cylinder
P: Rated capacity
L: Throat depth (Length of arm)
Feature and advantages:
Its controller can store 15 welding schedules, to suit different specification workpieces.
It delivers efficient weld performance and can complete welding on multiple weld points with only one time.
Two foot switches control 2 different welding schedules, to process 2 PCS spec. Workpiece separately.
The upper arm of machine is insulated, effectively preventing short circuit.
The machine body is made of thick steel sheet, not easy to deformation and features excellent rigidity.
Equipped with a water cooling transformer, this reliable Resistance Welding Machine adopts silicon sheets of 15000 gauss permeability for lamination. The internal cooling water circuit and full copper alloy core (instead of aluminum core) help reduce impedance and improve power utilization. With a 20% duty cycle, it fully meets the demands of long-time welding and delivers strong output power. Meanwhile, it enjoys longer service life, lower operating noise as well as a more compact and reasonable structure. Fitted with high-speed solenoid valves, the whole welding process is greatly accelerated to achieve outstanding working efficiency and cut down production costs.
The cylinder is made of high-precision, anti-friction duralumin material, which resists rust, lowers friction and running noise, and enables quicker loading, thus minimizing weld spatter.
Supported by advanced machining equipment and exquisite workmanship, the welding machine maintains high overall precision.
-Suitable for wire mesh, cover of wire mesh, storage rack, cage for garner, gridiron, wire shelving, storage shelving, trolleys etc.
Feature:
*There are Manual type and CNC automatic type, also can customize according to product requirements.
*Controller can store 15 welding schedules, to suit different specification workpieces
*2 foot switches control 2 different welding schedules, to control 2 PCS spec. Workpiece
*Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside,using full copper alloy core not aluminum, reducing imped-ance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, struc-ture is more compact and reasonable.
*Fast solenoid valve, making welding speed faster, speed is very very fast, efficiency is very high, therefore decreasing cost.
*Suitable for wire mesh, cover of wire mesh, storage rack, cage for garner, gridiron, wire shelving, storage shelving,trolleys etc.
