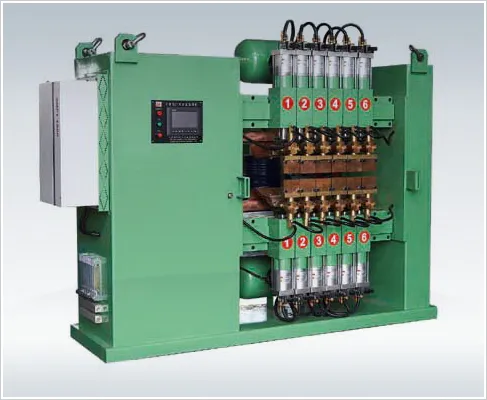

Wire Condenser Semi-Automatic Gantry Welding Machine
Features:
1.High working efficiency: This
Automatic Welding Machine can achieve an output of 1000 pieces per day.
2.Extremely low loose welding rate: merely 5 defective loose welds per 1000 finished products.
3.Ensure finished workpieces free from deformation and discoloration after welding.
4.Outstanding energy-saving performance: cuts energy consumption by 40% compared with conventional welding equipment.
5.Wear-out electrode replacement is simple and cost-effective: there is no need to replace the entire electrode and electrode base, only the worn electrode components need replacement, effectively lowering overall operating costs.
6.Uniform three-phase power input causes no adverse impact on local power grid.
7.Fitted with PLC touch screen and clear LED display panel for simple parameter adjustment and easy operation. Built-in guide rail and precise PLC control realize full-automatic welding operation, fully meeting the intelligent running demand of this
Resistance Spot Welding Machine.
8.The whole machine is constructed with thickened steel plates, featuring firm structure and strong anti-deformation capability.
9.Adopts microcomputer control system to guarantee high welding precision and stable running performance.
10.Equipped with water-cooled transformer assembled by 15000 gauss magnetic permeability silicon steel sheets. Built-in circulating cooling water design together with full-copper alloy core effectively reduces impedance and boosts power utilization rate. It supports 20% duty cycle to satisfy long-duration welding needs and maintain high output power, owning
11.longer service life, lower operating noise as well as more compact and reasonable overall structure.
12.Matched with high-speed solenoid valve accelerates welding pace, further lifting production efficiency and cutting comprehensive production costs for the
Spot Welding Machine.
13.The cylinder is made of high-precision anti-friction hard duralumin material, which is rust-proof, low-friction and low-noise. It realizes faster feeding speed and effectively reduces welding spatter generation.
Stable running quality with low failure rate greatly extends the overall service life of the equipment.

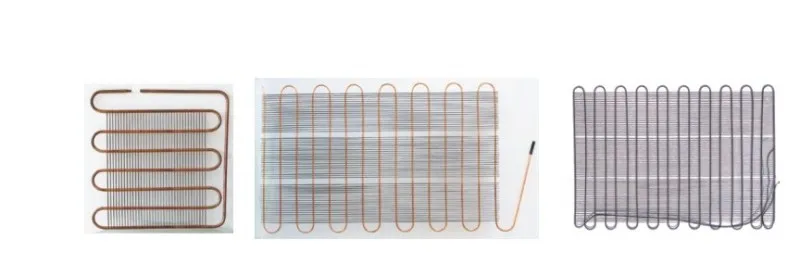

Application: Ideal welding equipment specially applicable for processing condenser and evaporator workpieces.
| | DNW3-250-1200 | DNW-150-3 | DNW2-150-4 |
| Rated capacity (KVA) | 250 | 150 | 150 |
| Transformer | 1200type 250KVA
MF inverter transformer | 150KVA AC
transformer | 150KVA AC
transformer |
| Rated voltage (V)/ Phase | 380/3 | 380/1 | 380/1 |
| Rated frequency(HZ) | 50 | 50 | 50 |
Max. short circuit
Current (KA) | 42.9 | 36 | 36 |
| Duty cycle(%) | 50 | 20 | 20 |
| Max. pressure(N) | 5315 | 5315 | 5315 |
Upper electrode
Stroke (mm) | 60 | 60 | 60 |
Lower electrode
Stroke (mm) | 40 | 40 | 40 |
Cooling water flow
(L/min) | 24 | 6 | 6 |
Max. welding width
each electrode
(mm) | 155mm | 100 | 100 |
Welding speed
(pcs/ 8h) | 1000 | 1000 | 1000 |
Overall dimension
(mm) L*W*H | 2600*670*1685 | 460*1100*1900 | 1250*680*1840 |
| Air pressure | ≥0.6mpa | ≥0.6mpa | ≥0.6mpa |
| Insulation class | F | F | F |
