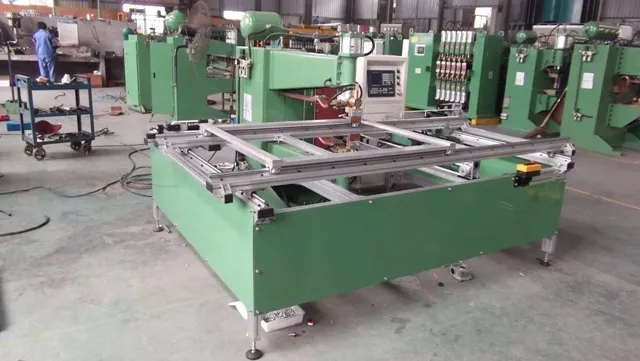

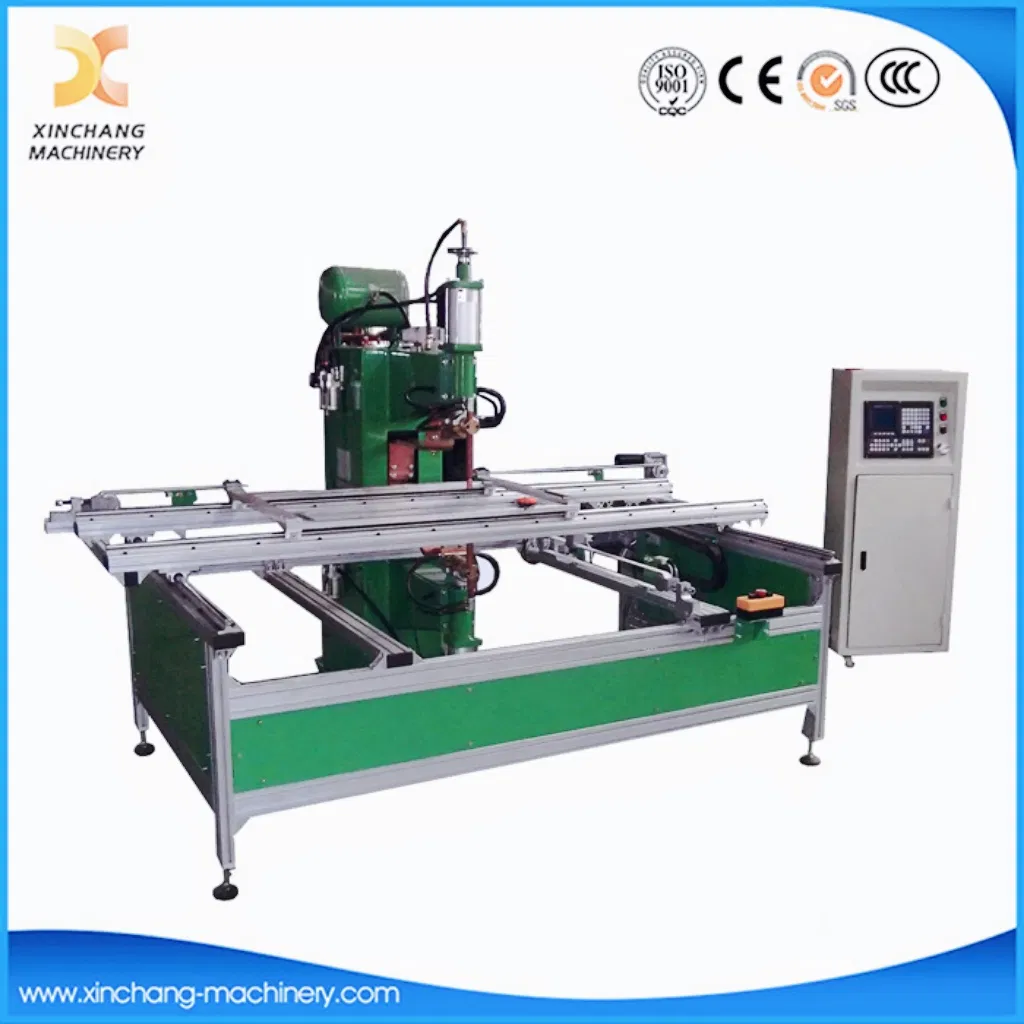

X Y Axis CNC Automatic Multi-Point Spot Welding Machine

Min. Order:1 Piece/Pieces

Supply Ability & Additional Information
Packaging & Delivery
Other information

Supply Ability & Additional Information

Supply Ability: 50sets/ Month

Packaging & Delivery

Selling Units:

Piece/Pieces

Advantages different from Others:

1, Can come true two directions auto-weld of X and Y axes, without manual operation, automaticity high, high efficiency.
2, Touch screen controller, accurate, convenient and easy
3, Adopt high quality parts and accessories, so equipments quality stable, lower fault rate and longer equipments life.
4, Equipped with fast imported solenoid valve to make cylinders act faster, thereby weld speed is faster.
5, Water cooling and fully copper core transformer so as to not easily burnout
6, Machine body with thick steel sheet, not easy to deformation

Key parameters only for reference

Item NO.	DNW-150-800
Rated capacity (KVA)	150
Current type	AC
Control transformer	AC
Rated voltage (V)	380±15%
Rated frequency (HZ)	50
Max. short circuit Current (KA)	24
Duty cycle (%)	20
Max. pressure (N)	5315
Upper electrode Stroke (mm)	60
Lower electrode Stroke (mm)	40
Cooling water flow (L/min)	4
Max. welding width (mm)	450×800,600×800,or customized as requirements.
Machine weight (Ton)	1
Air pressure	≥0.6mpa
Insulation class	F

We can customize according to your demands!

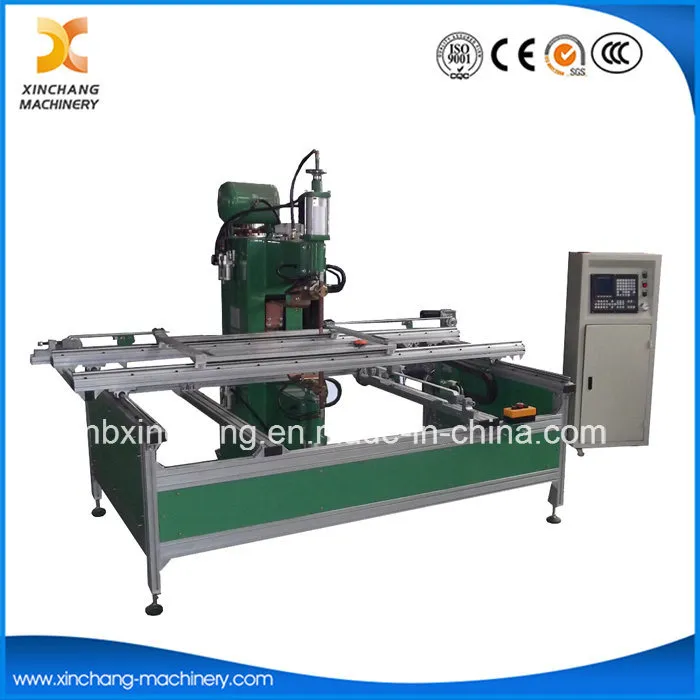

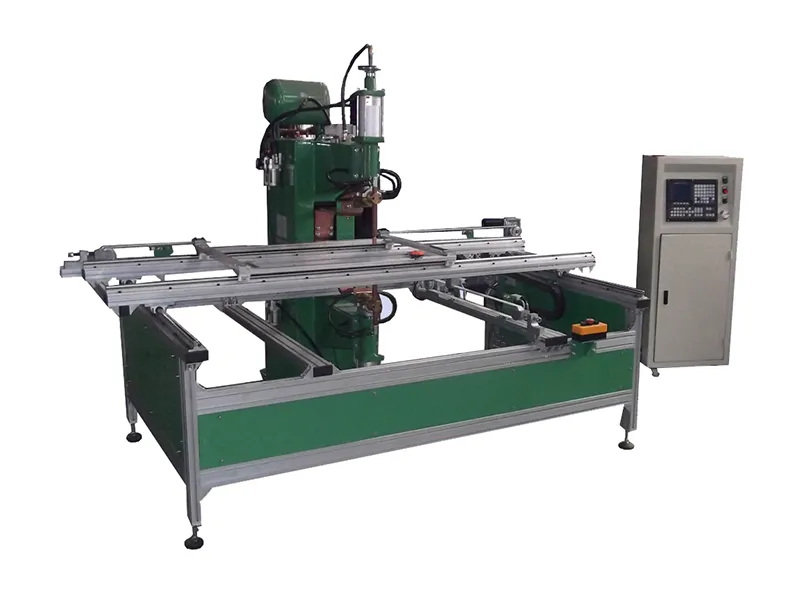

X Y Axis CNC Automatic Spot Welder Multi-Point Spot Welding Machine
