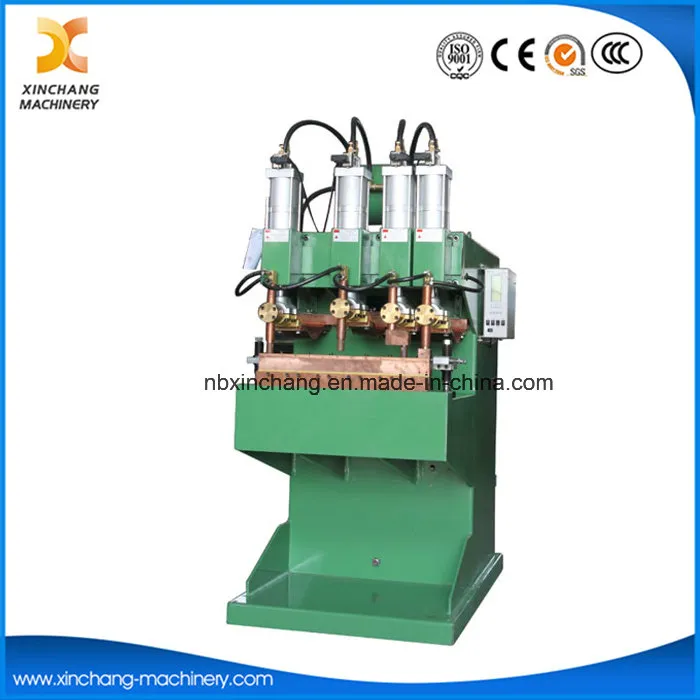

Automatic Multiple Heads Spot Welding Machine for Storage Stents
This
Multi-Spot Welding Equipment specially designed for the spot welding of storage stents. Integrating advanced
Industrial Spot Welding System technology, this automatic equipment stands out from ordinary
Resistance Spot Welding Machine with its multiple heads synchronous welding design, full-automatic operation and flexible customization capability. It is widely used in the production of various storage stents, including warehouse storage racks, shelf brackets, storage cages and other products, providing stable, efficient and precise welding solutions for storage equipment manufacturers, and becoming an indispensable core production equipment for improving production efficiency and product quality.
Core Application & Customization Service

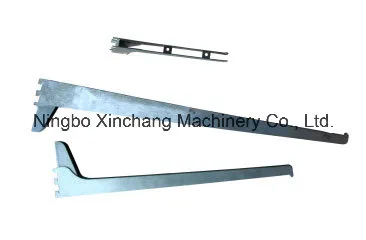

This specialized Spot Welding Machine is exclusively used for the spot welding processing of storage stents. Storage stents are key components in logistics warehousing, industrial storage and commercial storage fields, and their structural stability and load-bearing capacity directly depend on the quality of welding joints. Unlike general Resistance Spot Welding Machine that is not targeted at storage stent processing, this automatic multiple heads equipment is optimized for the welding characteristics of storage stent materials (such as carbon steel, stainless steel) and structural requirements, ensuring that each welding point is firm, uniform and aesthetically pleasing, and effectively enhancing the overall structural strength and service life of storage stents.
Key Performance Features
- Multiple Heads Synchronous Welding for High Efficiency: Adopting a multiple heads integrated design, the machine can complete the spot welding of multiple positions of the storage stent at one time, which is far more efficient than single-head Spot Welding Machine. The synchronous welding design ensures the consistency of welding points, avoids the deviation caused by separate welding of multiple positions, and greatly shortens the single product processing cycle, fully meeting the large-scale mass production needs of storage stent manufacturers.
- Advanced Industrial Spot Welding System: Equipped with a high-performance Industrial Spot Welding System, the machine realizes precise control of welding current, welding time and welding pressure. The intelligent automatic control system can automatically adjust parameters according to the thickness and material of the storage stent, avoiding welding defects such as false welding, missing welding and excessive indentation, and ensuring stable and consistent welding quality.
- Full-Automatic Operation for Labor Saving: As an automatic Multi-Spot Welding Equipment, it integrates automatic workpiece feeding, automatic positioning, automatic welding and automatic blanking functions. This full-automatic design greatly reduces labor intensity, avoids the influence of manual operation on welding quality, and further improves production efficiency, making it suitable for high-intensity continuous production.
- Superior Compatibility & Versatility: This multi-functional equipment is compatible with various types of storage stents, including light-duty storage racks, heavy-duty warehouse shelves, storage cages, pallet racks and other products. It can be flexibly adjusted according to the structural characteristics of different stents, and is also suitable for the spot welding of other metal components, with strong versatility.
- Stable Performance with High-Quality Components: The whole machine adopts high-quality core components, including durable welding electrodes, stable conductive parts and high-precision pneumatic components. Compared with ordinary Resistance Spot Welding Machine, it has better stability, lower failure rate and longer service life. The optimized heat dissipation system ensures that the machine can work continuously for a long time, adapting to the high-intensity production needs of the factory.
- Easy Operation & Convenient Maintenance: The machine is equipped with a humanized control panel, which is simple and easy to operate. Operators can quickly master the operation method without professional training. At the same time, the equipment adopts a modular design, which is convenient for daily maintenance and parts replacement, reducing maintenance costs and downtime.
Model
Unit
Item | DTN-25 | DTN-40 | DTN- 80-1 | DTN-100-1 | DTN-150-1 | DTN-200-1 | DTN- 80-2 | DTN-100-2 | DTN-150-2 | DTN- 200-2 |
| Rated capacity | KVA | 25 | 40 | 80 | 100 | 150 | 200 | 80 | 100 | 150 | 200 |
| Primary volts. | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Frequency | HZ | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max short circuit current | KA | 15 | 18 | 28 | 33 | 38 | 43 | 28 | 33 | 38 | 43 |
| Duty cycle | % | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Max pressure | N | 3000 | 3000 | 6000 | 6000 | 12000 | 12000 | 7900 | 7900 | 12000 | 12000 |
| Operational stroke | MM | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
Electrode
Stroke | MM | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Arm length and distance | MM | 350*220 | 350*220 | 350*250 | 350*250 | 350*270 | 350*270 | 400*300 | 400*300 | 400*300 | 400*300 |
| Cooling water flux | L/min | 3 | 3 | 4 | 4 | 6 | 6 | 4 | 4 | 6 | 6 |
| Max weld capacity(steel) | MM | 2+2 | 3+3 | 4+4 | 5+5 | 6+6 | 6+6 | 4+4 | 5+5 | 6+6 | 6+6 |
