Method named for welders:

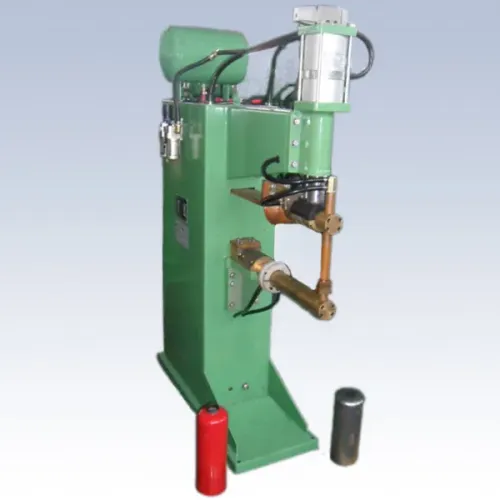

Spot(projection) welders series: DTN-P-1(2)-L
DTN: Pneumatic AC mains frequency spot(projection) welders
P: Rated capacity
1: Lower arm can not be adjustable; 2: Lower arm can be adjustable
L: Throat depth, namely arms length
Advantage & Feature:
Built with thick steel sheet machine body, the equipment is not easy to deform, laying a solid structural foundation for stable operation of this Resistance Spot Welding Machine. Secondary electric conduction parts adopt upper insulation design, effectively preventing short current accidents triggered by scrap iron or workpieces.
The electrode moving speed is freely adjustable, which lessens impacts on workpieces and lowers operating noise.
Equipped with microcomputer control system, it runs with high precision and stable performance, capable of storing 15 sets of welding schedules to match products of various specifications, fully realizing intelligent operation of this Automatic Welding Machine. The built-in controller can achieve automatic current compensation to keep consistent welding quality, and supports preheating and tempering treatment for certain raw materials.
It is fitted with water cooling transformer assembled by 15000 gauss permeability silicon steel sheets. Adopting full copper alloy inner water-cooled core, it cuts down impedance and boosts power utilization. With 20% duty cycle, it meets demands for long-duration welding and high power output. This core configuration extends service life, reduces running noise and achieves a more compact and rational layout, becoming a core performance advantage of standard Spot Welding Machine.
Matched with high-speed solenoid valve, it accelerates overall welding pace, lifts production efficiency and effectively cuts down production costs.
The cylinder is made of high-precision anti-friction hard duralumin material, featuring rust resistance, low friction coefficient and quiet rapid feeding movement, which efficiently reduces welding spatter.
Featuring stable overall quality and low failure rate, the equipment boasts an extended whole-service lifespan.
It is widely applicable to metal wire processing, electrical appliance manufacturing, metal sheet fabrication, microelectronics and other industrial production fields.
Model
Unit
Item | DTN-25 | DTN-40 | DTN-80-1 | DTN-100-1 | DTN-150-1 | DTN-200-1 | DTN-80-2 | DTN-100-2 | DTN-150-2 | DTN-200-2 |
| Rated capacity | KVA | 25 | 40 | 80 | 100 | 150 | 200 | 80 | 100 | 150 | 200 |
| Primary volts. | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Frequency | HZ | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max short circuit current | KA | 15 | 18 | 28 | 33 | 38 | 43 | 28 | 33 | 38 | 43 |
| Duty cycle | % | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Max pressure | N | 3000 | 3000 | 6000 | 6000 | 12000 | 12000 | 7900 | 7900 | 12000 | 12000 |
| Operational stroke | MM | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
Electrode
Stroke | MM | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Arm length and distance | MM | 350*220 | 350*220 | 350*250 | 350*250 | 350*270 | 350*270 | 400*300 | 400*300 | 400*300 | 400*300 |
| Cooling water flux | L/min | 3 | 3 | 4 | 4 | 6 | 6 | 4 | 4 | 6 | 6 |
| Max weld capacity(steel) | MM | 2+2 | 3+3 | 4+4 | 5+5 | 6+6 | 6+6 | 4+4 | 5+5 | 6+6 | 6+6 |
