Features:

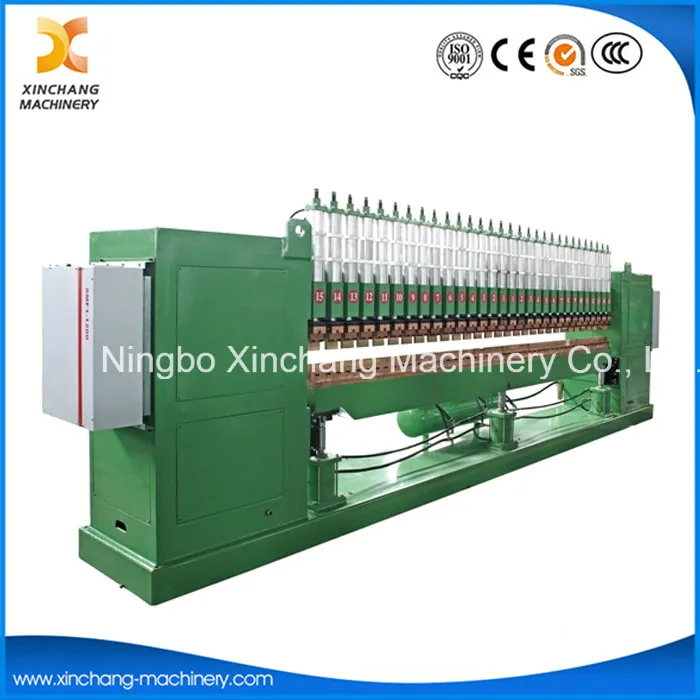

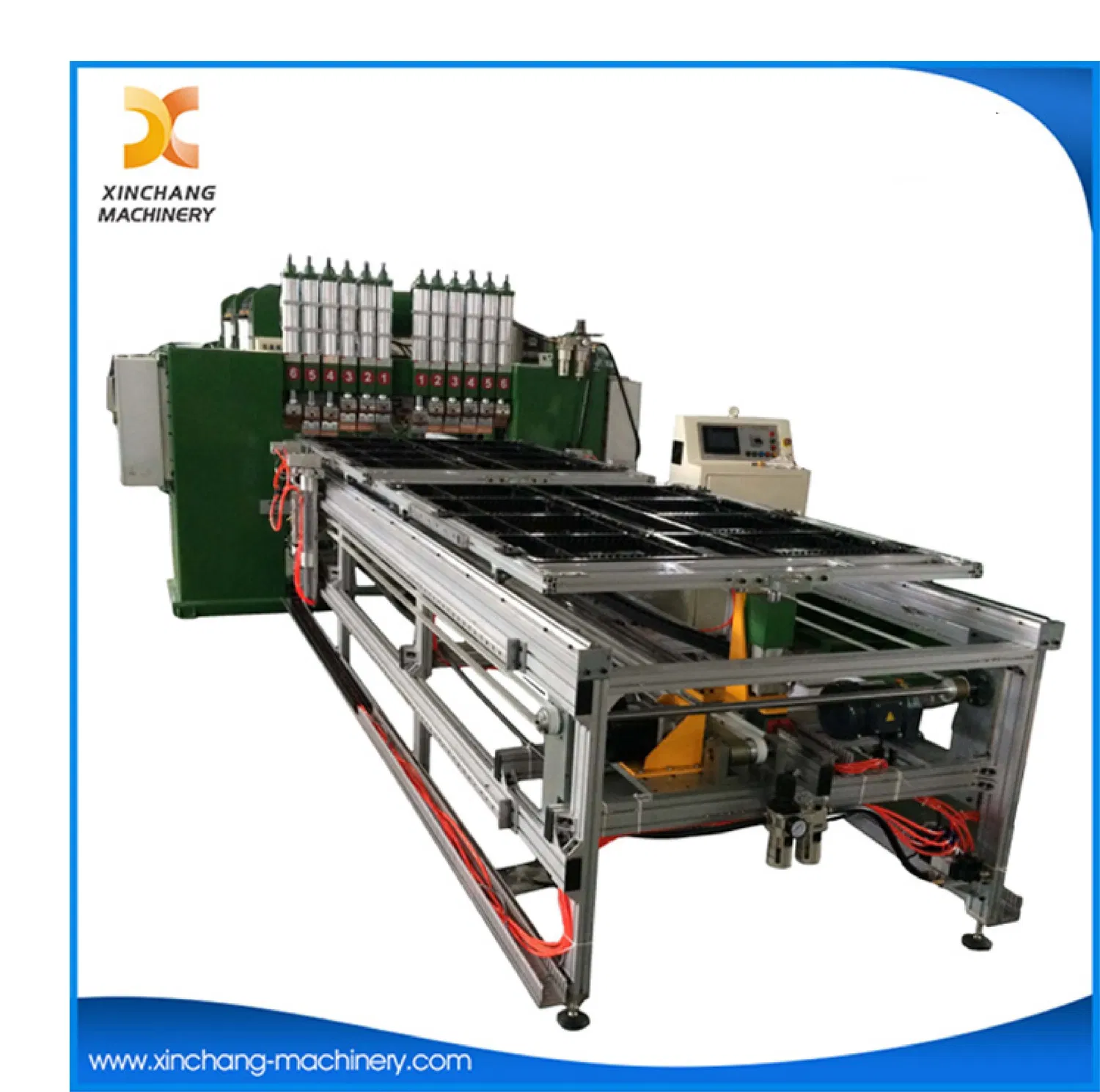

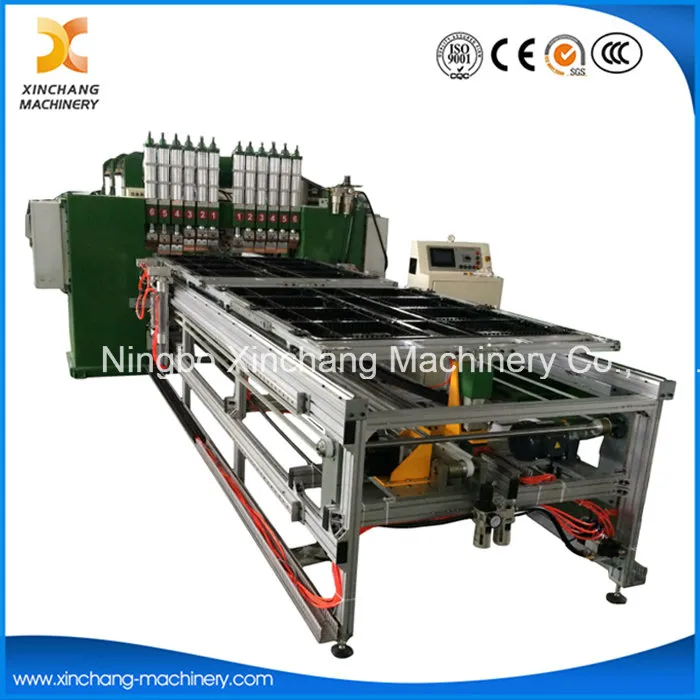

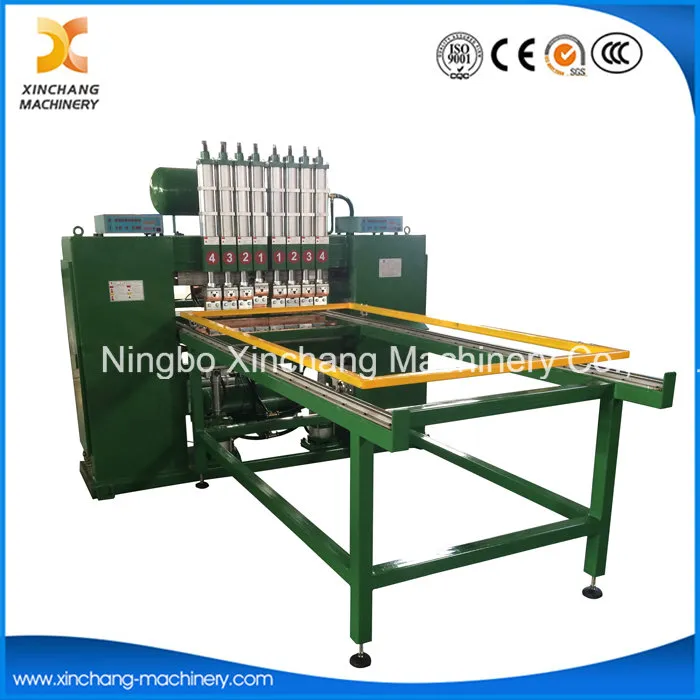

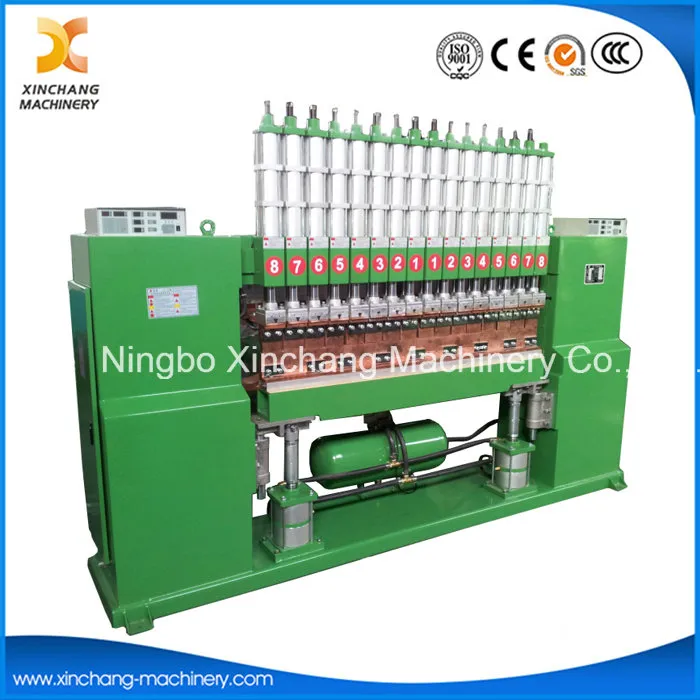

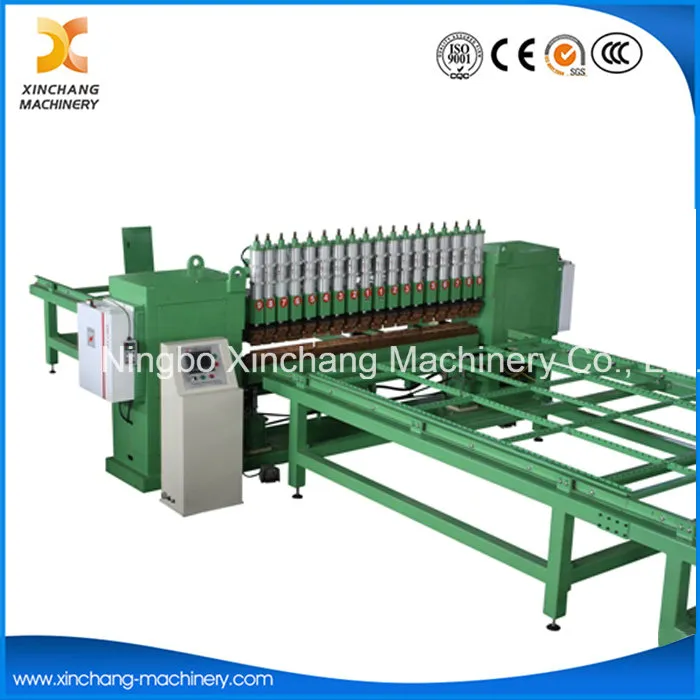

-This machine is multi head type structure, can weld multi-spot for one time.
-Control system: Microcomputer control, can store 15 sets welding schedule which can be adjust independently, very easy to achieve one or more electrode welding parameters independently adjusted so as to achieve welding requirements for different sizes, different shapes products, perfectly fitting diversified processing demands of Wire Mesh Spot Welding.
-Users can set by himself action sequence, number and welding schedule of cylinder, to achieve the welding requirements on different products.
-Large screen display intuitive and clear.
-Data set and adjusted by touch switch, easy and fast.
-Machine body of thick steel sheet, not easy to deformation, good rigidity, ensuring stable running of the overall Wire Mesh Spot Welding System in long-term operation.
-Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core not aluminum, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
-Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
-Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
-Our machining equipment is more advance, fine workmanship, so welding machine's precision is higher.
-Lower loose weld rate, less welding dregs.
-It is easy to operate machine. Performance of machine is more steady, can be used 24 hours, lifetime 15 years.
-Electrode: With CuCrZr materials, very anti-friction. By means of water cooling, longer service life.
-Compressed air system: Equipment is installed air processor which is used for clean the compressed air, and with muffler to reduce the noise. Also it is with compressed air tank to stabilize the air pressure.
-Cooling water system: There are transformers cooling, up electrode cooling, lower electrode cooling and other copper block cooling. It come true the water distribution by flowmeter. Each flowmeter can be adjusted individually to make machine working normal, without damages.
Designed with multi-point synchronous welding advantages, this Multi Head Welding Machine For Wire Mesh is also widely used in storage rack, protecting fence etc. Model
Item | DNW3-2x100-C | DNW3-2x150-C | DNW3-2x200-C |
| Rated capacity | KVA | 2x100 | 2x150 | 2x200 |
| Rated primary vtg. | V | 380 | 380 | 380 |
| Rated frequency | HZ | 50 | 50 | 50 |
| Max short circuit current | KA | 30 | 36 | 42 |
| Duty cycle | % | 20 | 20 | 20 |
| Max forging pressure | N | 5315 | 5315 | 5315 |
| Upper electrode stroke | mm | 60 | 60 | 60 |
| Lower electrode stroke | mm | 40 | 40 | 40 |
| Cooling water flux | L/min | 6 | 6 | 6 |
| Width of upper electrode | mm | 90 | 90 | 90 |
Max welding width (C) " C" is stand for " Max welding width"
| mm | 800-4000 | 800-4000 | 800-4000 |
