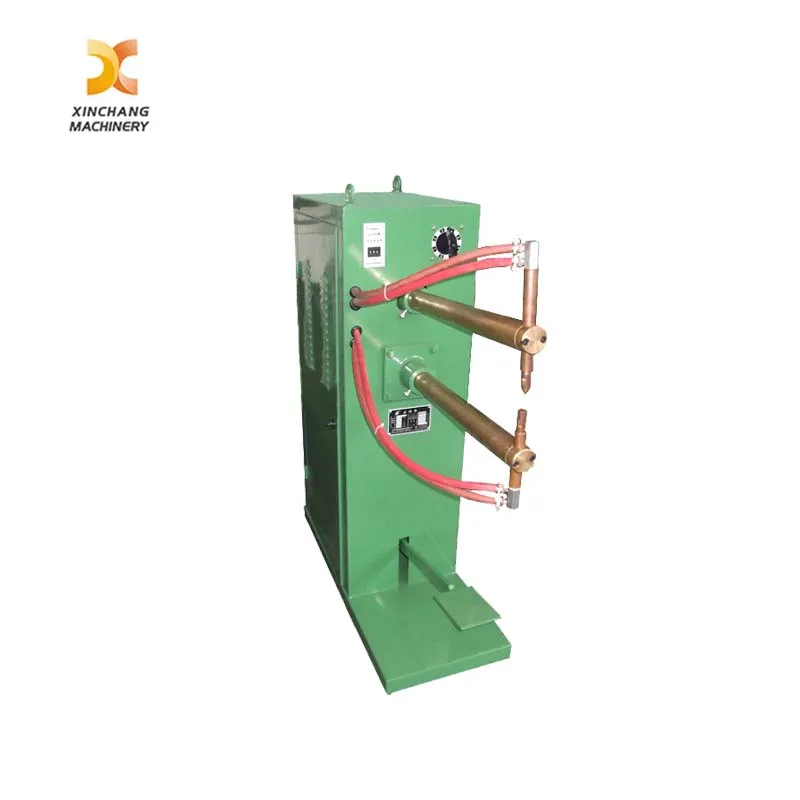

Automotive Application AC Rocker Arm Spot Welder

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Brand: xinchang

Supply Ability & Additional Information

Supply Ability: 500 Sets/ Year

Packaging & Delivery

Selling Units:

Piece/Pieces

Alternating Current Rocker Arm Spot Welding Machine for Automobile Industry

Our Resistance Spot Welder features a simple structure and intuitive operation, delivering stable performance with an extended service life.

Equipped with a high-performance water cooling transformer, it adopts 15000 gauss permeability silicon steel sheets and a full copper alloy core for assembly. Built-in circulating cooling water effectively lowers impedance and boosts power efficiency. With a 20% duty cycle, this Spot Welding Machine easily handles long-duration welding tasks and maintains strong output power consistently.

For enhanced precision in automated production, our CNC Resistance Welding Machine integrates this reliable transformer design as standard. The overall unit boasts a compact and well-optimized layout, operating with low noise while further prolonging the overall service life. It balances practicality, durability and operational stability perfectly for diverse welding applications.

Model Items		DN-16	DN-25	DN-35	DN-16S	DN-25S	DN-35S
Rated capacity	KVA	16	25	35	16	25	35
Input volts	V/HZ	380/50	380/50	380/50	380/50	380/50	380/50
Max short circuit current	KA	12	15	18	12	15	18
Duty cycle	%	20	20	20	20	20	20
Throat depth	mm	360	360	360	360	360	360
Distance between Two arms	mm	200	200	200	200	200	200
Electrode stroke	mm	30	30	30	30	30	30
Cooling water flow	L/min	2	2	2	2	2	2
Control method		Foot switch	Foot switch	Foot switch	Time relay	Time relay	Time relay
Weight	Kg	110	150	200	110	150	200
Max welding capacity(mild steel)	mm	2+2	2.5+2.5	3+3	2+2	2.5+2.5	3+3

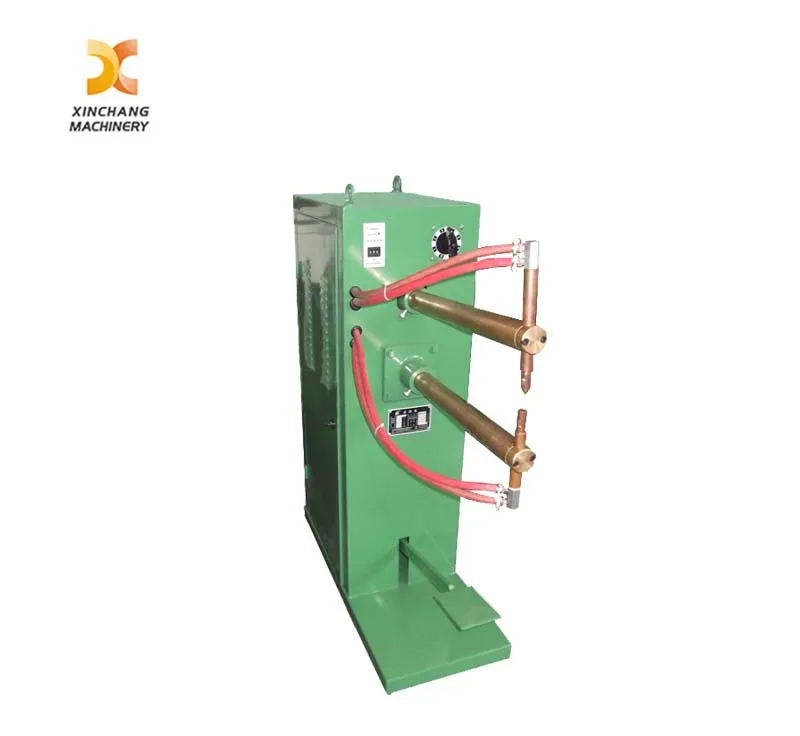

Alternating Current Rocker Arm Spot Welders Machine for Automobile Industry
