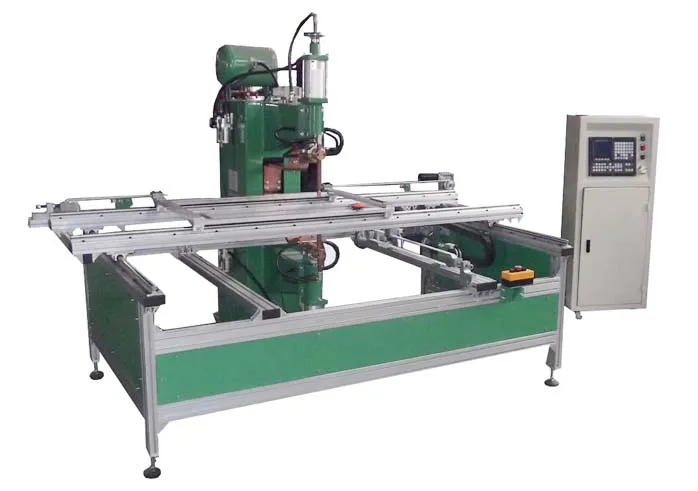

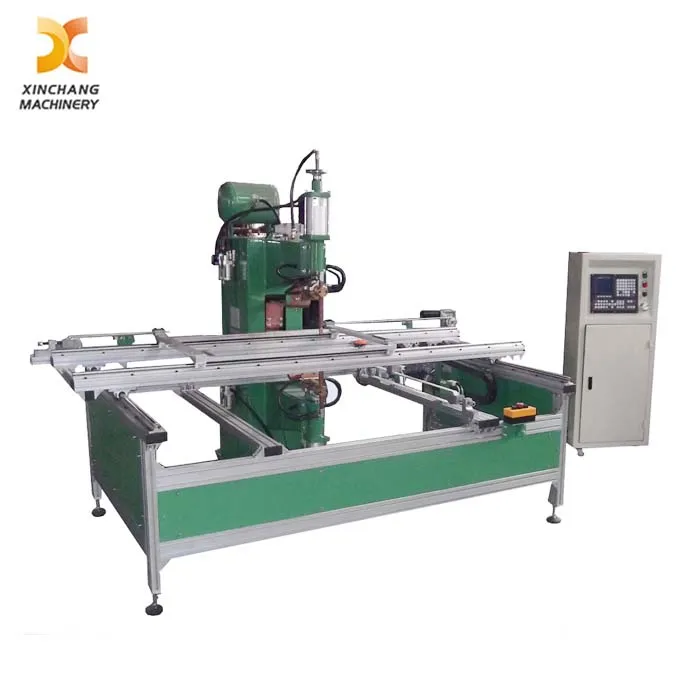

XY Axis Multi-Head Automatic Pneumatic Spot Welder

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Brand: xinchang

Supply Ability & Additional Information

Supply Ability: 50sets/ Month

Packaging & Delivery

Selling Units:

Piece/Pieces



Spot Welding Machine for Wire mesh2



Our Advantages:

This Automatic Type equipment enables auto-welding along X and Y two axes, realizing fully unmanned operation. It features high automation and outstanding working efficiency for production.

Fitted with an LCD controller, the Spot Welding Machine delivers precise operation with simple and user-friendly control.

We select premium parts and accessories for the unit, keeping the Resistance Spot Welding Machine running stably with low failure rate and extended service life.

It is equipped with high-speed imported solenoid valves to accelerate cylinder movement and further improve welding speed.

Adopting water cooling system and full copper core transformer, the machine can effectively avoid burnout during long-term operation.

The machine body is made of thick steel plates, which is firm and not prone to deformation.

Item NO.	DNW-150-800
Rated capacity (KVA)	150
Current type	AC
Control transformer	AC
Rated voltage (V)	380±15%
Rated frequency (HZ)	50
Max. short circuit Current (KA)	24
Duty cycle (%)	20
Max. pressure (N)	5315
Upper electrode Stroke (mm)	60
Lower electrode Stroke (mm)	40
Cooling water flow (L/min)	4
Max. welding width (mm)	450×800,600×800,or customized as requirements.
Machine weight (Ton)	1
Air pressure	≥0.6mpa
Insulation class	F
