Features:
This

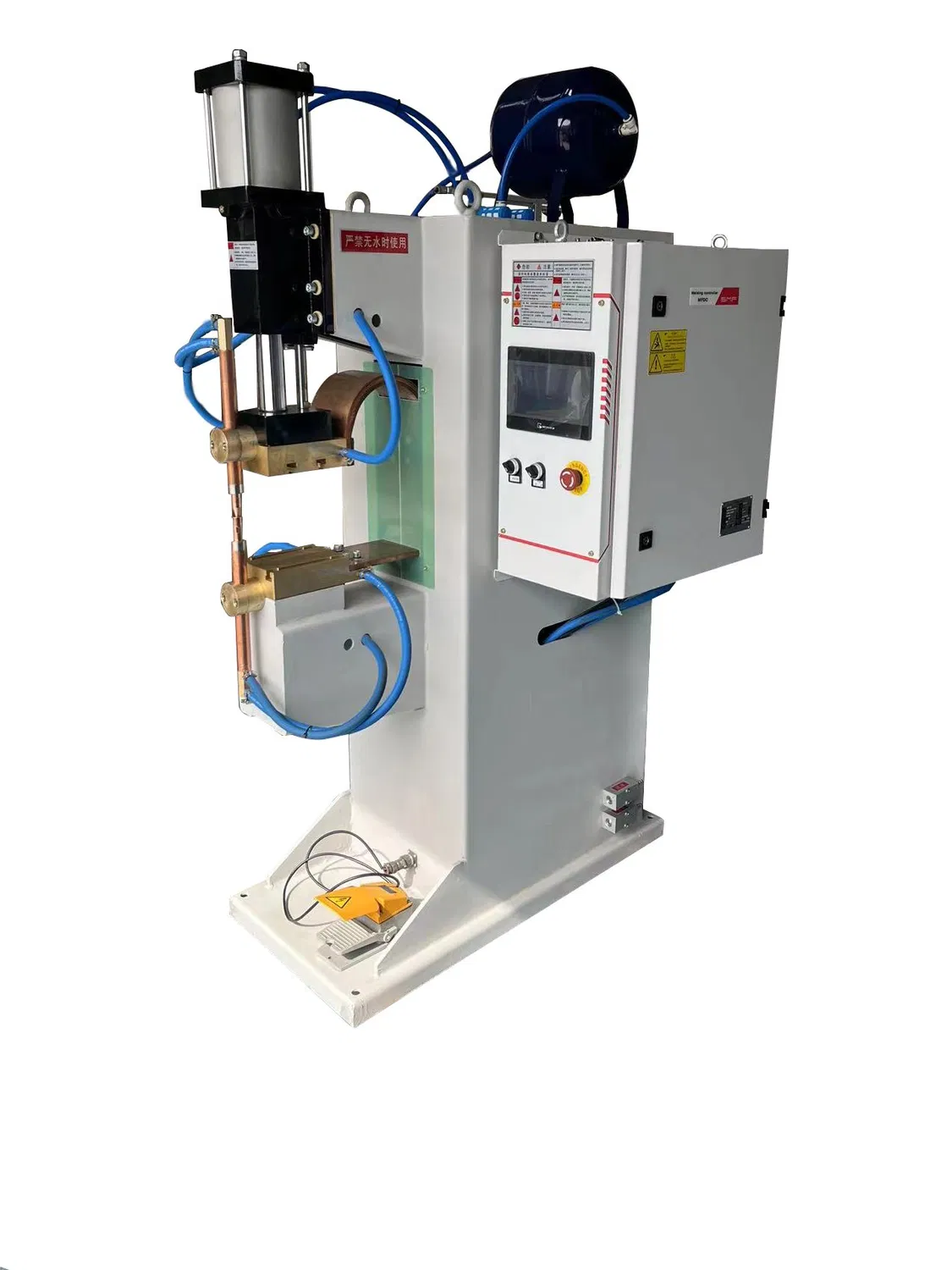

Resistance Spot Welding Machine adopts medium frequency inverter controller, with direct current welding current reaching 1000Hz.
It delivers outstanding energy-saving performance, which enables lower welding current and electrode pressure during operation.
Guaranteed superior working quality. As a reliable
Spot Welding Machine, it boasts excellent welding stability and consistency with fewer welding craters formed.
Three-phase power input is evenly distributed, effectively reducing impact load on the power grid.
Compared with traditional
AC Welding Equipment, this
Resistance Welding Machine can cut power consumption by 40%.
It is fitted with PLC touch screen and high-definition LED display for intuitive and clear parameter viewing.
Constitute:
Robust machine body made of thick steel sheet for durable service.
Advanced microcomputer control system ensures precise operation.
Water-cooled transformer is assembled with silicon steel sheets featuring 15000 gauss magnetic permeability.
High-speed solenoid valve greatly accelerates overall welding efficiency.
The cylinder is crafted from high-precision and wear-resistant duralumin material.
This equipment is specially designed and perfectly applicable for spot welding processing of aluminum plates.
Product Parameters | Model | DTMZ-12 | DTMZ-28 | DTMZ-50 | DTMZ-90 | DTMZ-160 | DTMZ-250 | DTMZ-2× 160 | DTMZ-2× 250 |
| Rated capacity | KVA | 12 | 28 | 50 | 90 | 160 | 250 | 320 | 500 |
| Primary voltage | V | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Max current firstly input | A | 55 | 140 | 340 | 600 | 840 | 1280 | 1680 | 2560 |
| Max current secondary output | KA | 7 | 12.8 | 20 | 25 | 30 | 42.9 | 60 | 80 |
| Secondary voltage | V | 6.0 | 7.5 | 8.0 | 10.0 | 10.8 | 12.5 | 10.8 | 12.5 |
| Cooling water flux | L/min | 6 | 6 | 8 | 8 | 10 | 10 | 12 | 12 |
| Duty cycle | % | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Atmosphere temperature | º C | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 |
| Humidity | % | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
