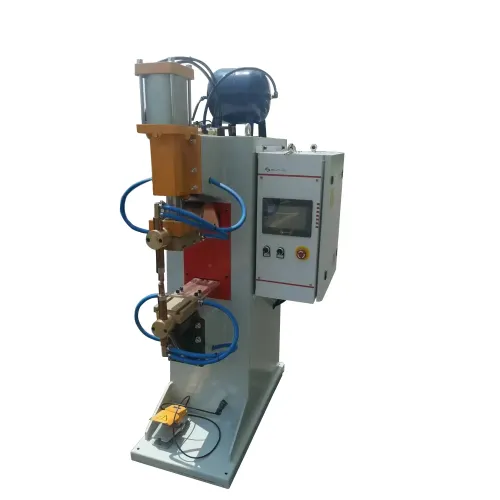

Longlife Projection Spot Welder for Aluminum Workpiece

This CNC Spot Welding Machine integrates intelligent digital control to achieve accurate adjustment of welding current, pressure and time. It ensures consistent welding quality for metal workpieces and reduces operational errors in batch processing.

Adopting classic welding principles, it serves as a high-precision Resistance Spot Welding Machine, fitting various metal connection processes. The advanced medium-frequency configuration endows it with efficient energy-saving advantages as an excellent MFDC Spot Welding Machine. With automated operation and stable output, it stands out as a high-performance Spot Welder, perfectly matching intelligent and high-efficiency production lines.

Features:
^{_{1, Current is commutated to DC, little reactance.
2, Duty cycle is higher, power is bigger, so it can work continually for long time, so it is suitable for big work-piece (for example: Aluminium 4+4 mm), little spatter.
3, Power factor is better,
4, Lower strike to electric fence, having no influence to other equipments.
5, The welder can work continually 24 hours every day, life is up to 15 years.

Applications: Be widely used in low carbon steel, sheet steel plated, brass, aluminium and aluminium alloy, multi-layers sheet steel weld.}}

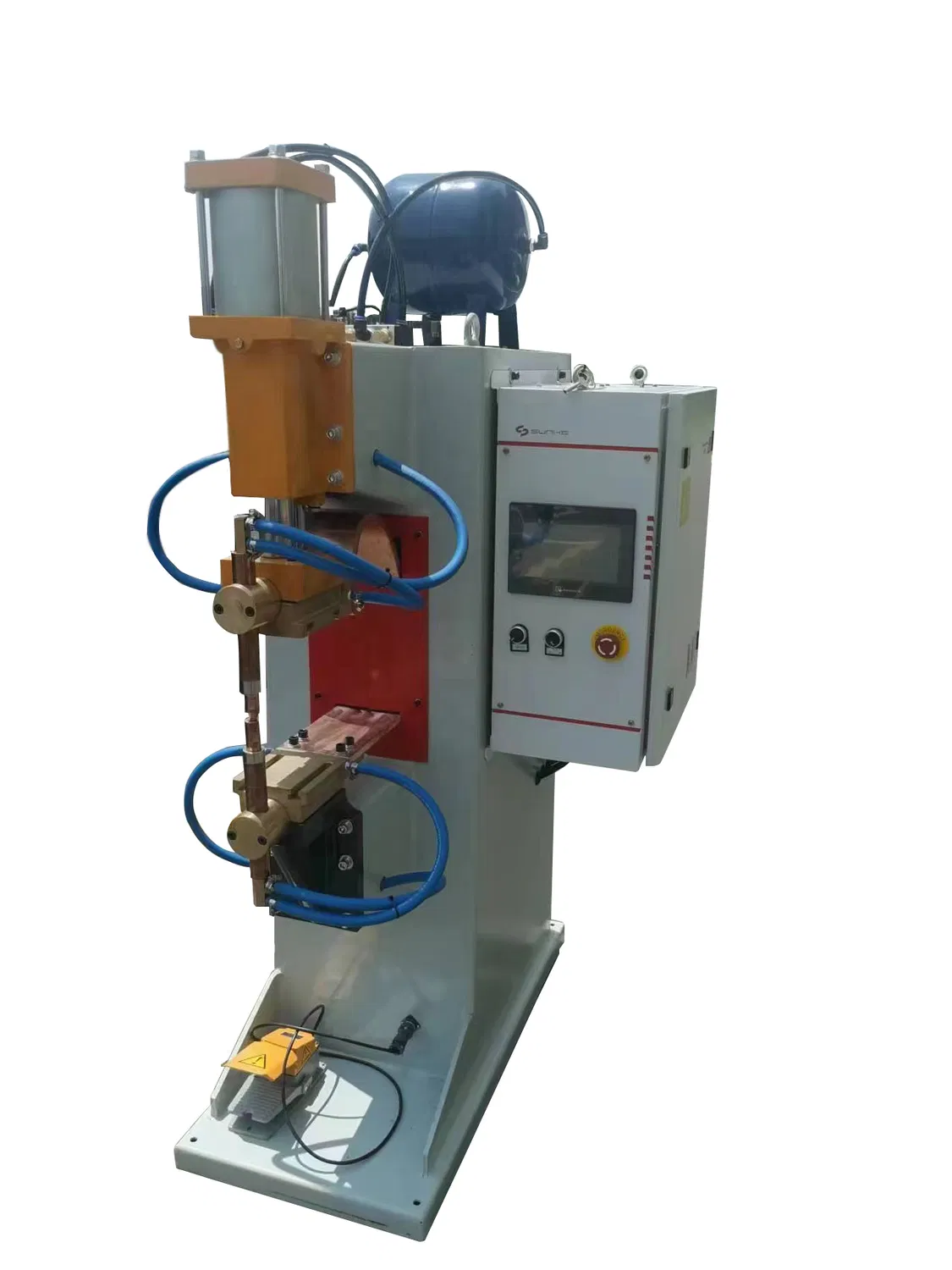

Compositions:
_{^{1, Machine body: Use vertical reinforcing structure, adopt good quality thickness steel plate to weld.
2, Control system: MF control system.
3, MF inverter transformers: Control current is DC,.
4, 3 layers pressurization cylinders: 3 layers pressurization cylinders,and cylinders adopt high accurate, anti-friction hard material, which is duralumin.
5, Electrode: With CuCrZr materials and by means of water cooling.
6, Compressed air system: Equipment is installed air processor and with muffler. Also it is with compressed air tank.
7, Cooling water system: There are transformers cooling, up electrode cooling, lower electrode cooling and other copper block cooling.}}

			DTNZ-63	DTNZ-100	DTNZ-160	DTNZ-3× 63	DTNZ-3× 100	DTNZ-3× 160	DTNZ-3× 200
Rated capacity		KVA	63	100	160	3*63	3*100	3*160	3*200
Voltage input		V/phase	380/1	380/1	380/1	380/3	380/3	380/3	380/3
Rated frequency		HZ	50	50	50	50	50	50	50
Duty cycle		%	50	50	50	50	50	50	50
Throat depth		MM	350	350	350	350	350	350	350
Electrode stroke		MM	100	100	100	100	100	100	100
Max pressure		N	7800	7800	12000	12000	12000	24000	24000
Cooling water flux		L/Min	6	6	6	12	12	12	12
Weight		Kg	400	500	600	1000	-	-	-
Max welding capacity	Low carbon steel	MM	3+3	3.5+3.5	4+4	5+5	6+6	7+7	8+8
Max welding capacity	Aluminium	MM	1+1	1.5+1.5	2.5+2.5	3+3	3.5+3.5	4+4	4.5+4.5
