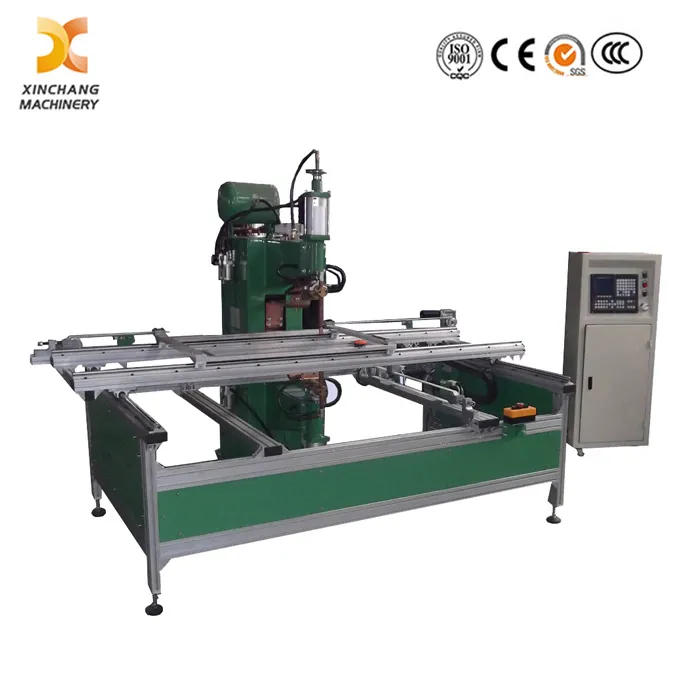

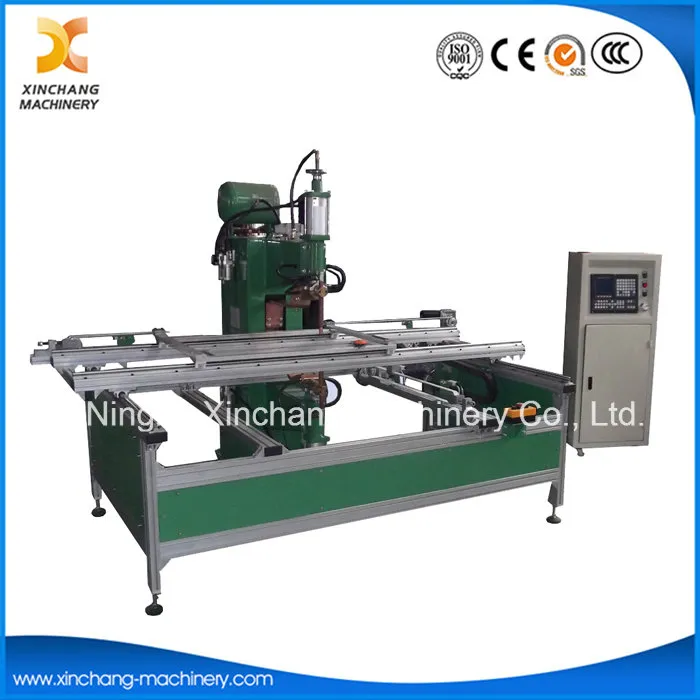

CNC Multiple Heads Spot Welding Machine for Storage Wire Shelf
Advantages different from Others 1.This
Automatic Type spot welding equipment realizes unmanned dual-direction auto-welding on X and Y axes. The
Resistance Spot Welding Machine boasts excellent automation and high working efficiency.
2. Equipped with an LCD controller, the Spot Welding Machine ensures accurate, convenient and easy operation.
3. It adopts high-quality parts and accessories, delivering stable performance, low failure rate and longer service life.
4. Fitted with high-speed imported solenoid valves, cylinders respond more quickly to raise overall welding speed.
5. The combination of water cooling system and full copper core transformer prevents the device from burning out easily.
6. The machine body is constructed with thick steel sheets, keeping it free from deformation.
-It is easy to operate machine. Performance of machine is more steady, can be used 24 hours, lifetime 15 years.
| DTNZ-63 | DTNZ-100 | DTNZ-160 | DTNZ- 3× 63 | DTNZ- 3× 100 | DTNZ- 3× 160 | DTNZ- 3× 200 |
| Rated capacity | KVA | 63 | 100 | 160 | 3*63 | 3*100 | 3*160 | 3*200 |
| Voltage input | V/phase | 380/1 | 380/1 | 380/1 | 380/3 | 380/3 | 380/3 | 380/3 |
| Rated frequency | HZ | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Duty cycle | % | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Throat depth | MM | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
| Electrode stroke | MM | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Max pressure | N | 7800 | 7800 | 12000 | 12000 | 12000 | 24000 | 24000 |
| Cooling water flux | L/Min | 6 | 6 | 6 | 12 | 12 | 12 | 12 |
| Weight | Kg | 400 | 500 | 600 | 1000 | - | - | - |
| Max welding capacity | Low carbon steel | MM | 3+3 | 3.5+3.5 | 4+4 | 5+5 | 6+6 | 7+7 | 8+8 |
| Aluminium | MM | 1+1 | 1.5+1.5 | 2.5+2.5 | 3+3 | 3.5+3.5 | 4+4 | 4.5+4.5 |
