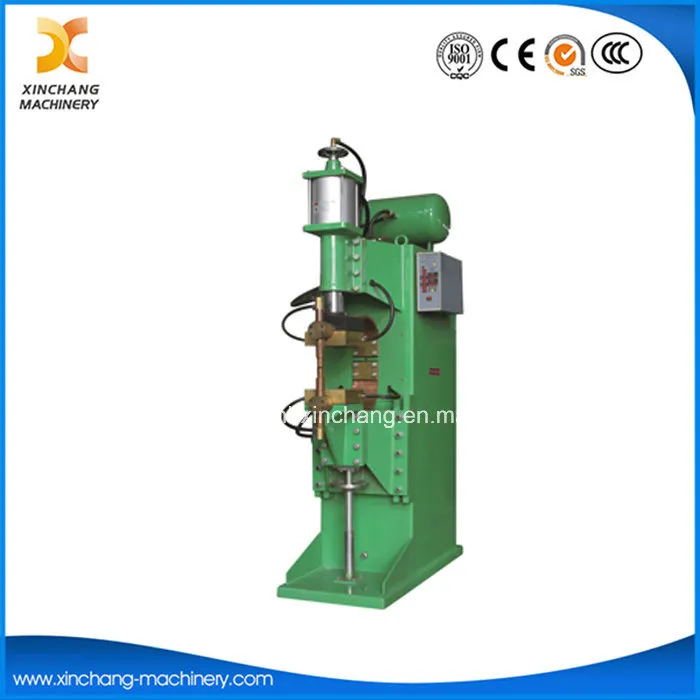

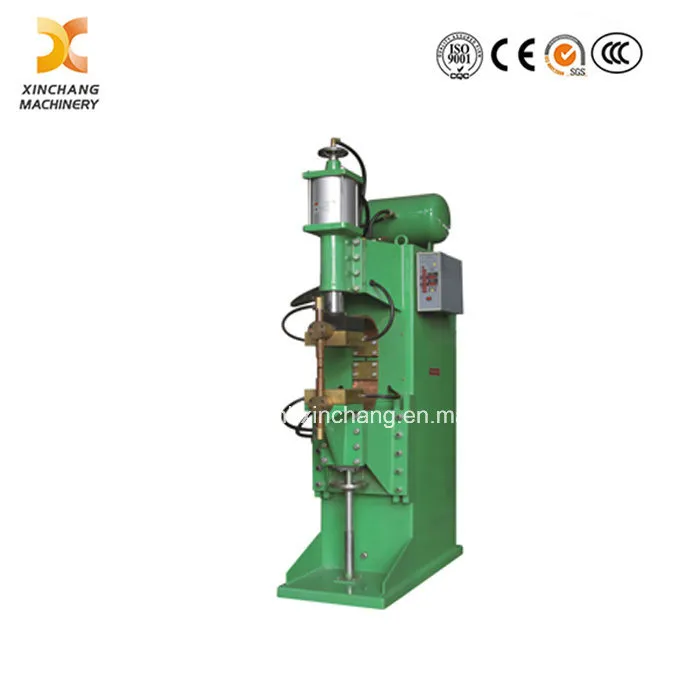

Automatic Electric Spot Projection Welding Machine for Air Duct Making
Spot(projection) welders series: DTN-P-1(2)-L
DTN: Pneumatic AC mains frequency
Resistance Spot Welding MachineP: Rated capacity
1: Lower arm can not be adjustable; 2: Lower arm can be adjustable
L: Throat depth, namely arms length
Advantage & Feature:
Built with thick steel sheet body, the equipment is resistant to deformation, a reliable structural design for long-term operation of this
Spot Welding Machine.
Secondary conductive components adopt top insulation structure, effectively preventing short circuit faults triggered by iron scraps or workpieces.
Electrode moving speed is steplessly adjustable, which lessens impact on workpieces and lowers operating noise.
Equipped with microcomputer control system, the machine delivers precise and stable performance. It supports storage of 15 sets of welding parameters to match products of various specifications, fully meeting diverse production demands of the
Resistance Welding Machine.
The controller features automatic current compensation to maintain consistent welding quality, and enables preheating or tempering treatment for certain materials.
It adopts water-cooled transformer assembled with 15000 gauss permeability silicon steel sheets. The full copper alloy core with internal water cooling structure reduces impedance and improves power utilization. With 20% duty cycle, it supports prolonged welding and high power output. This design also extends service life, cuts running noise and creates a more compact and rational overall structure.
High-speed solenoid valve accelerates the whole welding process, boosts production efficiency and cuts operational costs.
The cylinder is made of high-precision anti-friction hard duralumin material. It is rust-proof with low friction and low noise, and achieves faster loading movement to reduce welding spatter.
Stable overall performance and low failure rate greatly prolong the machine’s service life.
Widely applicable for processing metal wires, electrical appliances, metal sheets, microelectronic components and other related products.
Model
Unit
Item | DTN-25 | DTN-40 | DTN-80-1 | DTN-100-1 | DTN-150-1 | DTN-200-1 | DTN-80-2 | DTN-100-2 | DTN-150-2 | DTN-200-2 |
| Rated capacity | KVA | 25 | 40 | 80 | 100 | 150 | 200 | 80 | 100 | 150 | 200 |
| Primary volts. | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Frequency | HZ | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max short circuit current | KA | 15 | 18 | 28 | 33 | 38 | 43 | 28 | 33 | 38 | 43 |
| Duty cycle | % | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Max pressure | N | 3000 | 3000 | 6000 | 6000 | 12000 | 12000 | 7900 | 7900 | 12000 | 12000 |
| Operational stroke | MM | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Electrode Stroke | MM | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Arm length and distance | MM | 350*220 | 350*220 | 350*250 | 350*250 | 350*270 | 350*270 | 400*300 | 400*300 | 400*300 | 400*300 |
| Cooling water flux | L/min | 3 | 3 | 4 | 4 | 6 | 6 | 4 | 4 | 6 | 6 |
| Max weld capacity(steel) | MM | 2+2 | 3+3 | 4+4 | 5+5 | 6+6 | 6+6 | 4+4 | 5+5 | 6+6 | 6+6 |
