As a professional
Spot Welding Machine tailored for the storage equipment manufacturing industry, this
Multi-Spot Welding Equipment specially designed for the spot welding of storage stents. Integrating advanced
Industrial Spot Welding System technology, this equipment stands out from ordinary
Resistance Spot Welding Machine with its four-head synchronous welding design and flexible customization capability. It is widely used in the production of various storage stents, including warehouse storage racks, shelf brackets, storage cages and other products, providing stable, efficient and precise welding solutions for storage equipment manufacturers, and becoming an indispensable core production equipment for improving production efficiency and product quality.
Core Application & Customization Service
This specialized Spot Welding Machine is exclusively used for the spot welding processing of storage stents. Storage stents are key components in logistics warehousing, industrial storage and commercial storage fields, and their structural stability and load-bearing capacity directly depend on the quality of welding joints. Unlike general Resistance Spot Welding Machine that is not targeted at storage stent processing, this equipment is optimized for the welding characteristics of storage stent materials (such as carbon steel, stainless steel) and structural requirements, ensuring that each welding point is firm, uniform and aesthetically pleasing, and effectively enhancing the overall structural strength and service life of storage stents.
We fully consider the diverse production needs of different customers, and provide professional customization services that can be tailored according to your specific needs and specifications. Whether it is the adjustment of welding head spacing, the optimization of welding parameters, the adaptation to storage stents of different sizes and models, or the integration of additional functional modules, we can customize the most suitable Multi-Spot Welding Equipment solution for you, ensuring that the machine perfectly matches your production line and processing requirements, and maximizing production efficiency.
Key Performance Features

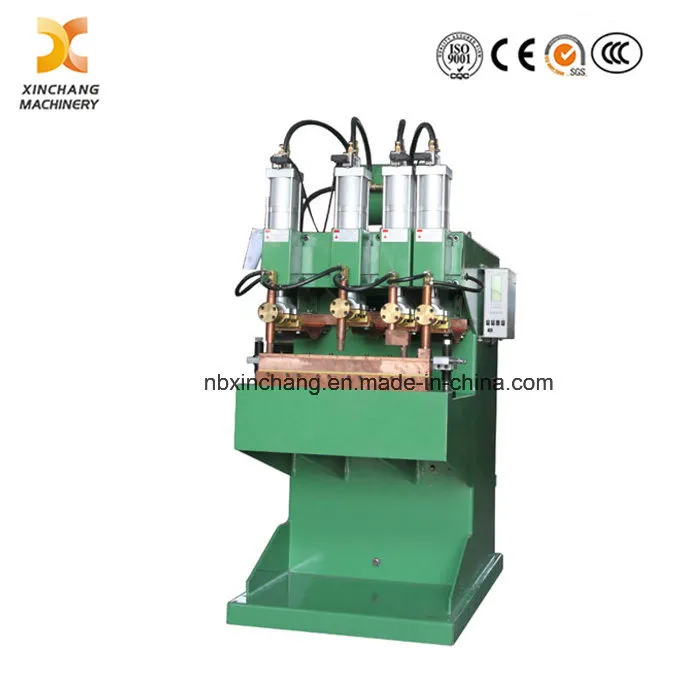

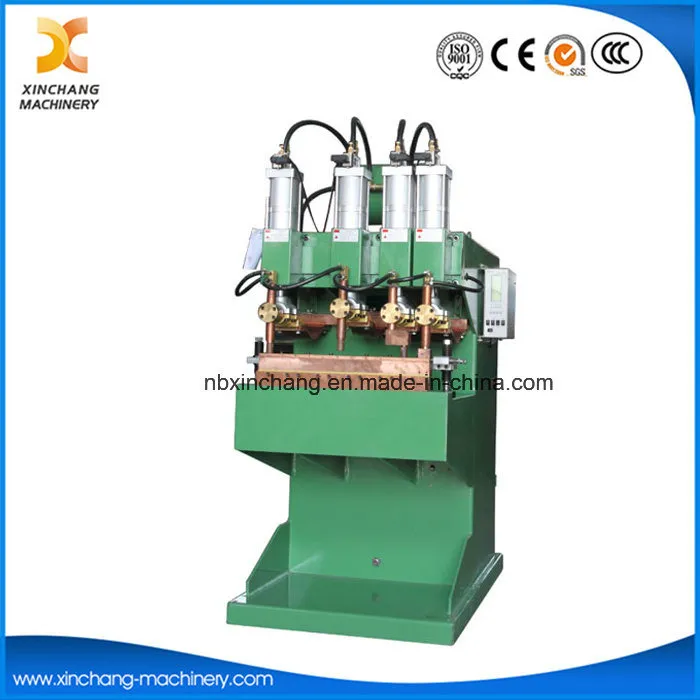

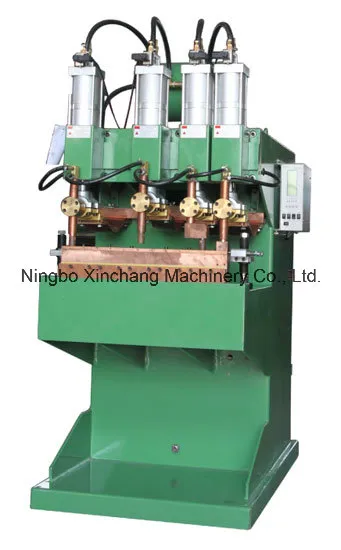

- Four Heads Synchronous Welding for High Efficiency: Adopting a four-head integrated design, the machine can complete the spot welding of four positions of the storage stent at one time, which is more efficient than single-head or double-head Spot Welding Machine. The synchronous welding design ensures the consistency of welding points, avoids the deviation caused by separate welding of multiple positions, and greatly shortens the single product processing cycle, meeting the large-scale mass production needs of storage stent manufacturers.
- Industrial Spot Welding SystemAdvanced : Equipped with a high-performance Industrial Spot Welding System, the machine realizes precise control of welding current, welding time and welding pressure. The intelligent control system can automatically adjust parameters according to the thickness and material of the storage stent, avoiding welding defects such as false welding, missing welding and excessive indentation, and ensuring stable and consistent welding quality.
- Superior Compatibility & Versatility: As a multi-functional Multi-Spot Welding Equipment, it is compatible with various types of storage stents, including light-duty storage racks, heavy-duty warehouse shelves, storage cages, pallet racks and other products. It can be flexibly adjusted according to the structural characteristics of different stents, and is also suitable for the spot welding of other metal components, with strong versatility.
- Stable Performance with High-Quality Components: The whole machine adopts high-quality core components, including durable welding electrodes, stable conductive parts and high-precision pneumatic components. Compared with ordinary Resistance Spot Welding Machine, it has better stability, lower failure rate and longer service life. The optimized heat dissipation system ensures that the machine can work continuously for a long time, adapting to the high-intensity production needs of the factory.
- Easy Operation & Convenient Maintenance: The machine is equipped with a humanized control panel, which is simple and easy to operate. Operators can quickly master the operation method without professional training. At the same time, the equipment adopts a modular design, which is convenient for daily maintenance and parts replacement, reducing maintenance costs and downtime.
Model
Unit
Item | DTN-25 | DTN-40 | DTN- 80-1 | DTN-100-1 | DTN-150-1 | DTN-200-1 | DTN- 80-2 | DTN-100-2 | DTN-150-2 | DTN- 200-2 |
| Rated capacity | KVA | 25 | 40 | 80 | 100 | 150 | 200 | 80 | 100 | 150 | 200 |
| Primary volts. | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Frequency | HZ | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max short circuit current | KA | 15 | 18 | 28 | 33 | 38 | 43 | 28 | 33 | 38 | 43 |
| Duty cycle | % | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Max pressure | N | 3000 | 3000 | 6000 | 6000 | 12000 | 12000 | 7900 | 7900 | 12000 | 12000 |
| Operational stroke | MM | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Electrode Stroke | MM | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Arm length and distance | MM | 350*220 | 350*220 | 350*250 | 350*250 | 350*270 | 350*270 | 400*300 | 400*300 | 400*300 | 400*300 |
| Cooling water flux | L/min | 3 | 3 | 4 | 4 | 6 | 6 | 4 | 4 | 6 | 6 |
| Max weld capacity(steel) | MM | 2+2 | 3+3 | 4+4 | 5+5 | 6+6 | 6+6 | 4+4 | 5+5 | 6+6 | 6+6 |
