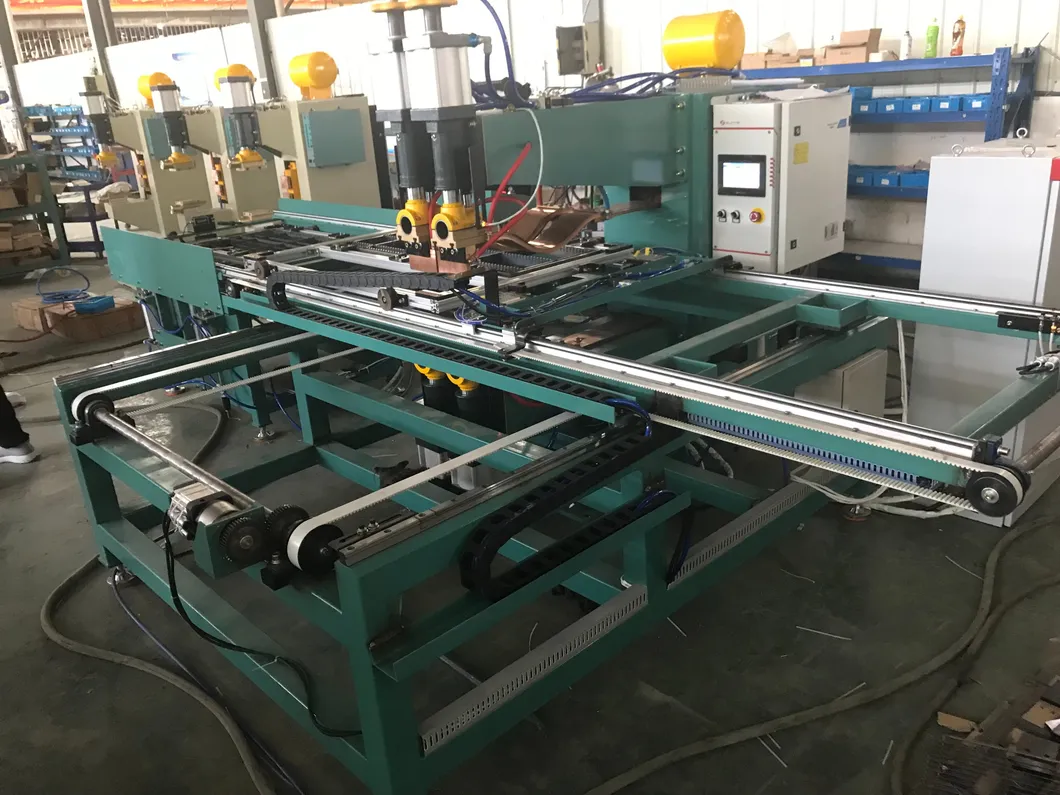

CNC Multi-Spot Wire Mesh Spot Welding Machine

This Automatic Wire Mesh Welding Machine is primarily applied to small metal meshes with dimensions no more than 600×800 mm, delivering drastically improved production efficiency compared with manual work, perfectly catering to practical demands of the Wire Mesh Industry.

Distinct competitive strengths are listed as below:

This Multi-Head Wire Mesh Welder realizes automatic welding along both X and Y axes without manual intervention, featuring outstanding automation level and remarkable working efficiency.

Equipped with HMI controller, it ensures precise operation and simple, convenient usage.

Premium components are adopted throughout the device, securing stable running performance, low failure frequency and prolonged service lifespan.

Fitted with imported high-speed solenoid valves, it accelerates cylinder movement and further boosts welding speed.

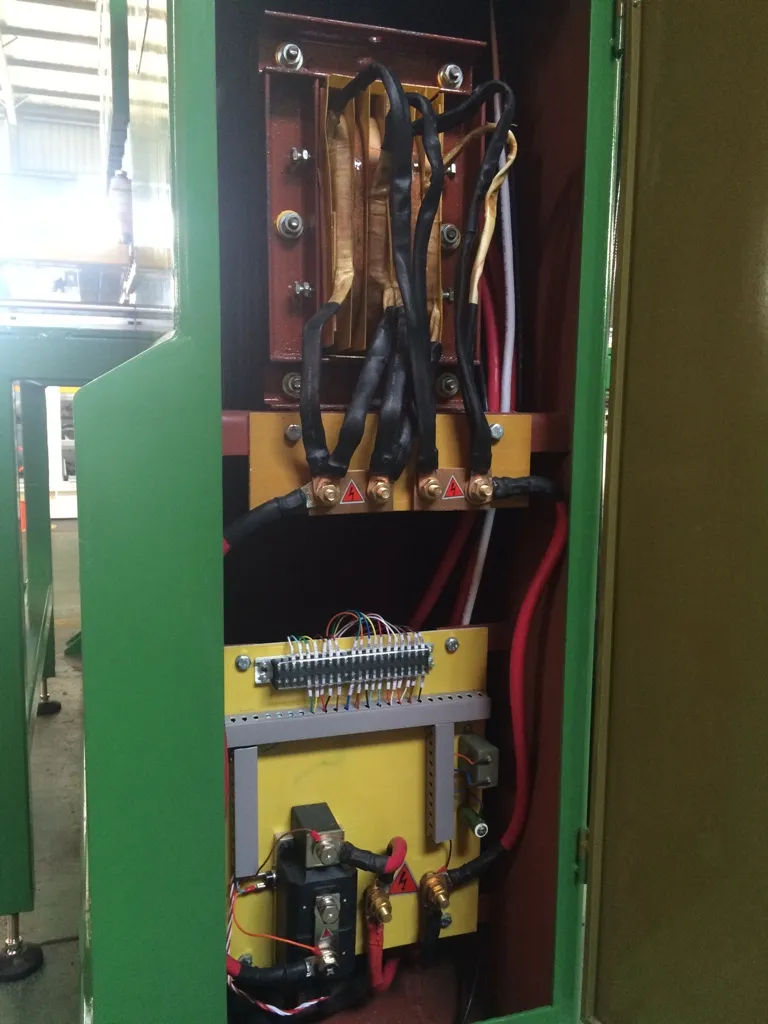

Designed with water cooling structure and full copper core transformer, the machine effectively avoids burnout failure.

The thick steel plate frame structure effectively prevents mechanical deformation.

The equipment boasts simple operation and reliable stable performance. It supports 24-hour continuous running and enjoys a service life of up to 15 years.

Model Unit Item		DTN-25	DTN-40	DTN-80-1	DTN-100-1	DTN-150-1	DTN-200-1	DTN-80-2	DTN-100-2	DTN-150-2	DTN-200-2
Rated capacity	KVA	25	40	80	100	150	200	80	100	150	200
Primary volts.	V	380	380	380	380	380	380	380	380	380	380
Frequency	HZ	50	50	50	50	50	50	50	50	50	50
Max short circuit current	KA	15	18	28	33	38	43	28	33	38	43
Duty cycle	%	20	20	20	20	20	20	20	20	20	20
Max pressure	N	3000	3000	6000	6000	12000	12000	7900	7900	12000	12000
Operational stroke	MM	30	30	30	30	30	30	30	30	30	30
Electrode Stroke	MM	70	70	70	70	70	70	70	70	70	70
Arm length and distance	MM	350*220	350*220	350*250	350*250	350*270	350*270	400*300	400*300	400*300	400*300
Cooling water flux	L/min	3	3	4	4	6	6	4	4	6	6
Max weld capacity(steel)	MM	2+2	3+3	4+4	5+5	6+6	6+6	4+4	5+5	6+6	6+6
