Basic Info.

Style: Fixed

Electrode Stroke: Vertical

Electric Current: DC Shock Wave

Transmission: Pneumatic

Conductive Way: Both-Sided

Welding Spot Number: Multiple

Current: Alternating Current

Control Transformer: AC

Item: CNC Spot Welding Machine

Transport Package: Wooden Case

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

Production Capacity: 100 Sets /Month

Product Description

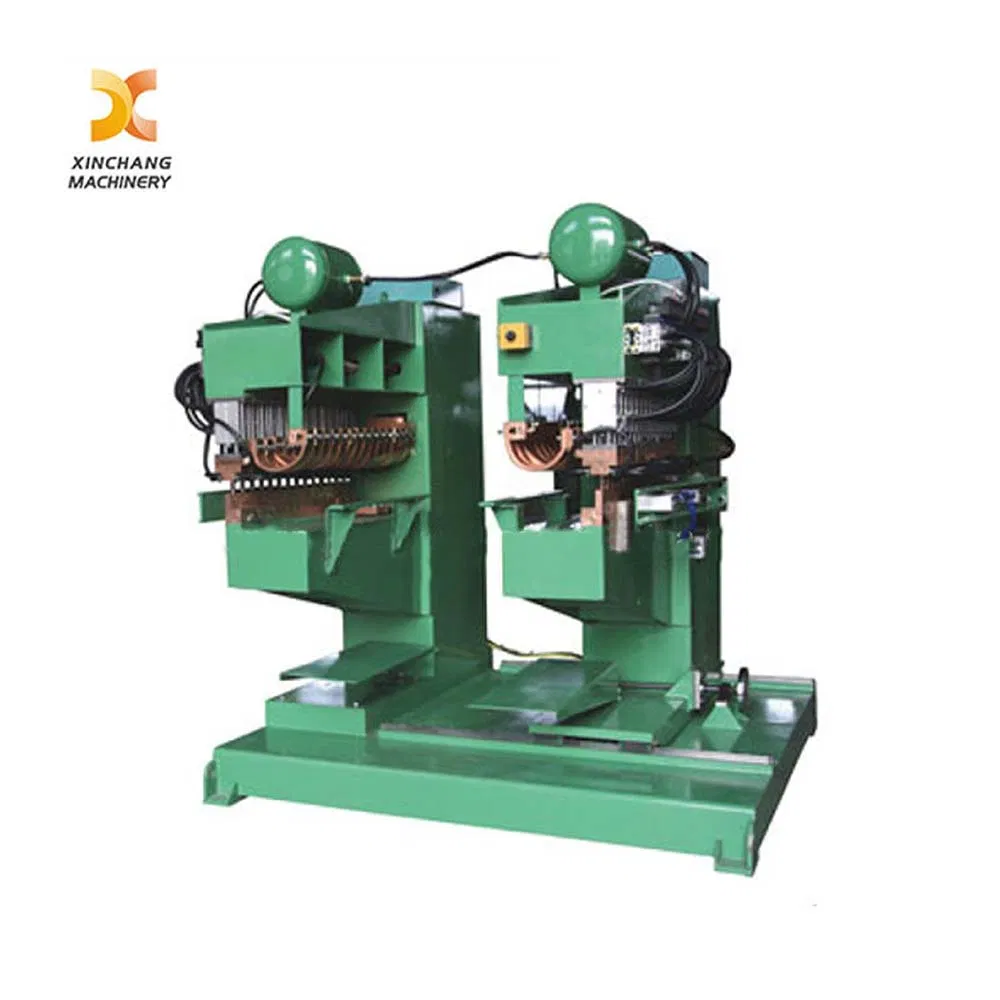

Automation Multiple Head Spot Welder with 2 Body for Refrigerator Shell

This is a special multi spot welding machine for Refrigerator shell welding machine, the machine is with 2 body, welding width can be adjusted according to part specification.
one time weld many points, very good welding point, good surface.

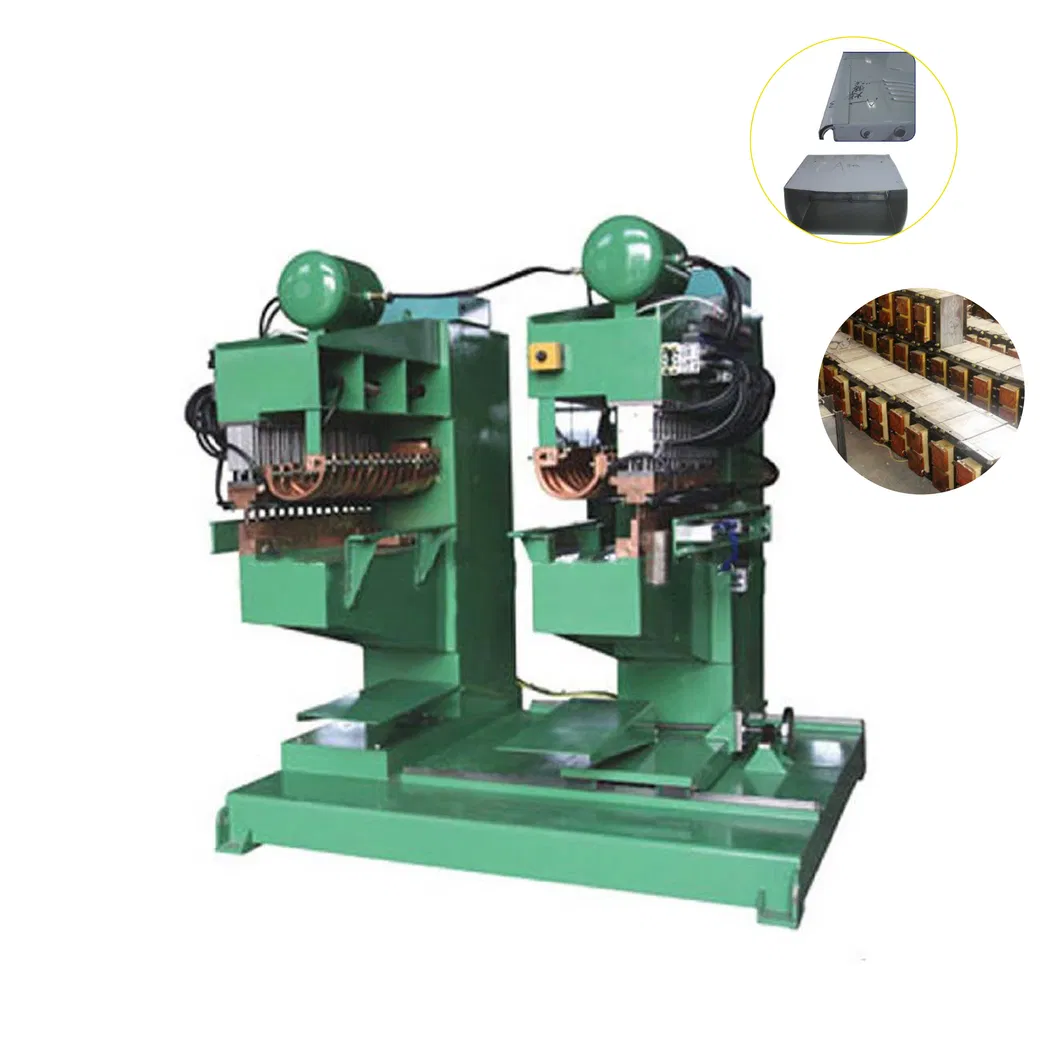

Automation Multiple Head Spot Welder with 2 Body for Refrigerator Shell

Model Unit Item		DTN-25	DTN-40	DTN- 80-1	DTN-100-1	DTN-150-1	DTN-200-1	DTN- 80-2	DTN-100-2	DTN-150-2	DTN- 200-2
Rated capacity	KVA	25	40	80	100	150	200	80	100	150	200
Primary volts.	V	380	380	380	380	380	380	380	380	380	380
Frequency	HZ	50	50	50	50	50	50	50	50	50	50
Max short circuit current	KA	15	18	28	33	38	43	28	33	38	43
Duty cycle	%	20	20	20	20	20	20	20	20	20	20
Max pressure	N	3000	3000	6000	6000	12000	12000	7900	7900	12000	12000
Operational stroke	MM	30	30	30	30	30	30	30	30	30	30
Electrode Stroke	MM	70	70	70	70	70	70	70	70	70	70
Arm length and distance	MM	350*220	350*220	350*250	350*250	350*270	350*270	400*300	400*300	400*300	400*300
Cooling water flux	L/min	3	3	4	4	6	6	4	4	6	6
Max weld capacity(steel)	MM	2+2	3+3	4+4	5+5	6+6	6+6	4+4	5+5	6+6	6+6
