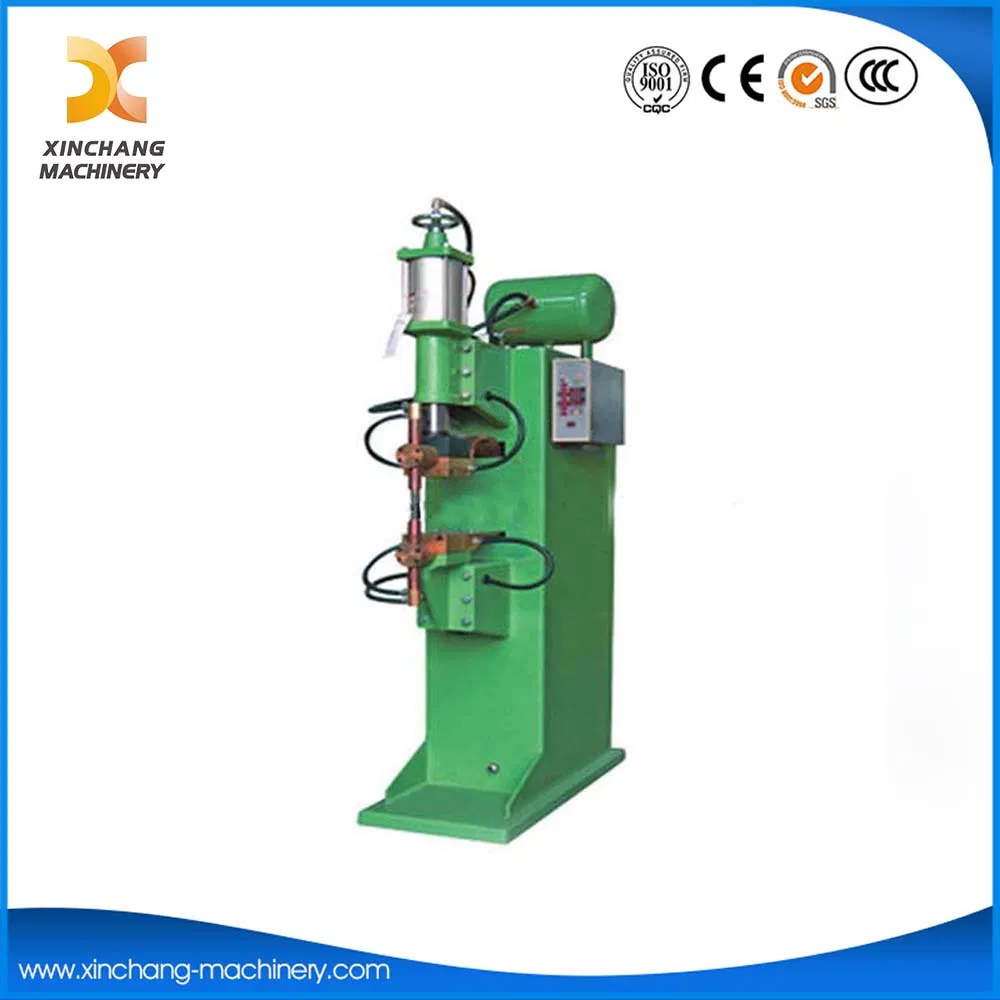

Metal Wire Pneumatic AC Mains Frequency Spot Projection Welders

Min. Order:1 Piece/Pieces

Supply Ability & Additional Information
Packaging & Delivery
Other information

Supply Ability & Additional Information

Supply Ability: 200 Sets /Month

Packaging & Delivery

Selling Units:

Piece/Pieces



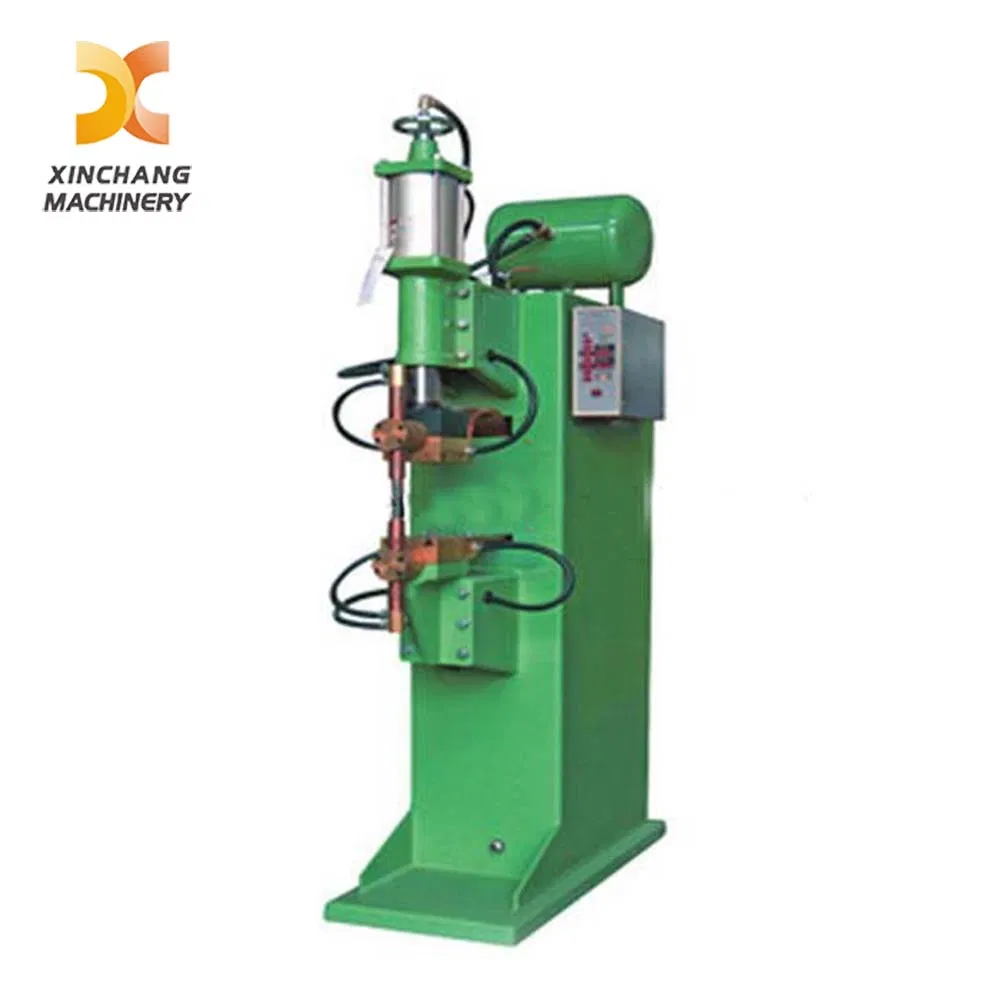

Metal Wire Pneumatic AC Spot welding machine



Basic Info.

Style: Fixed

Electrode Stroke: Vertical

Transmission: Pneumatic

Conductive Way: Both-Sided

Welding Spot Number: Single

Type: Spot Welders

Current: Alternating Current

Model: Dtn-25/40/80/100/150/200/300

Item: CNC Spot Welding Machine

Control Transformer: AC

Transport Package: Wooden Case

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

Production Capacity: 200 Sets /Month

Product Description

Method named for welders:
_{^{Spot(projection) welders series: DTN-P-1(2)-L
DTN: Pneumatic AC mains frequency spot(projection) welders
P: Rated capacity
1: Lower arm can not be adjustable; 2: Lower arm can be adjustable
L: Throat depth, namely arms length}}

Advantage & Feature:
^{_{1, Machine body of thick steel sheet.
2, Secondary electric conduction parts is style of upper insulation.
3, The electrodes of speed can be adjusted at random.
4, Microcomputer control,Can store 15 sets welding schedules.
5, Controller can automatically compensate current, to make welding steady. Some material can be preheat or temper.
6, Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up.
7, Fast solenoid valve.
8, Cylinder adopt high accurate, anti-friction hard material, which is duralumin.
9, Quality is stable, failure rate is low.

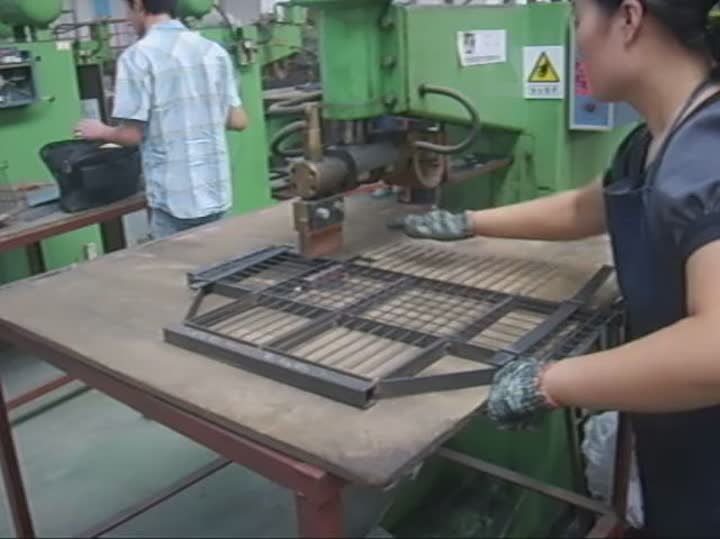

10, It is suitable for metal wire, electrical appliances manufacturing, metal plate process, micro-electron etc.}}

Model Unit Item		DTN-25	DTN-40	DTN- 80-1	DTN- 100-1	DTN- 150-1	DTN- 200-1	DTN- 80-2	DTN- 100-2	DTN- 150-2	DTN- 200-2
Rated capacity	KVA	25	40	80	100	150	200	80	100	150	200
Primary volts.	V	380	380	380	380	380	380	380	380	380	380
Frequency	HZ	50	50	50	50	50	50	50	50	50	50
Max short circuit current	KA	15	18	28	33	38	43	28	33	38	43
Duty cycle	%	20	20	20	20	20	20	20	20	20	20
Max pressure	N	3000	3000	6000	6000	12000	12000	7900	7900	12000	12000
Operational stroke	MM	30	30	30	30	30	30	30	30	30	30
Electrode Stroke	MM	70	70	70	70	70	70	70	70	70	70
Arm length and distance	MM	350*220	350*220	350*250	350*250	350*270	350*270	400*300	400*300	400*300	400*300
Cooling water flux	L/min	3	3	4	4	6	6	4	4	6	6
Max weld capacity(steel)	MM	2+2	3+3	4+4	5+5	6+6	6+6	4+4	5+5	6+6	6+6
