Pneumatic Servo Robot Spot Welding Gun

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Brand: xinchang

Supply Ability & Additional Information

Supply Ability: 500sets/ Month

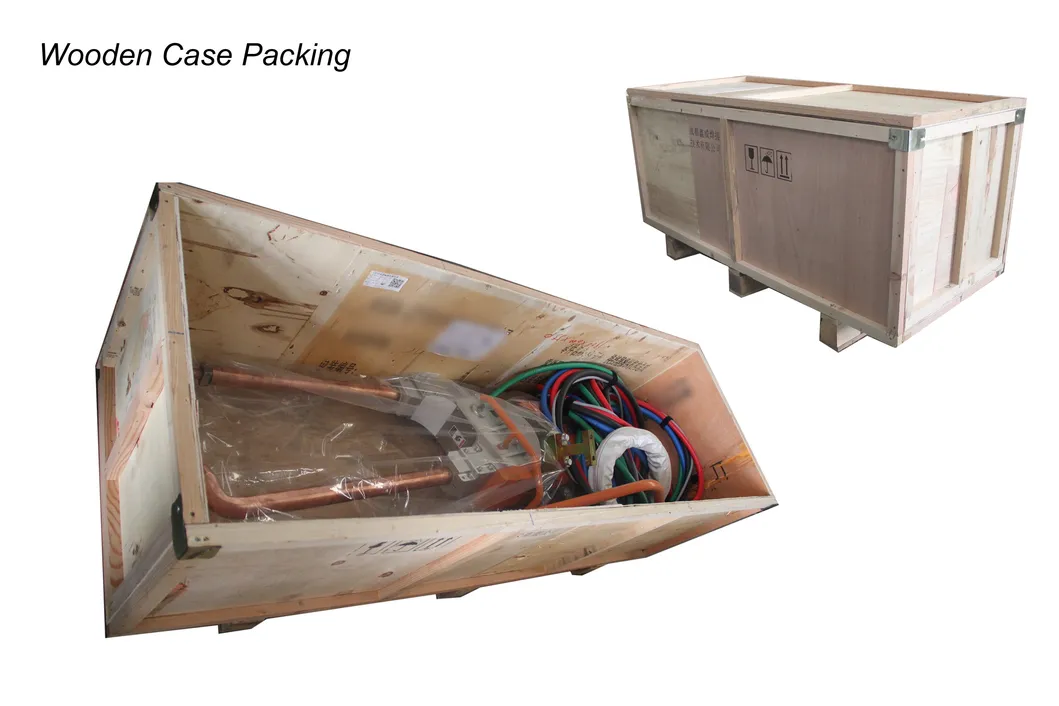

Packaging & Delivery

Selling Units:

Piece/Pieces



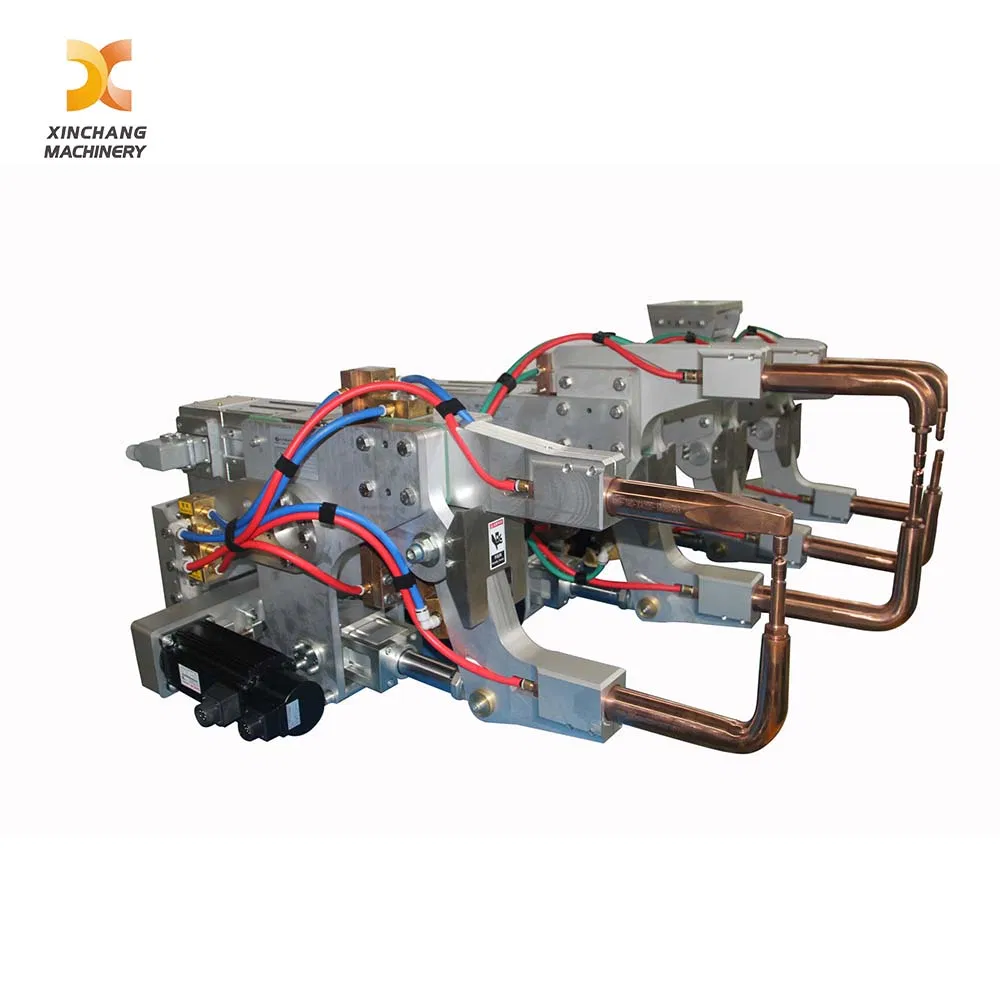

Pneumatic Servo Resistance Robot Spot Welding Gun with Electric Cylinder1



_{^{This Robotic Welding System adopts Spot Welding Robot equipped with Robot Welding Gun, which is classified into servo welding tongs(motor-driven) and pneumatic welding tongs(cylinder-drivern).}}

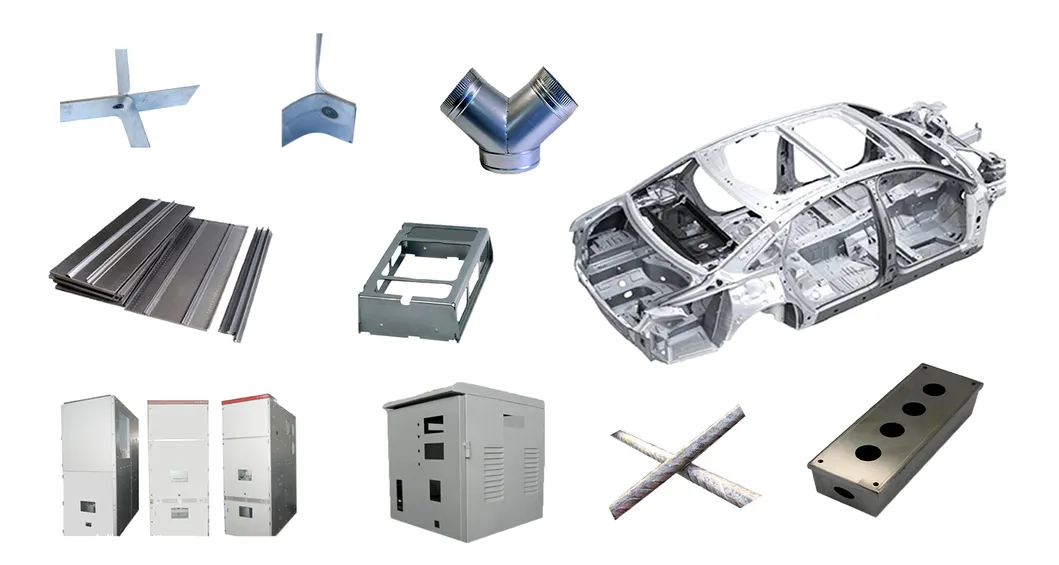

^{_{Application: Be used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be custom-made according to your requirement.}}

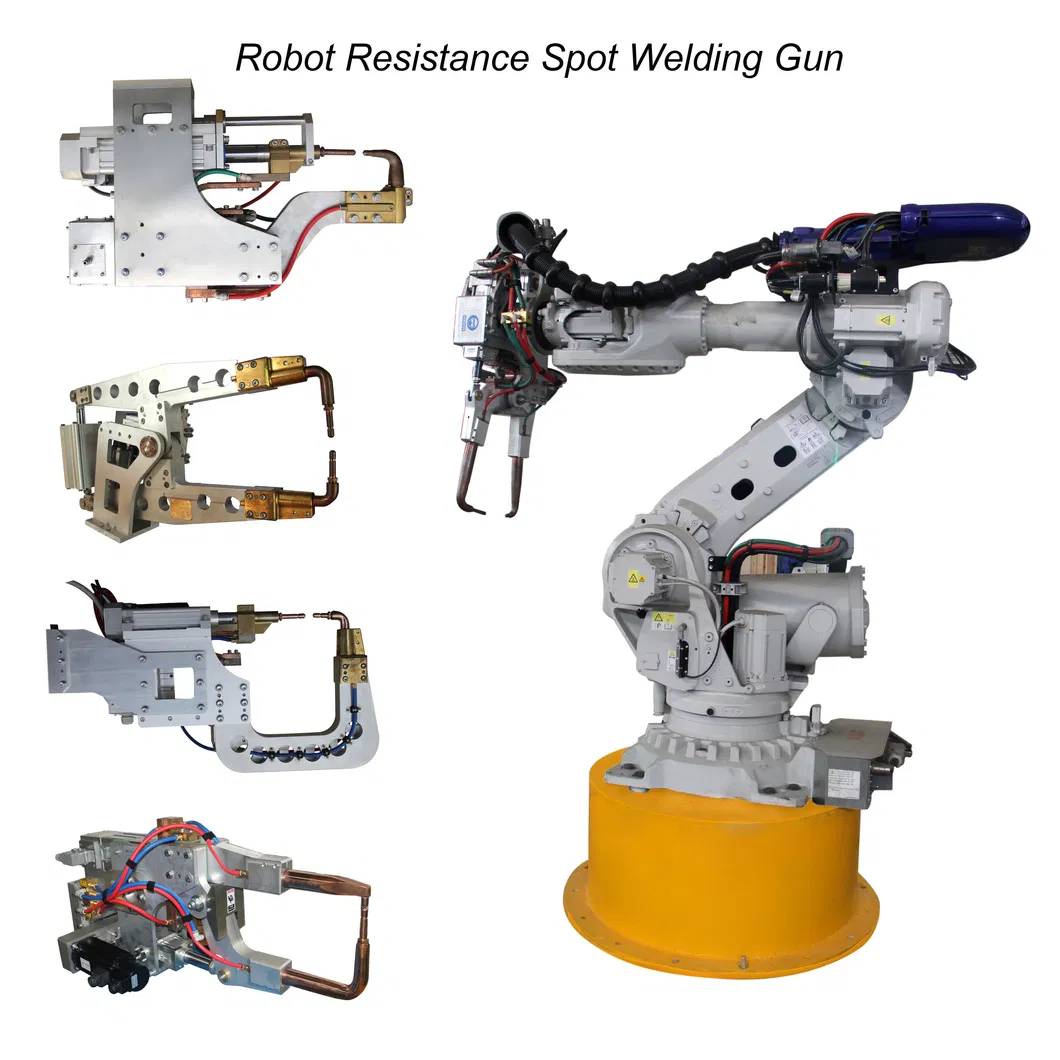

_{^{1, X-type robot welding guns:
Two welding arms are parallel; welding action is open-and-close
2, C-type obot welding guns:
Moving side coaxial with motor, moving up and down; overall C-shaped structure}}

^{_{1. Save labor cost (1 machine = 3-5 people).
2. Automatic current switching, welding thickness 0.1mm-5mm
3. Servo-driven, with adjustable welding pressure
4. Can match any kind of robot.
5. Welding arm: aviation aluminum.
6. One robot can control multiple welding guns (3 sets) .
7. Can store 32 welding specifications.
8. Can weld high-strength plate, aluminum, galvanized metal and other materials.}}

Model Items	Unit	DB3-100	DB3-160
Tranformer's Rated Capacity	KVA	100	160
Primary Power		500V 1000Hz	500V 1000Hz
Max Shortcut Current	KA	1.6	2.2
Max Gun Mouth Current's Open	mm	150	250
Max Electrode Pressure	N	4000N	4500
Flowrate of Cooling Water	L/min	15	15
Arm Material		CuCrZr	CuCrZr
Connecting Way Robot		Up,Down,Left,Right,Backward	Up,Down,Left,Right,Backward
Servo Motor		KUKA,ABB,	KUKA,ABB,
welding thickness		0.8+0.8,1.2+1.2,1.5+1.8	0.8+0.8,1.2+1.2,2+2,2.5+2.5

Pneumatic Servo Resistance Robot Spot Welding Gun with Electric Cylinder
