Easy Operating Integrated Suspension Spot Welding Gun

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Brand: xinchang

Supply Ability & Additional Information

Supply Ability: 500sets/ Month

Packaging & Delivery

Selling Units:

Piece/Pieces



Pneumatic Servo Resistance Robot Spot Welding Gun with Electric Cylinder1



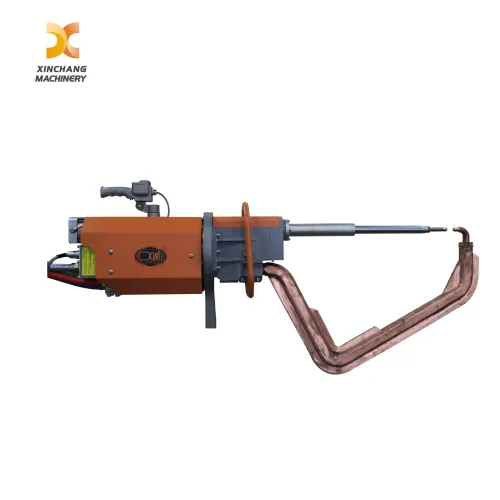

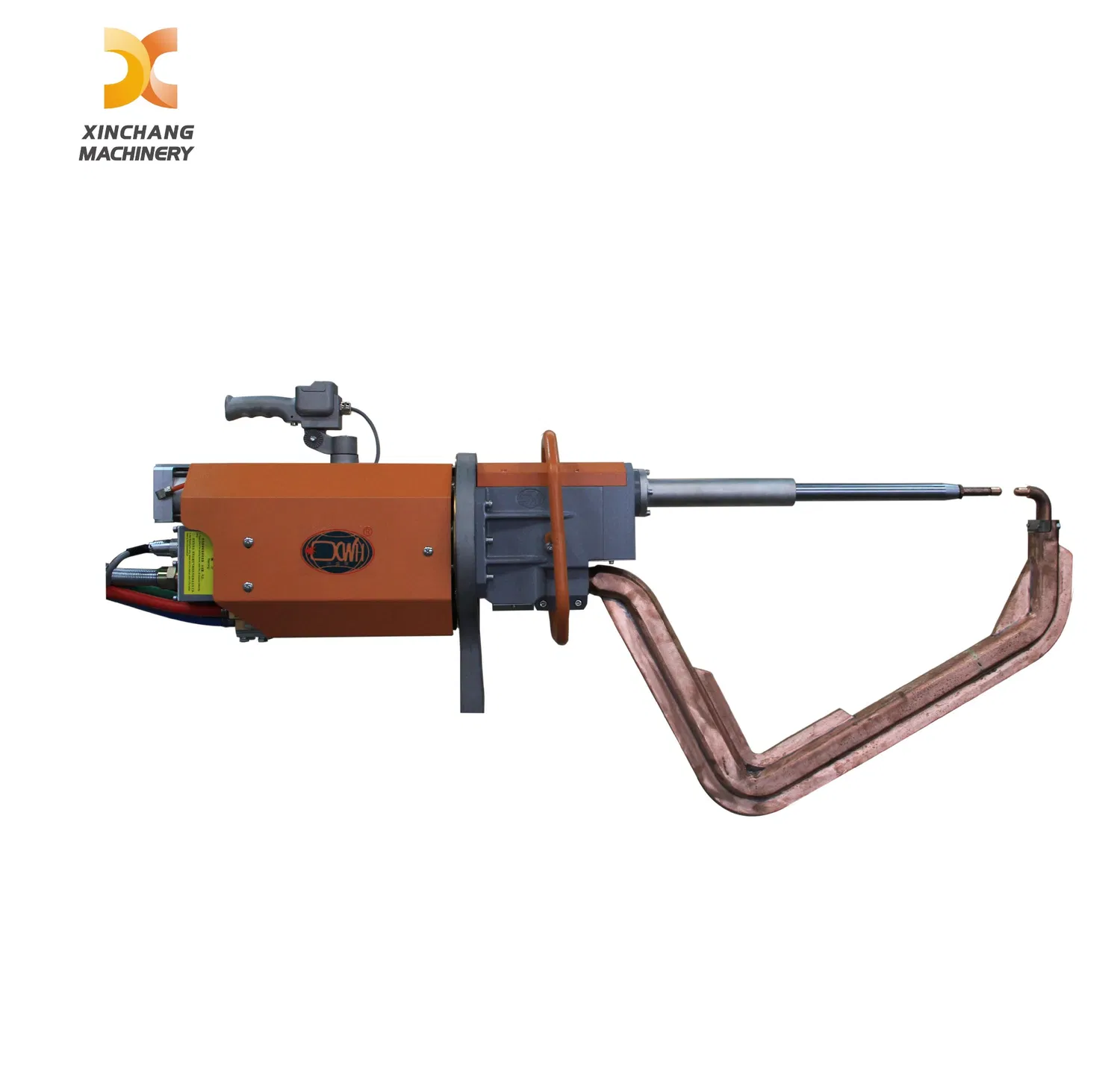

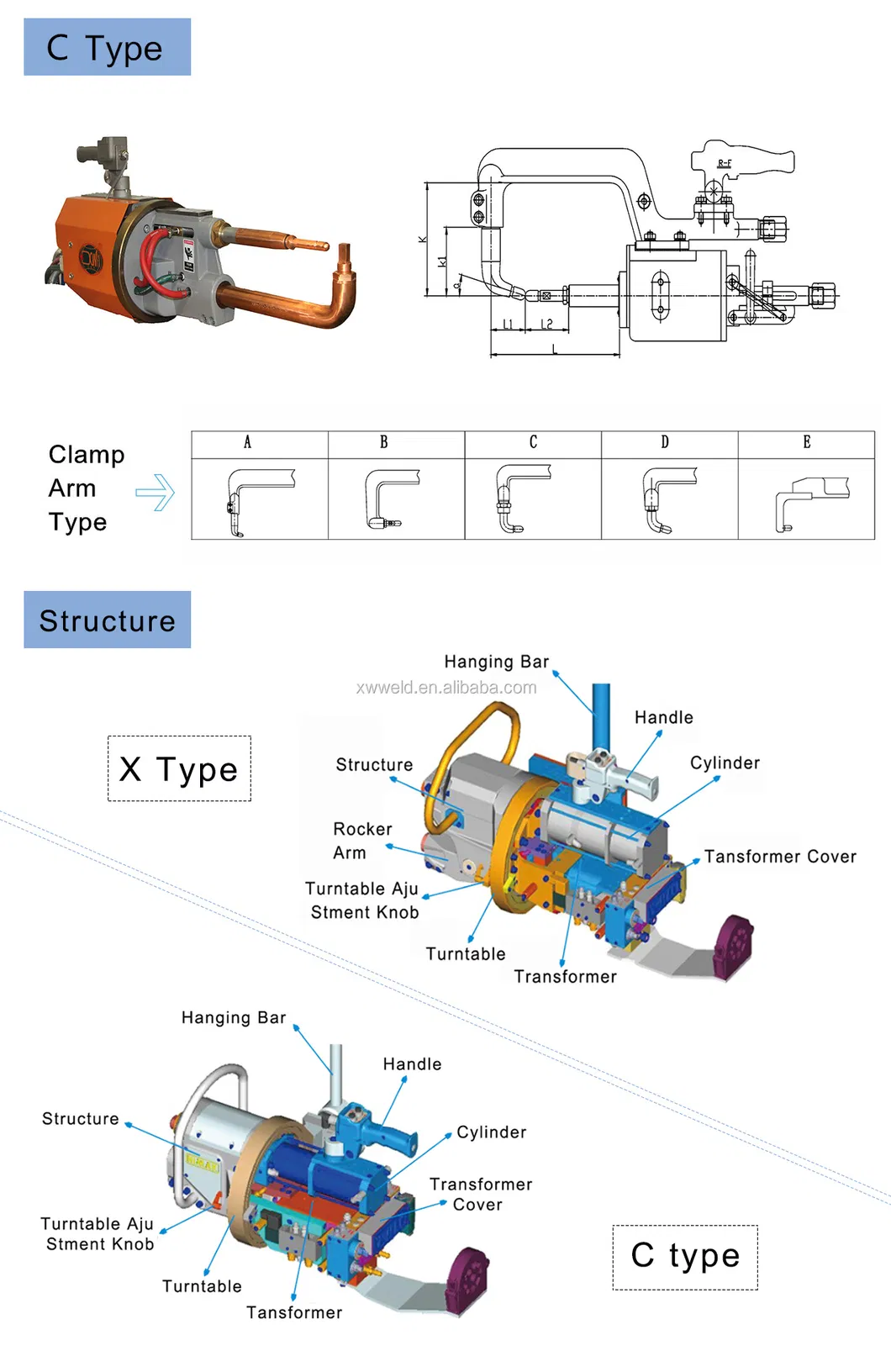

The integrated suspension Robot Welding Gun for Robotic Welding System and Spot Welding Robot integrates the transformer and welding arm on a rotating disk with a steel-ball structure, ensuring smooth 360° rotation without jamming. It is equipped with an arbitrary-angle locking mechanism to satisfy special welding positions, and can resume normal rotation after unlocking.

^{_{1. Save labor cost (1 machine = 3-5 people).
2. current can be automatically switched at any time, welding thickness 0.1mm-5mm
3. Welding pressure can be set and driven by servo motor.
4. Can match any kind of robot.
5. Welding arm: aviation aluminum.
6. One robot can control multiple welding guns (3 sets) .
7. Can store 32 welding specifications.

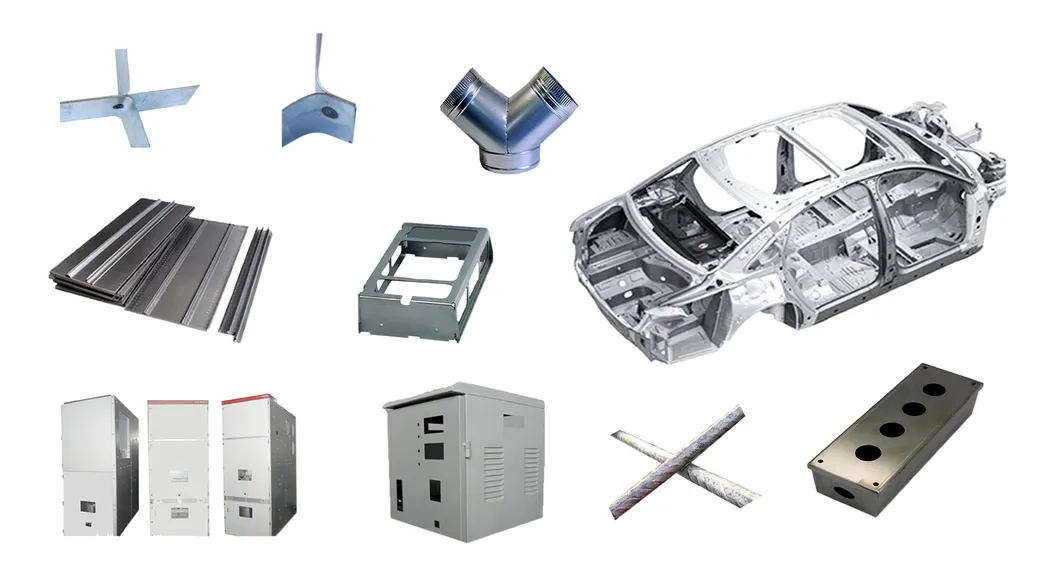

8. Can weld high-strength plate, aluminum, galvanized metal and other materials.}}

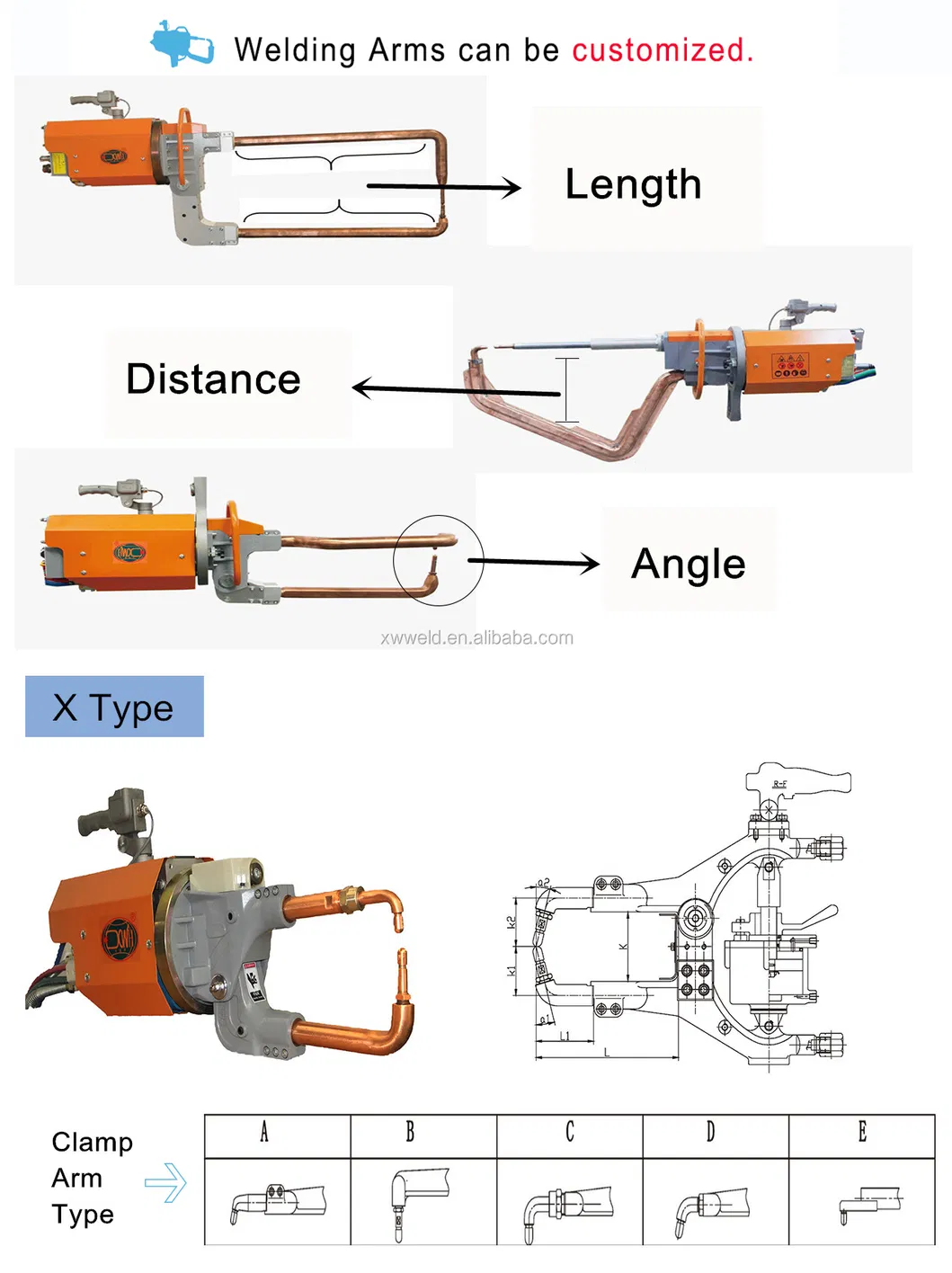

Item/models	Unit	DN2-35X	DN2-35C	DN2-45X	DN2-45C	DN2-65X	DN2-65C
power at 50%	KVA	35	35	45	45	65	65
Maximum short circuit current	KVA	15	15	16	16	46	46
Secondary unload voltage	V	5.7	5.7	6.3	6.3	8	8
Voltage at 50Hz/60Hz	V	380	380	380	380	380	380
Distance between the arms	MM	120-280	100	120-330	100	160-430	100
Max.strength at electrodes	N	3500	3500	3500	3500	3500	3500
Working stroke	MM	15-45	15-25	15-45	15-25	15-45	15-25
Max.stroke	MM	50-120	60/100/140	50-120	60/100/140	50-120	60/100/140
Arm length	MM	240-600	200-500	300-800	200-500	400-1100	200-500
Compressed Air supply	MPA	0.5	0.5	0.5	0.5	0.5	0.5
Max thickness of mild steel sheet with min.length s arm	MM	3+3	3+3	4+4	4+4	5+5	5+5
With 500mm arms	MM	2+2	2+2	3+3	3+3	3+3	3+3
With maximum length arms	MM	1.2+1.2	1.2+1.2	2+2	1.8+1.8	2.0+2.0	2.0+2.0
Cross wire maximum	MM	14+14	14+14	16+16	16+16	20+20	20+20
Cooling water pressure drop	MPA	0.05	0.05	0.05	0.05	0.05	0.05
Cooling water flow	l/MIN	12	12	12	12	12	12
