Custom Rotation Spot Welding Gun for Sheet Metal

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Brand: xinchang

Supply Ability & Additional Information

Supply Ability: 500sets/ Month

Packaging & Delivery

Selling Units:

Piece/Pieces



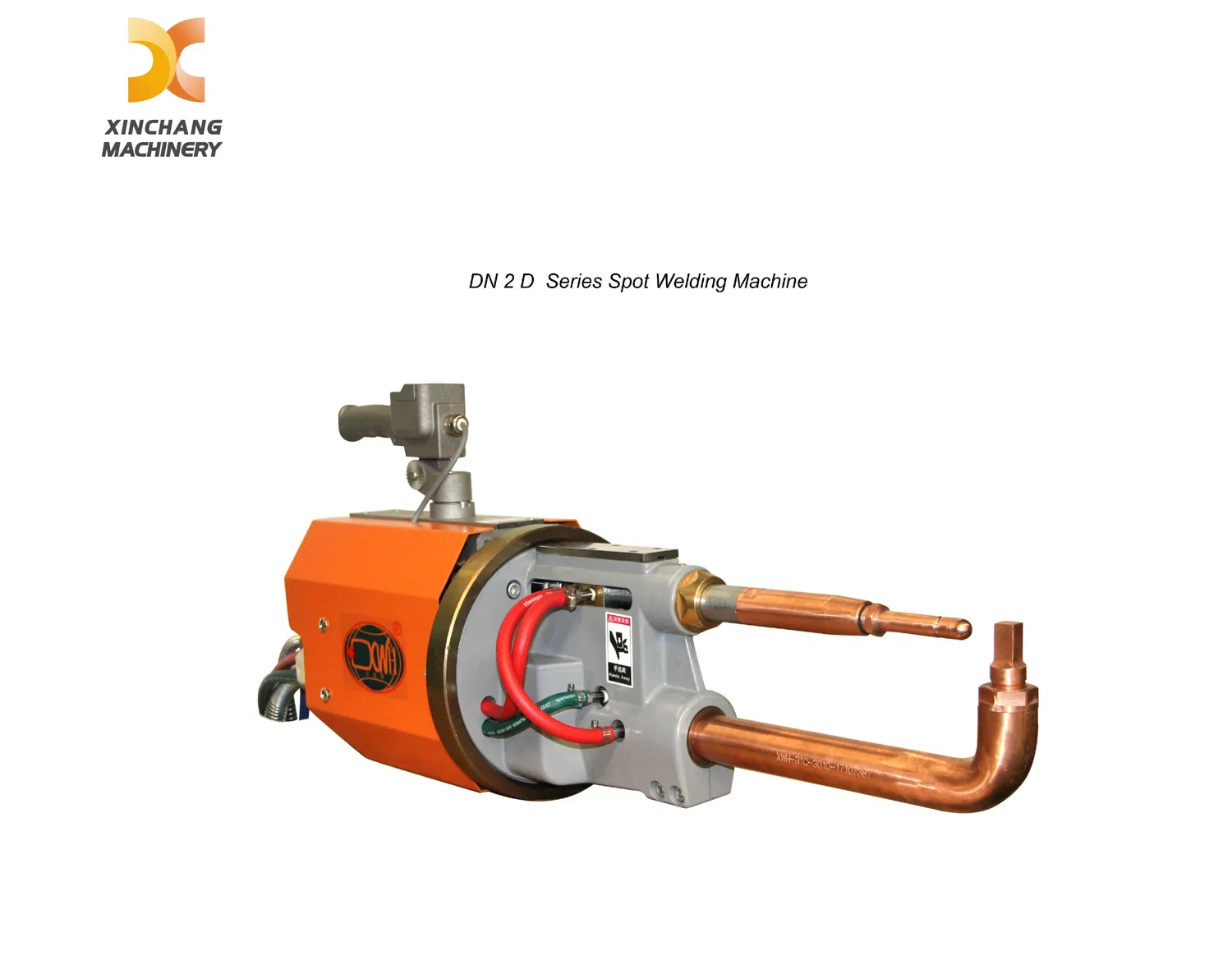

Pneumatic Servo Resistance Robot Spot Welding Gun with Electric Cylinder1



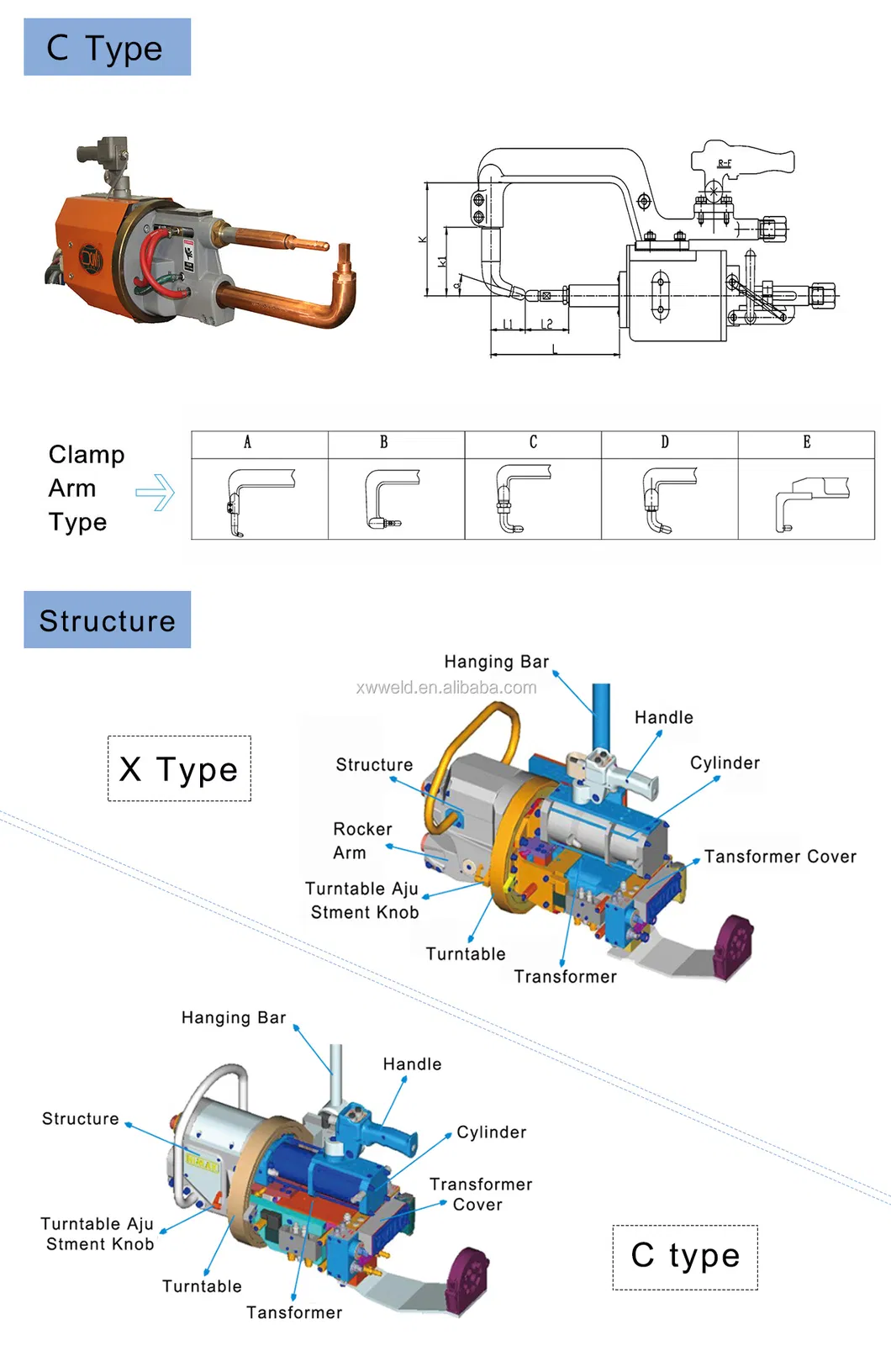

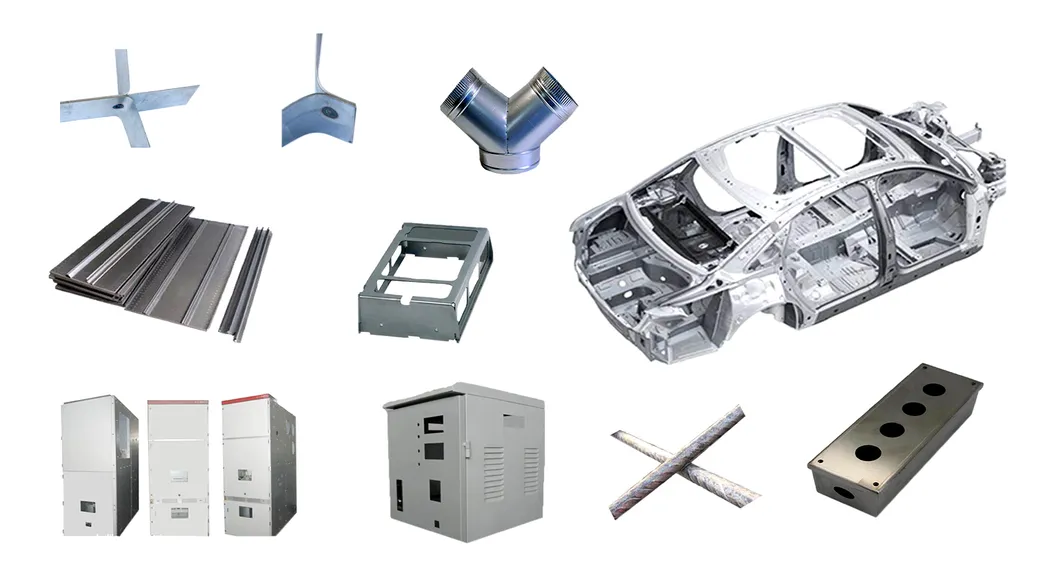

The integrated suspension Robot Welding Gun for Robotic Welding System integrates the transformer and arm on a steel-ball rotating disk, enabling smooth 360° rotation without jamming. Spot Welding Robot features an arbitrary-angle locking mechanism to meet special welding postures and can rotate freely after unlocking. Lightweight, compact, and stable, with a power-frequency transformer, it is ideal for thin-plate welding in high-frequency, complex workstations.

^{_{1. High efficiency Resistance Welding Machine.}}
_{^{2. Easy to install and simple to operate, saves energy.}
^{3. Nimble and 360° rotational use.
4. Small, light, high power output.
5. Electrode and welding arm are all water cooled .
6. Gun body is cast with special aluminum.
7. The electrode arm is made of copper alloy with good flexional strength, high conductivity.}}

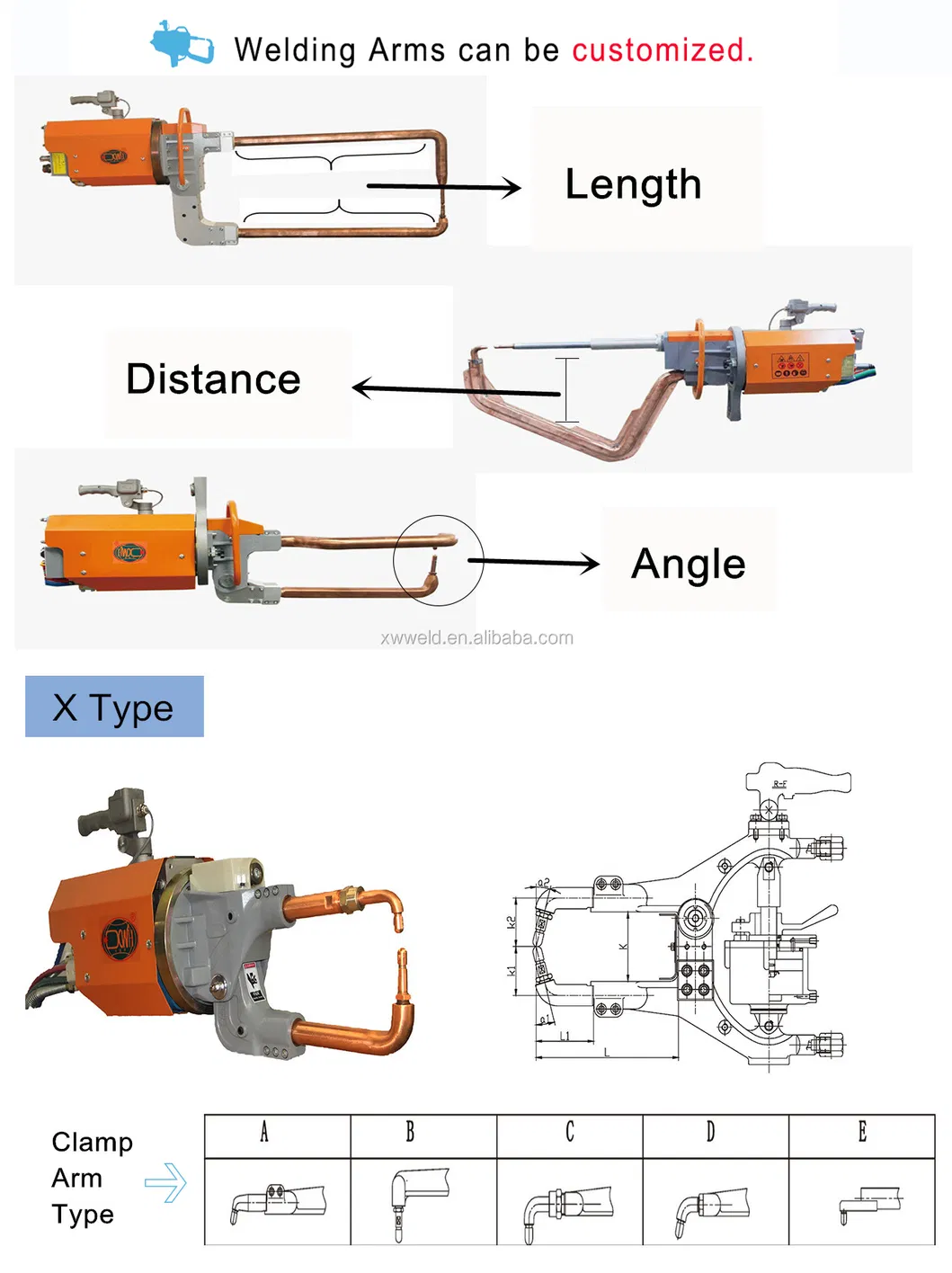

Item/models	Unit	DN2-35X	DN2-35C	DN2-45X	DN2-45C	DN2-65X	DN2-65C
power at 50%	KVA	35	35	45	45	65	65
Maximum short circuit current	KVA	15	15	16	16	46	46
Secondary unload voltage	V	5.7	5.7	6.3	6.3	8	8
Voltage at 50Hz/60Hz	V	380	380	380	380	380	380
Distance between the arms	MM	120-280	100	120-330	100	160-430	100
Max.strength at electrodes	N	3500	3500	3500	3500	3500	3500
Working stroke	MM	15-45	15-25	15-45	15-25	15-45	15-25
Max.stroke	MM	50-120	60/100/140	50-120	60/100/140	50-120	60/100/140
Arm length	MM	240-600	200-500	300-800	200-500	400-1100	200-500
Compressed Air supply	MPA	0.5	0.5	0.5	0.5	0.5	0.5
Max thickness of mild steel sheet with min.length s arm	MM	3+3	3+3	4+4	4+4	5+5	5+5
With 500mm arms	MM	2+2	2+2	3+3	3+3	3+3	3+3
With maximum length arms	MM	1.2+1.2	1.2+1.2	2+2	1.8+1.8	2.0+2.0	2.0+2.0
Cross wire maximum	MM	14+14	14+14	16+16	16+16	20+20	20+20
Cooling water pressure drop	MPA	0.05	0.05	0.05	0.05	0.05	0.05
Cooling water flow	l/MIN	12	12	12	12	12	12

Small Hand Held Spot Aluminum Inverter Iron Welded Wire Mesh Spot Welding Gun12
