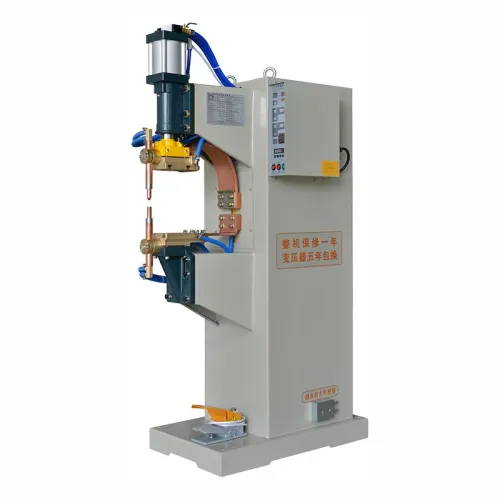

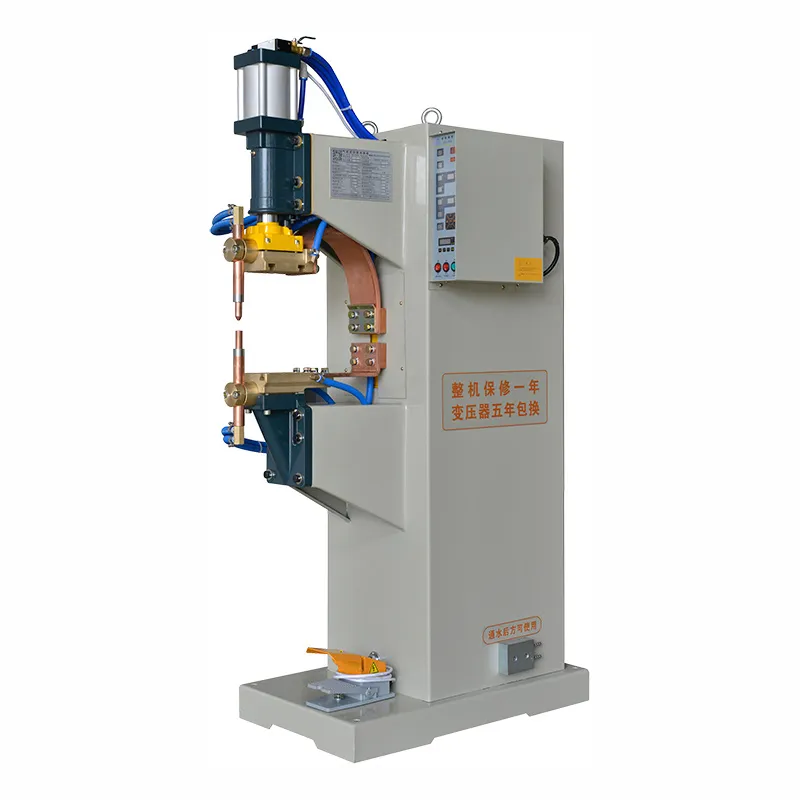

Name: Xy Axis Automatic Spot Welding Machine for Storage Wire Shelf
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.9 (35 reviews)

Xy Axis Automatic Spot Welding Machine for Storage Wire Shelf

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Model NO.: DTN-150

Style: Fixed

Electrode Stroke: Vertical

Electric Current: Alternating Current or DC Inverter

Transmission: Pneumatic

Conductive Way: Both-Sided

Welding Spot Number: Multiple

Type: Spot Welders

Item: CNC Spot Welding Machine

Rated Voltage (V): 380±15%

Control Transformer: AC

Rated Frequency (Hz): 50

Transport Package: Wooden Case

Specification: export standard

Trademark: xinchang

Origin: Ningbo China

HS Code: 85152900

Production Capacity: 50sets/ Month

Customization: Available

Control: Automatic

Cooling Way: Water Cooling

Shipping Cost: Contact the supplier about freight and estimated delivery time.

Supply Ability & Additional Information

Supply Ability: 50sets/ Month

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Product Description
Detailed Photos
Company Profile
FAQ

Basic Info.

Model NO.

DTN-150

Style

Fixed

Electrode Stroke

Vertical

Electric Current

Alternating Current or DC Inverter

Transmission

Pneumatic

Conductive Way

Both-Sided

Welding Spot Number

Multiple

Type

Spot Welders

Item

CNC Spot Welding Machine

Rated Voltage (V)

380±15%

Control Transformer

Rated Frequency (Hz)

Transport Package

Wooden Case

Specification

export standard

Trademark

xinchang

Origin

Ningbo China

HS Code

85152900

Production Capacity

50sets/ Month

Packaging & Delivery

Package Size

200.00cm * 160.00cm * 200.00cm

Package Gross Weight

1000.000kg

Product Description

Advantages different from Others:

1, Can come true two directions auto-weld of X and Y axes, without manual operation, automaticity high, high efficiency.
2, Touch screen controller, accurate, convenient and easy
3, Adopt high quality parts and accessories, so equipments quality stable, lower fault rate and longer equipments life.
4, Equipped with fast imported solenoid valve to make cylinders act faster, thereby weld speed is faster.
5, Water cooling and fully copper core transformer so as to not easily burnout
6, Machine body with thick steel sheet, not easy to deformation

Key parameters only for reference

Item NO.	DNW-150-800
Rated capacity (KVA)	150
Current type	AC
Control transformer	AC
Rated voltage (V)	380±15%
Rated frequency (HZ)	50
Max. short circuit Current (KA)	24
Duty cycle (%)	20
Max. pressure (N)	5315
Upper electrode Stroke (mm)	60
Lower electrode Stroke (mm)	40
Cooling water flow (L/min)	4
Max. welding width (mm)	450×800,600×800,or customized as requirements.
Machine weight (Ton)	1
Air pressure	≥0.6mpa
Insulation class	F

We can customize according to your demands!
Xy Axis Automatic Spot Welding Machine for Storage Wire Shelf

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, spot welding machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.

We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
