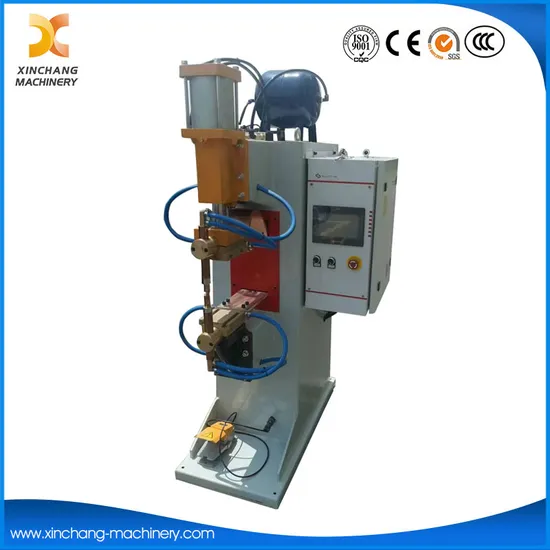

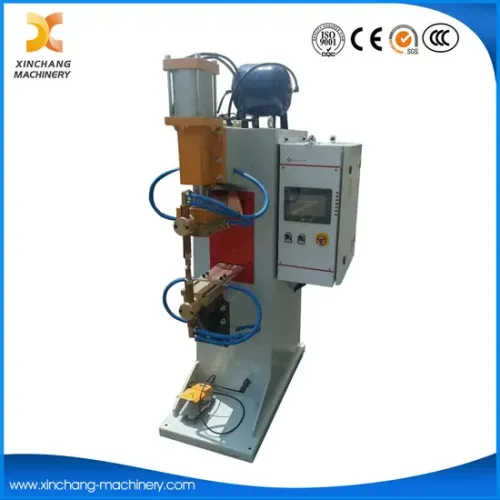

Name: High Efficiency Vertical Automatic Spot Welding Machine
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.7 (35 reviews)

High Efficiency Vertical Automatic Spot Welding Machine

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Style: Fixed

Electrode Stroke: Vertical

Electric Current: DC Shock Wave

Transmission: Pneumatic

Conductive Way: Both-Sided

Welding Spot Number: Single

Type: Spot Welders

Current: Direct Current

Item: CNC Spot Welding Machine

Control Transformer: AC

Rated Voltage (V): 380±15%

Transport Package: at Customer's Requrest

Specification: export standard

Trademark: xinchang

Origin: Ningbo

HS Code: 85152900

Production Capacity: 20 Sets/Month

Customization: Available

Control: Manual

Cooling Way: Water Cooling

Supply Ability & Additional Information

Supply Ability: 20 Sets/Month

Packaging & Delivery

Selling Units:

Piece/Pieces

Overview
Product Description
Product Parameters
Detailed Photos
Company Profile
FAQ

Basic Info.

Style

Fixed

Electrode Stroke

Vertical

Electric Current

DC Shock Wave

Transmission

Pneumatic

Conductive Way

Both-Sided

Welding Spot Number

Single

Type

Spot Welders

Current

Direct Current

Item

CNC Spot Welding Machine

Control Transformer

Rated Voltage (V)

380±15%

Transport Package

at Customer's Requrest

Specification

export standard

Trademark

xinchang

Origin

Ningbo

HS Code

85152900

Production Capacity

20 Sets/Month

Product Description

High Efficiency Vertical Automatic Spot Welding Machine Metal Welding Equipment

Features:

1, Current is commutated to DC, little reactance. Concordance of welding points is better.
2, Duty cycle is higher, power is bigger, so it can work continually for long time, so it is suitable for big work-piece (for example: Aluminium 4+4 mm), little spatter.
3, Power factor is better, saving energy.
4, Lower strike to electric fence, having no influence to other equipments.
5, The welder can work continually 24 hours every day, life is up to 15 years.
Applications: Be widely used in low carbon steel, sheet steel plated, brass, aluminium and aluminium alloy, multi-layers sheet steel weld.

Machine body: Use vertical reinforcing structure, adopt good quality thickness steel plate to weld. Eliminate the stress, structure is very reasonable, without deformation.

Control system: MF control system, more precise and faster current control. Analysis parameters more precisely, to arrive the setting current faster than low frequency controller.

MF inverter transformers: Control current is DC, thereby avoid the loose weld phenomenon caused by current shunt as width is too wide. Moreover, MF inverter transformer is with the advantages of saving energy and reducing the strike to Power Grid.

3 layers pressurization cylinders: 3 layers pressurization cylinders, pressure is more enough and cylinders adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and adding pressure is faster, thereby reducing the weld spatter.

Electrode: With CuCrZr materials, very anti-friction. By means of water cooling, longer service life.

Compressed air system: Equipment is installed air processor which is used for clean the compressed air, and with muffler to reduce the noise. Also it is with compressed air tank to stabilize the air pressure.

Cooling water system: There are transformers cooling, up electrode cooling, lower electrode cooling and other copper block cooling. It come true the water distribution by flowmeter. Each flowmeter can be adjusted individually to make machine working normal, without damage.

			DTNZ-63	DTNZ-100	DTNZ-160	DTNZ-3× 63	DTNZ-3× 100	DTNZ-3× 160	DTNZ-3× 200
Rated capacity		KVA	63	100	160	3*63	3*100	3*160	3*200
Voltage input		V/phase	380/1	380/1	380/1	380/3	380/3	380/3	380/3
Rated frequency		HZ	50	50	50	50	50	50	50
Duty cycle		%	50	50	50	50	50	50	50
Throat depth		MM	350	350	350	350	350	350	350
Electrode stroke		MM	100	100	100	100	100	100	100
Max pressure		N	7800	7800	12000	12000	12000	24000	24000
Cooling water flux		L/Min	6	6	6	12	12	12	12
weight		Kg	400	500	600	1000	-	-	-
Max welding capacity	Low carbon steel	MM	3+3	3.5+3.5	4+4	5+5	6+6	7+7	8+8
Max welding capacity	Aluminium	MM	1+1	1.5+1.5	2.5+2.5	3+3	3.5+3.5	4+4	4.5+4.5

High Efficiency Vertical Automatic Spot Welding Machine Metal Welding Equipment
