Name: Pneumatic Servo Resistance Robot Spot Welding Gun with Electric Cylinder1
Uploaded: 2025-09-09T05:06:05+08:00
Description: 1. Pneumatic spot welding robot operated suspended robotic welding guns. 2. High productivity achieved with

Sheet Metal Pneumatic Suspension Robotic Spot Welding Gun

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Brand: xinchang

Supply Ability & Additional Information

Supply Ability: 50sets/ Month

Packaging & Delivery

Selling Units:

Piece/Pieces



Pneumatic Servo Resistance Robot Spot Welding Gun with Electric Cylinder1



1. Pneumatic Spot Welding Robot operated suspended robotic welding guns.

2. High productivity achieved with rational design, reduced dimensions, high welding capacity.
3. High electric efficiency.Robotic Welding System
4. Reduced installation costs.
5. Gyro suspension on sealed bearings togeher with a spring balancer guarantees accurate manoeuvrability at any degree.
6. Large selection of arms, enabling to set-up the welder according to the work exigencies.
7. Chrome-copper electrode-holders for heavy duty and long life, designed for both straight and angled assembling.
8. Adjustable electrodes distance, adjustable short working stroke for heavy duty.
9. Temporary extra stroke to reach the areas to be welded.
10. Long working stroke for welding reinforcement ribs and hard-to-reach areas.
11. Water-cooled transformer with epoxy resin-coated windings
12. Water-cooled arms, electrode-holders and electrodes.
13.Synchronous SCR contactor insulated from cooling circuit with thermostat protection.
14. Aluminium alloy cylinder & chrome-plated shaft for heavy duty & long service life.

Items Model	Rated Capacity	Input Volts	Secondary Volts	Max Short circuit current	Welding Stroke	Auxiliary Stroke	Electrodes Pressure force	Standard Arm length	Standard Distance between two arm	Cooling Water flow	Welding Capacity (mild steel)	Wight	Duty Cycle
Items Model	KVA	V/HZ	V	KA	mm	mm	N	mm	mm	L/Min	mm	Kg	%
DN2-25-X	25	380/50	5	15	16	70	2500	250	110	4	3+3	55	50
DN2-30-X	30	380/50	5.6	16	20	100	3100	600	200	5	3+3	60	50
DN2-40-X	40	380/50	6.8	18	20	125	2400	800	200	5	4+4	65	50
DN2-25-C	25	380/50	5	15	16	70	2500	250	110	4	3+3	55	50
DN2-30-C	30	380/50	5.6	16	20	100	3100	600	200	5	3+3	60	50
DN2-40-C	40	380/50	6.8	18	20	125	2400	800	200	5	4+4	65	50

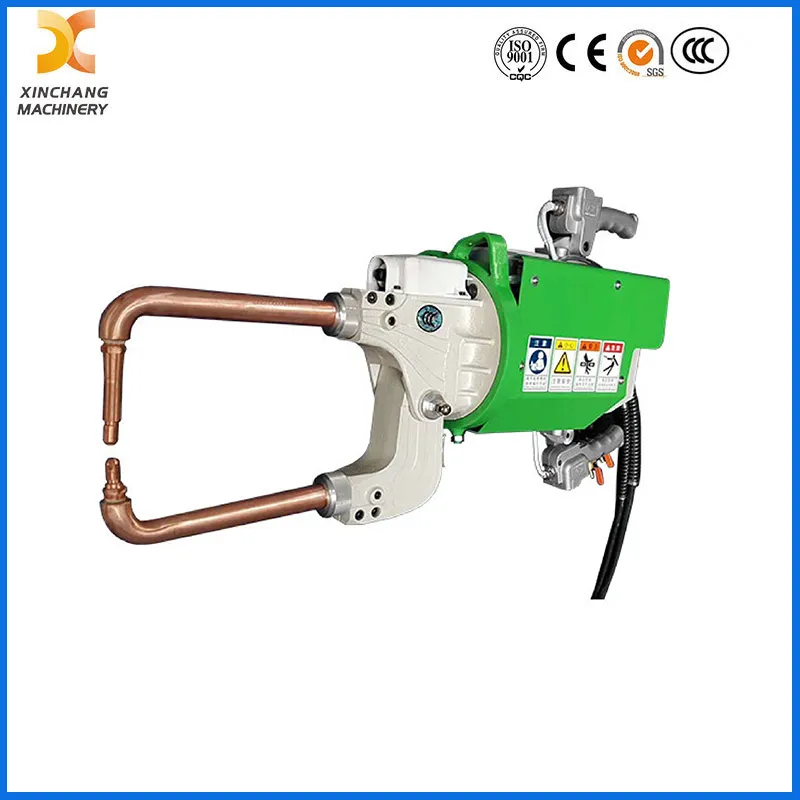

Portable Pneumatic C X Type Suspension Sheet Metal Hanging Spot Welding Gun
