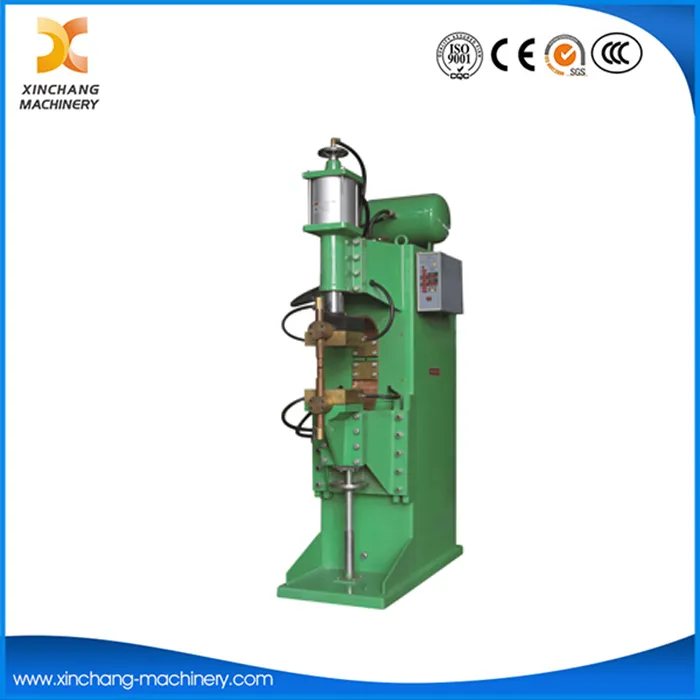

Name: Fast Energy-Saving Solenoid Valve Spot Welding Machine
Brand: Ningbo Xin Chang Machinery Co.,Ltd
Rating: 4.7 (38 reviews)

Fast Energy-Saving Solenoid Valve Spot Welding Machine

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Style: Fixed

Electrode Stroke: Vertical

Transmission: Pneumatic

Conductive Way: Both-Sided

Welding Spot Number: Single

Welding Machine: Spot Welder

Current: Alternating Current

Model: Dtn-25/40/80/100/150/200/300

Control Transformer: AC

Transport Package: Wooden Case

Specification: export standard spot welding machine

Trademark: Xinchang spot welding machine

Origin: Ningbo China

HS Code: 85152900

Production Capacity: Spot Welding Machine 200 Sets /Month

Customization: Available

Control: Semi-Automatic

Cooling Way: Water Cooling

Supply Ability & Additional Information

Supply Ability: Spot Welding Machine 200 Sets /Month

Packaging & Delivery

Selling Units:

Piece/Pieces



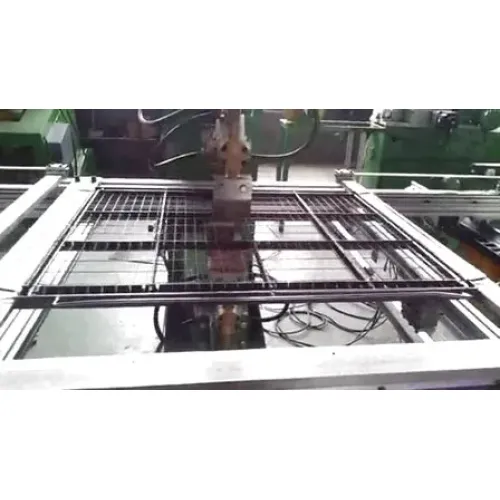

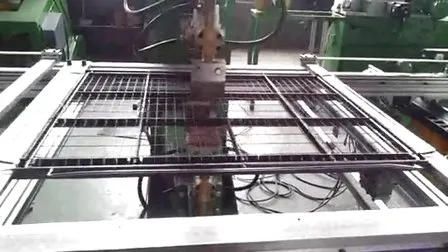

X Y Axis CNC Automatic Spot Welder Pneumatic Multiple Heads Spot Welding Machine1



Overview
Product Description
Product Parameters
Detailed Photos
Company Profile
FAQ

Basic Info.

Style

Fixed

Electrode Stroke

Vertical

Transmission

Pneumatic

Conductive Way

Both-Sided

Welding Spot Number

Single

Welding Machine

Spot Welder

Current

Alternating Current

Model

Dtn-25/40/80/100/150/200/300

Control Transformer

Transport Package

Wooden Case

Specification

export standard Spot Welding Machine

Trademark

Xinchang spot welding machine

Origin

Ningbo China

HS Code

85152900

Production Capacity

Spot Welding Machine 200 Sets /Month

Product Description

CCC Approved Automatic Projection Spot Welding Machine for Wire Mesh Method named for welders:
Spot(projection) welders series: DTN-P-1(2)-L
DTN: Pneumatic AC mains frequency spot(projection) welders
P: Rated capacity
1: Lower arm can not be adjustable; 2: Lower arm can be adjustable
L: Throat depth, namely arms length

Advantage & Feature:
1, Machine body of thick steel sheet, not easy to deformation
2, Secondary electric conduction parts is style of upper insulation, to avoid short current accident caused by Scrap iron or workpiece.
3, The electrodes of speed can be adjusted at random, to decrease strike or workpiece and noise.
4, Microcomputer control, accuracy and steady, Can store 15 sets welding schedules, to suit different specification products
5, Controller can automatically compensate current, to make welding steady. Some material can be preheat or temper.
6, Water cooling transformer: Use silicon sheets of 15000 gauss permeability to pile up. There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 20% duty cycle to ensure the requirement of long time welding, big output power. The useful lifetime is longer, noise is smaller, structure is more compact and reasonable.
7, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
8, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
9, Quality is stable, failure rate is low, therefore machine life is longer
10, It is suitable for metal wire, electrical appliances manufacturing, metal plate process, micro-electron etc.

Model Unit Item		DTN-25	DTN-40	DTN-80-1	DTN-100-1	DTN-150-1	DTN-200-1	DTN-80-2	DTN-100-2	DTN-150-2	DTN-200-2
Rated capacity	KVA	25	40	80	100	150	200	80	100	150	200
Primary volts.	V	380	380	380	380	380	380	380	380	380	380
Frequency	HZ	50	50	50	50	50	50	50	50	50	50
Max short circuit current	KA	15	18	28	33	38	43	28	33	38	43
Duty cycle	%	20	20	20	20	20	20	20	20	20	20
Max pressure	N	3000	3000	6000	6000	12000	12000	7900	7900	12000	12000
Operational stroke	MM	30	30	30	30	30	30	30	30	30	30
Electrode Stroke	MM	70	70	70	70	70	70	70	70	70	70
Arm length and distance	MM	350*220	350*220	350*250	350*250	350*270	350*270	400*300	400*300	400*300	400*300
Cooling water flux	L/min	3	3	4	4	6	6	4	4	6	6
Max weld capacity(steel)	MM	2+2	3+3	4+4	5+5	6+6	6+6	4+4	5+5	6+6	6+6

Energy Saving Low Cost Speed Faster Fast Solenoid Valve Spot Welding Machine

We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in Friction Welding Machine, Resistance Welding Machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.

Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.

Our main products are Heat exchanger equipment, Friction welding machine, spot welding machine, Projection Welding Machine, Butt Welding Machine, Seam Welding Machine, Multi Head Welding Machine For Wire Mesh, and other various special welding machine for metal connection in different industries.
