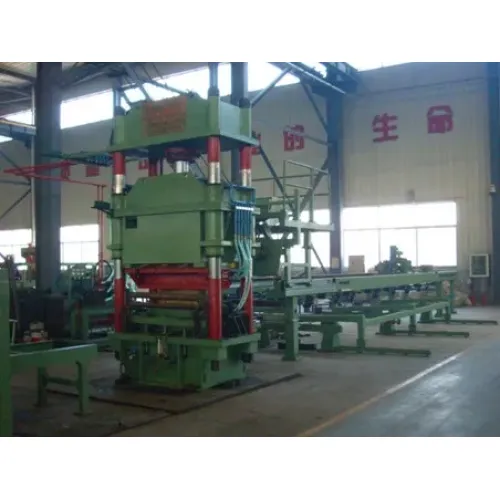

Grating Welding Production Line Steel Grating Welding Machine of CCC Certificate

Min. Order:1 Piece/Pieces

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Model NO.: GHJ

Style: Vertical

Electric Current: Inverter

Type: Press Welders

Current: Direct Current

Application: Steel Grating

Name: Steel Grating Welding Machine

Key: Welding Equipment

Transport Package: at Customer's Requrest

Specification: export standard

Trademark: xinchang

Origin: China

HS Code: 85152900

Production Capacity: 20sets/Year

Customization: Available

Cooling Way: Water Cooling

Control: Semi-Automatic

Supply Ability & Additional Information

Supply Ability: 20sets/Year

Packaging & Delivery

Selling Units:

Piece/Pieces

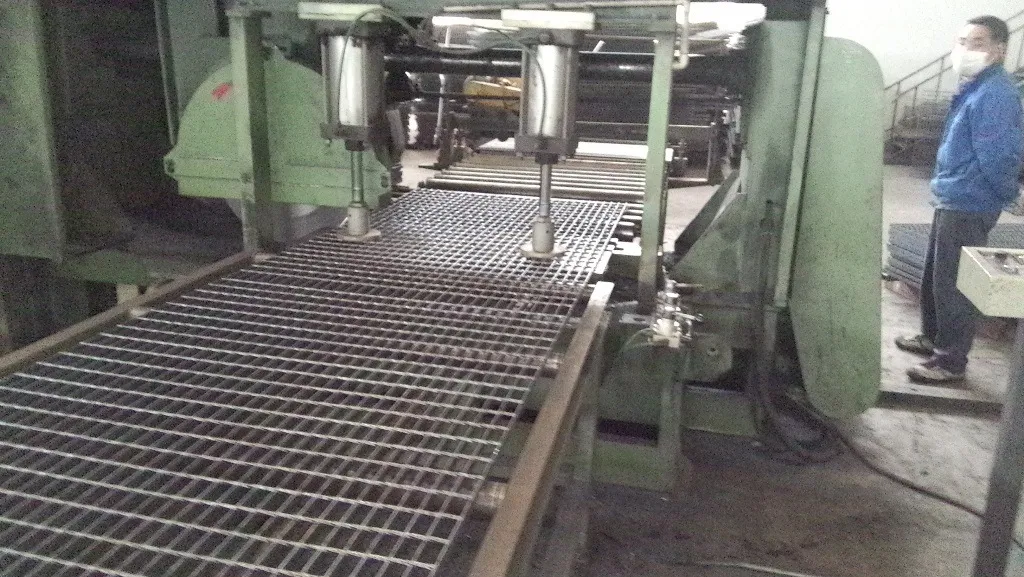

CCC Certificate Grating Welding Production Line Steel Grating Welding Machine

Design basis:

Steel grating max width & length:995mm &6000mm can be customized
Flat bar width(height): 20mm -60mm
Flat bar pitch: 30,40mm, can be customized.
Twisted bar pitch: 50, 100mm, can be customized.
Flat bar thickness: 2-6mm can customized
Twisted bar : 5x5mm, 6x6mm
The size from end of flat bar to first cross bar is settable, Inclusive of all necessary assemblies from Bearing bar feeder to finish grating conveyer on output side.

Description:
The machine is to finish flat bars and square twisted steel welding automatic machine.
It is single phase AC input, the power grid will be not balance, the welding current is AC.

1,Easy to operate and display clearly. By means of terminal man-machine interaction can achieve functions following: real-time monitor machine's performance; set line rod pitch and number; record numbers of work-piece.
2,Transformer is made by superimposing silicon steel sheets which are high quality and imported. Transformer has internal water cooling, casting by epoxy resin and has the function for warning of over-temperature.
3, There is function for fault self-monitor, displaying on the LED screen.
4, Very strong protecting functions: non-water and insufficient water pressure, transformer over-heat SCR over-heat, over-big current and over-load.

Function:

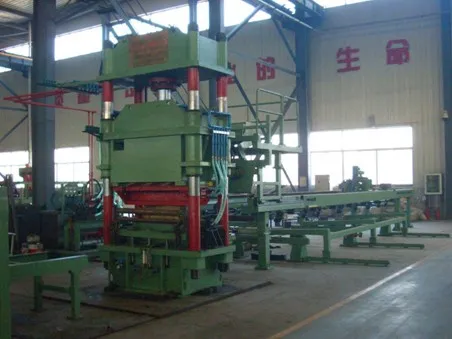

1, Press welder equipped with 4 column hydraulic machine, Max pressure 160 ton and adjustable
2, welding power source is DC
3, Twisted bars are ordered position by manual but feed by automatic
4, Flat bars are located by manual but feed by automatic
5, Steel grating is transported automatically
6, Weld two bars for each time automatically, pitch of twisted bars can be controlled automatically.
7, Deformation for longitudinal welding is corrected automatically.
8, Operation station is with both manual and Automatic type.
9, Electrical cabinet is with display device for current and voltage.
10, Welding parameters can be set and saved, don't lose even if outage. Parameters is displayed as digit.

Model	GYH-630-2A-1	GYH-800-2A-1	GYH-1000-2A-2	GYH-1600-2D
Power source	AC	Inveter AC	Inveter AC	DC
Welding capacity	630kVA	800kVA	1000kVA	1600kVA
Input voltage	3 phase 380V/50Hz	3 phase 380V/50Hz	3 phase 380V/50Hz	3 phase 380V/50Hz
Steel grid plate length	6000mm(customized)	6000mm(customized)	6000mm(customized)	6000mm(customized)
Steel grid plate width	1000mm(customized)	1000mm(customized)	1000mm(customized)	1000mm(customized)
Flat bars center distance	30,40mm(customized)	30,40mm(customized)	30,40mm(customized)	30,40mm(customized)
Maximum touch area of each twisted bar with flat steel	800mm2	1000mm2	1250mm2	2000mm2
allowable width of flat steel	20--60mm	20--60mm	20--60mm	25--75mm
allowable thickness of flat steel	2--4mm	2--5mm	2--6mm	3--7mm
twisted bars	5×5,6×6	5×5,6×6	5×5,6×6	5×5--8×8
Function of device	Single cylinder with four column	Single cylinder with four column	Single cylinder with four column	Single cylinder with four column
twisted bar number for each welding process	2	2	2	2
Maximum pressure of welding machine	75T	75T	100T	160T
Feed mode of loading flat steel	Automatic dropping	Automatic dropping	Automatic dropping	Automatic dropping
Feed mode of twisted bars	Manual align, automatically feed-in	Manual align automatically feed-in	Manual align automatically feed-in	Manual align automatically feed-in
Stepping way of welding steel grid plate	Reciprocating pulling	Reciprocating pulling	Pulling all the way	Pulling all the way
