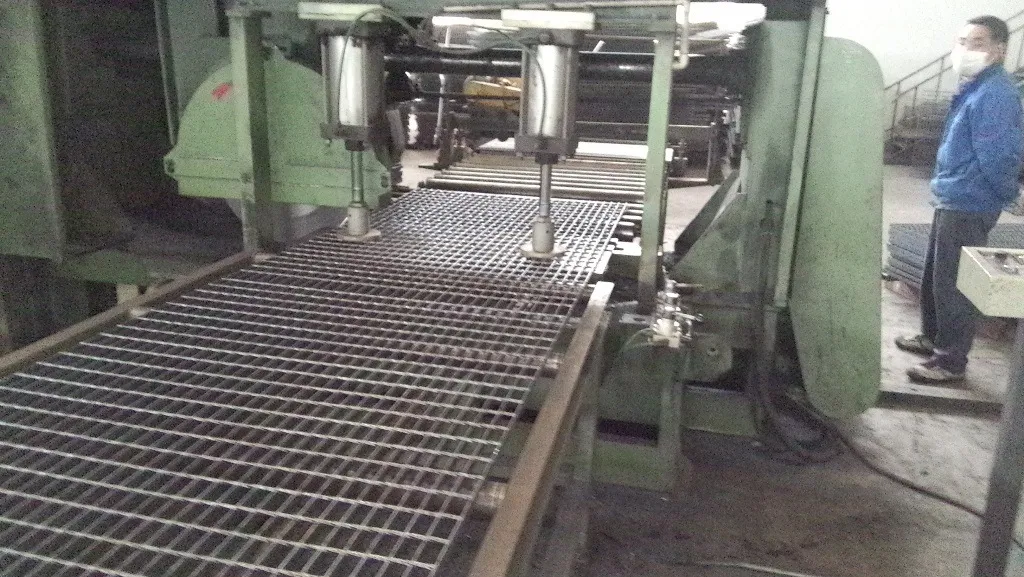

Easy Operating Steel Grating Lattice Forging Welding Machine

_{^{Steel grating max width & length:995mm &6000mm can be customized
Flat bar width(height): 20mm -60mm
Flat bar pitch: 30,40mm, can be customized.
Twisted bar pitch: 50, 100mm, can be customized.
Flat bar thickness: 2-6mm can customized
Twisted bar : 5x5mm, 6x6mm
The size from end of flat bar to first cross bar is settable, Inclusive of all necessary assemblies from Bearing bar feeder to finish grating conveyer on output side.}}

This automatic unit is specially developed for finish welding of flat bars and square twisted steel, serving as a high-efficiency Steel Grating Welding Machine. It applies single phase AC input, which may cause unbalanced power grid operation, and the welding current is supplied in AC mode.

1.It features user-friendly operation and clear visual display. Through terminal human-machine interaction, this intelligent Automatic Welding Machine fulfills multiple practical functions, including real-time machine performance monitoring, adjustment of line rod pitch and quantity, and automatic workpiece quantity recording.

2.The internal transformer is stacked with high-quality imported silicon steel sheets, constructed with internal water cooling and epoxy resin casting structure, and fitted with an over-temperature warning function.

3.Built-in fault self-monitoring system is available, with all fault information directly shown on the LED screen.

4.It is equipped with complete protective mechanisms. This robust Customized Automation Welding Equipment effectively guards against water shortage, insufficient water pressure, transformer over-heat, SCR over-heat, excessive current and overload issues.

Applications: Ideal for platform production and processing in petroleum, chemical industry, electronics, quay, municipal engineering, environmental protection, national defense and other industrial sectors.

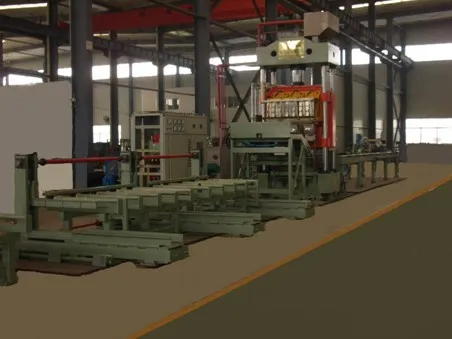

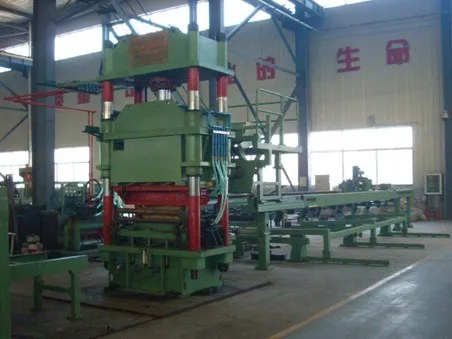

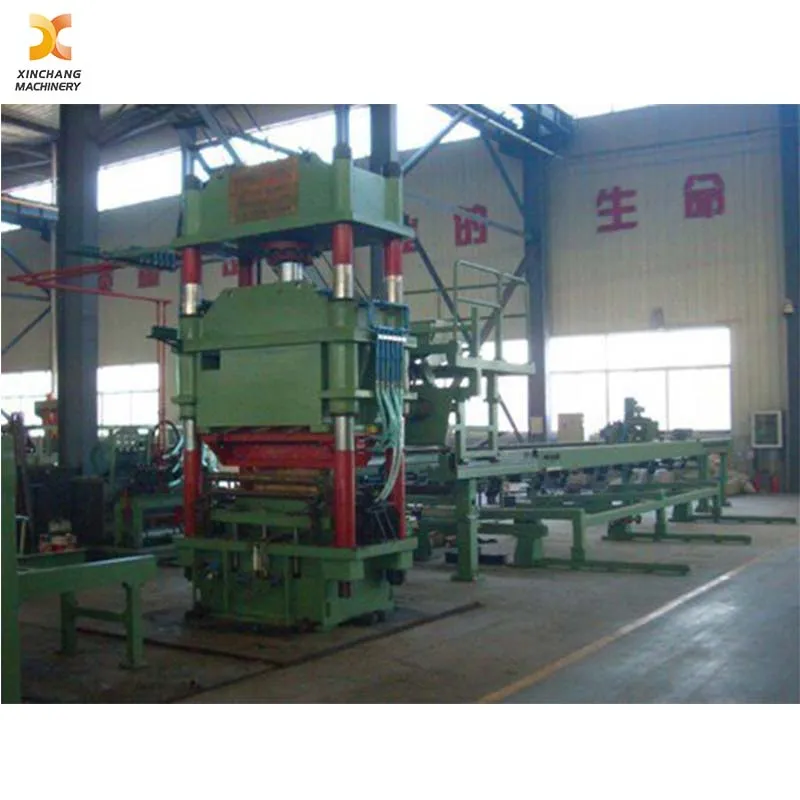

^{_{1, Press welder equipped with 4 column hydraulic machine, Max pressure 160 ton and adjustable
2, welding power source is DC
3, Twisted bars are ordered position by manual but feed by automatic
4, Flat bars are located by manual but feed by automatic
5, Steel grating is transported automatically
6, Weld two bars for each time automatically, pitch of twisted bars can be controlled automatically.
7, Deformation for longitudinal welding is corrected automatically.
8, Operation station is with both manual and Automatic Type.
9, Electrical cabinet is with display device for current and voltage.
10, Welding parameters can be set and saved, don't lose even if outage. Parameters is displayed as digit.}}
