Automatic Press Welder Steel Grating Welding Machine

_{^{Steel grating max width & length:995mm &6000mm can be customized
Flat bar width(height): 20mm -60mm
Flat bar pitch: 30,40mm, can be customized.
Twisted bar pitch: 50, 100mm, can be customized.
Flat bar thickness: 2-6mm can customized
Twisted bar : 5x5mm, 6x6mm
The size from end of flat bar to first cross bar is settable, Inclusive of all necessary assemblies from Bearing bar feeder to finish grating conveyer on output side.}}

This professional Steel Grating Welding Machine is engineered for finishing flat bars and square twisted steel welding tasks as a fully automatic welding solution.

It adopts single phase AC input, in which case the power grid will be not balance, and the welding current adopts AC output.

1.Easy to operate with clear display vision. By means of terminal man-machine interaction, this Automatic Welding Machine can achieve the following practical functions: real-time monitor machine's performance; set line rod pitch and number; record numbers of work-piece.

2.The transformer is assembled with superimposed high-quality imported silicon steel sheets. Equipped with internal water cooling structure and epoxy resin integral casting, it also comes with an over-temperature early warning function.

3.It supports intelligent fault self-monitoring, with all abnormal prompts visually displayed on the LED screen.

4.Equipped with comprehensive safety protection configurations, this Customized Automation Welding Equipment delivers reliable safeguards against non-water state, insufficient water pressure, transformer over-heat, SCR over-heat, over-big current and over-load operation.

Applications: Widely applicable to platform fabrication in multiple industries such as petroleum, chemical industry, electron, quay, municipal administration, environmental protection, national defence and other related fields.

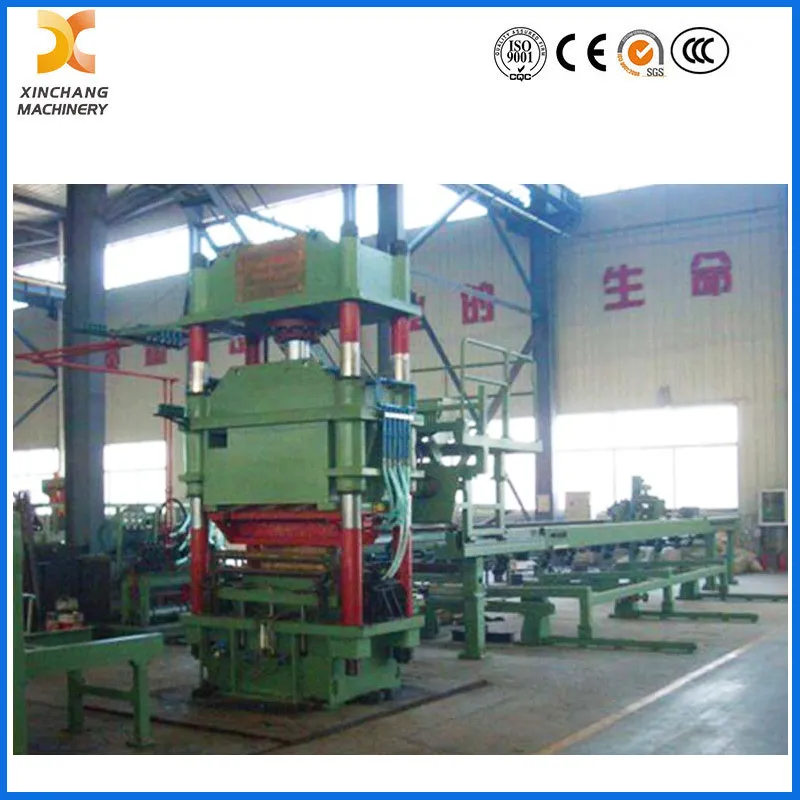

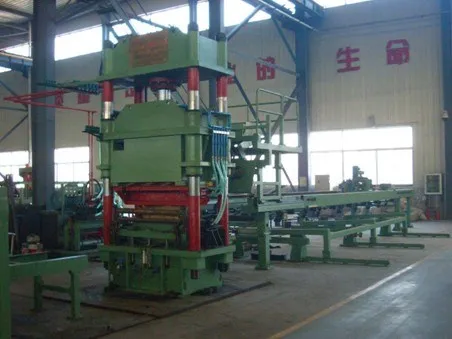

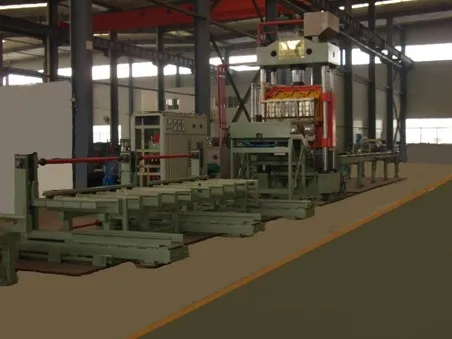

^{_{1, Press welder equipped with 4 column hydraulic machine, Max pressure 160 ton and adjustable
2, welding power source is DC
3, Twisted bars are ordered position by manual but feed by automatic
4, Flat bars are located by manual but feed by automatic

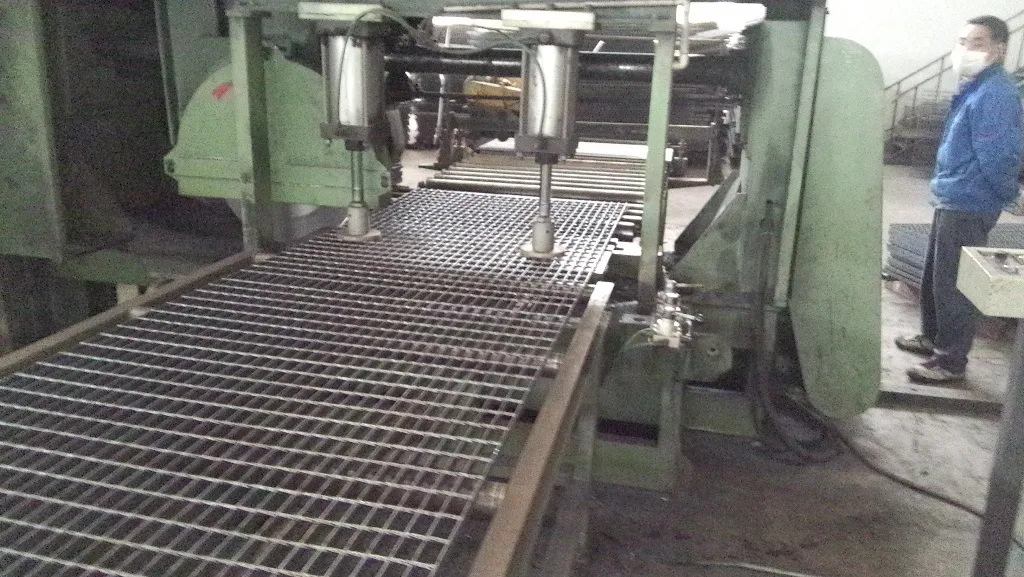

5, Steel grating is transported automatically

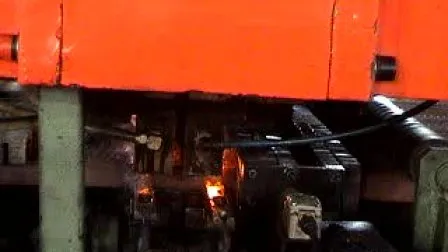

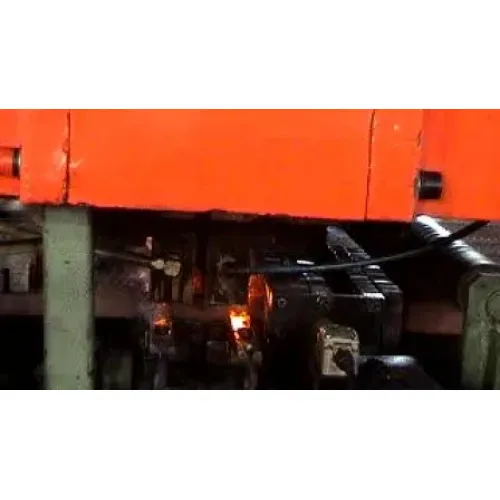

6, Weld two bars for each time automatically, pitch of twisted bars can be controlled automatically.
7, Deformation for longitudinal welding is corrected automatically.
8, Operation station is with both manual and Automatic Type.
9, Electrical cabinet is with display device for current and voltage.
10, Welding parameters can be set and saved, don't lose even if outage. Parameters is displayed as digit.}}
